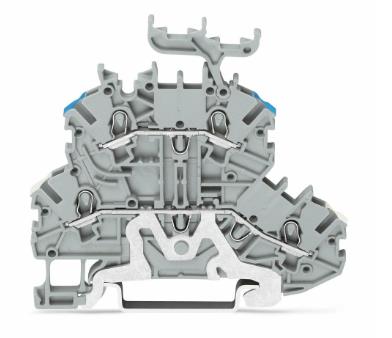

WAGO Item no. 2000-2248 Double-deck terminal block; Shield/through terminal block; 1 mm²; with marker carrier; gray

WAGO 3-conductor ground terminal block; 1.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 1,50 mm²; green-yellow 279-687

Product Name : WAGO Item no. 2000-2248 Double-deck terminal block; Shield/through terminal block; 1 mm²; with marker carrier; gray

Directions

Electrical data

Ratings per IEC/EN

Ratings per IEC/EN 60947-7-1

Nominal voltage (III/3) 500V

Rated impulse voltage (III/3) 6kV

Rated current 16A

Legend (ratings) (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings per IEC/EN 2

Rated current 2 18A

Ratings per UL

Approvals per UL 1059

Rated voltage UL (Use Group B) 300V

Rated current UL (Use Group B) 15A

Rated voltage UL (Use Group C) 300V

Rated current UL (Use Group C) 15A

Ratings per CSA

Rated voltage CSA (Use Group B) 600V

Rated current CSA (Use Group B) 10A

Rated voltage CSA (Use Group C) 600V

Rated current CSA (Use Group C) 10A

Power loss

Power loss, per pole (potential) 0.868W

Rated current IN for specified power loss 13.5A

Resistance value for specified, current-dependent power loss 0.002Ω
