Home > Products > WAGO > WAGO Item no. 2002-1681 2-conductor fuse terminal block; for mini-automotive blade-style fuses; per DIN 7258-3f, ISO 8820-3; with test option; without blown fuse indication; 2.5 mm²; 2,50 mm²; gray

WAGO Item no. 2002-1681 2-conductor fuse terminal block; for mini-automotive blade-style fuses; per DIN 7258-3f, ISO 8820-3; with test option; without blown fuse indication; 2.5 mm²; 2,50 mm²; gray

WAGO 3-conductor ground terminal block; 1.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 1,50 mm²; green-yellow 279-687

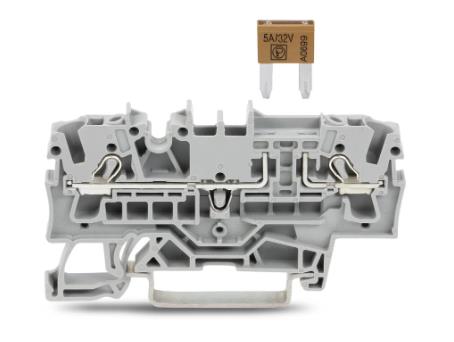

Product Name : WAGO Item no. 2002-1681 2-conductor fuse terminal block; for mini-automotive blade-style fuses; per DIN 7258-3f, ISO 8820-3; with test option; without blown fuse indication; 2.5 mm²; 2,50 mm²; gray

Directions

Electrical data

Fuse receptacle pluggable

Ratings per IEC/EN

Ratings per IEC/EN 60947-7-3

Ratings (note) Electrical ratings are given by the fuse.

Nominal voltage (III/3) 400V

Rated impulse voltage (III/3) 6kV

Rated current 10A

Ratings (note) 2 Blade-style fuses: Observe touch-proof protection for 42 V and higher voltages!

10 A (individual arrangement)

5 A (block arrangement)

Legend (ratings) (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings per UL

Approvals per UL 1059

Rated voltage UL (Use Group B) 300V

Rated current UL (Use Group B) 10A

Rated voltage UL (Use Group C) 300V

Rated current UL (Use Group C) 10A

Rated voltage UL (Use Group D) 300V

Rated current UL (Use Group D) 10A

Ratings per CSA

Rated voltage CSA (Use Group B) 300V

Rated current CSA (Use Group B) 10A

Rated voltage CSA (Use Group C) 300V

Rated current CSA (Use Group C) 10A
