Home > Products > WAGO > WAGO Item no. 2002-1871 4-conductor disconnect/test terminal block; with test option; orange disconnect link; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; 2,50 mm²; gray

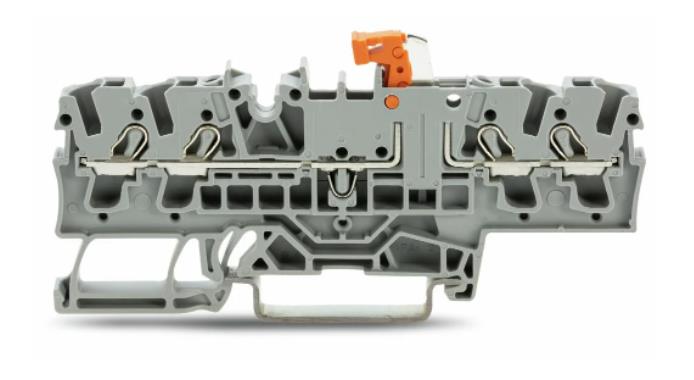

WAGO Item no. 2002-1871 4-conductor disconnect/test terminal block; with test option; orange disconnect link; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; 2,50 mm²; gray

WAGO 3-conductor ground terminal block; 1.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 1,50 mm²; green-yellow 279-687

Product Name : WAGO Item no. 2002-1871 4-conductor disconnect/test terminal block; with test option; orange disconnect link; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; 2,50 mm²; gray

Directions

Electrical data

Ratings per IEC/EN

Ratings per IEC/EN 60947-7-1

Nominal voltage (III/3) 400V

Rated impulse voltage (III/3) 6kV

Rated current 16A

Legend (ratings) (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings per UL

Approvals per UL 1059

Rated voltage UL (Use Group B) 300V

Rated current UL (Use Group B) 15A

Rated voltage UL (Use Group C) 300V

Rated current UL (Use Group C) 15A

Ratings per CSA

Approvals per CSA 22.2 No 158

Rated voltage CSA (Use Group B) 600V

Rated current CSA (Use Group B) 15A

Rated voltage CSA (Use Group C) 600V

Rated current CSA (Use Group C) 15A

Ex information

Reference hazardous areas See Downloads – Documentation – Additional Information: Technical Section; Technical explanations

Ratings per ATEX: KIWA 17 ATEX 0030 U / IECEx: KIWA 17.0014U (Ex ec IIC Gc)

Rated voltage EN (Ex e II) 440V

Rated current (Ex e II) 17A

Power loss

Power loss, per pole (potential) 0.341W

Rated current IN for specified power loss 16A

Resistance value for specified, current-dependent power loss 0.001Ω
