WAGO Item no. 2002-2611 Double-deck fuse terminal block; with pivoting fuse holder; Through/Fuse terminal block; for 5 x 20 mm miniature metric fuse; L/L; without blown fuse indication; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; 2,50 mm²; gray

WAGO 3-conductor ground terminal block; 1.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 1,50 mm²; green-yellow 279-687

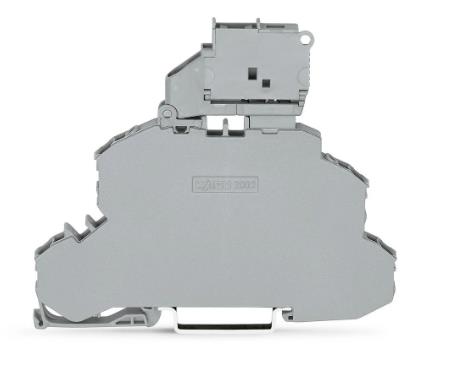

Product Name : WAGO Item no. 2002-2611 Double-deck fuse terminal block; with pivoting fuse holder; Through/Fuse terminal block; for 5 x 20 mm miniature metric fuse; L/L; without blown fuse indication; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; 2,50 mm²; gray

Directions

Electrical data

Fuse receptacle pivoting

Fuse type Cylindrical fuse; 5 x 20 mm

Ratings per IEC/EN

Ratings per IEC/EN 60947-7-3

Ratings (note) Electrical ratings are given by the fuse.

Nominal voltage (III/3) 250V

Rated impulse voltage (III/3) 6kV

Rated current 6.3A

Operation status indicator none

Legend (ratings) (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings per UL

Approvals per UL 1059

Rated voltage UL (Use Group B) 300V

Rated current UL (Use Group B) 6.3A

Rated voltage UL (Use Group C) 300V

Rated current UL (Use Group C) 6.3A

Ratings per CSA

Approvals per CSA 22.2 No 158

Rated voltage CSA (Use Group B) 600V

Rated current CSA (Use Group B) 6.3A

Rated voltage CSA (Use Group C) 600V

Rated current CSA (Use Group C) 6.3A

Ex information

Reference hazardous areas See Downloads – Documentation – Additional Information: Technical Section; Technical explanations

Ratings per ATEX: KIWA 17 ATEX 0030 U / IECEx: KIWA 17.0014U (Ex ec IIC Gc)

Rated voltage EN (Ex e II) 275V

Rated current (Ex e II) 6.3A
