Part No: 690-432450D0-B00P00-A400 (690PD/0220/400/0011/UK/0/0/0/0/B0/0/0)
Phase : Three Phase (415V)
Supply Voltage : 400-460V
Power Rating : 22.0KW
Current Rating : 45.0A
Filter : Not Fitted
Keypad : Fitted
Brake Switch : Fitted
System Board : Not Fitted
Auxiliary Supply : No Auxiliary Supply
Description:

[690-]  : AC690+ Series AC Drive

[43]  : 400/460VAC 3-phase input

[2450D]: 22.0kW / 45.0A Constant Torque Rating (30kW / 59A Quad) - Frame 'D'

[0-]      : No Auxiliary Supply Option

[B]      : Brake Switch Fitted

[0]      : No Filter Option Fitted

[0]      : No System Board Option Fitted

[P]       : Panel Mounted

[00-]   : No Special Option

[A]     : English (50Hz) Destination

[4]     : 6901 Keypad Option Fitted

[0]     : No Speed Feedback Option

[0]     : No Communications Option


Old Part Number [690PD/0220/400/0011/UK/0/0/0/0/B0/0/0]

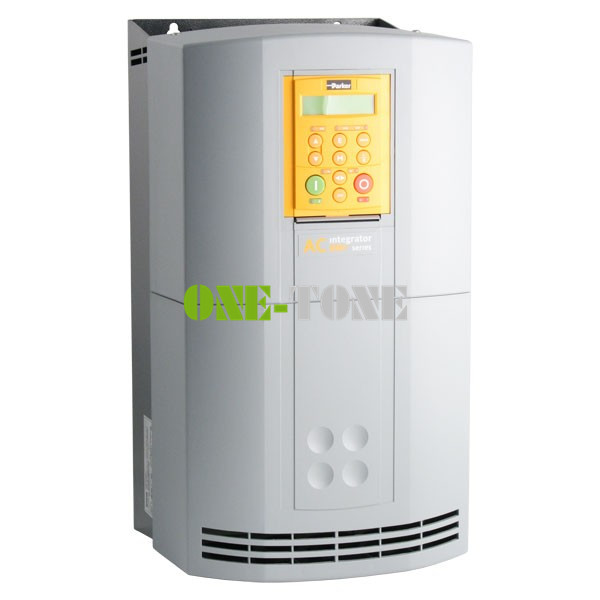

The AC690+ Series is a single range of AC drives designed to meet the requirements of all variable speed applications from simple single motor speed control through to the most sophisticated integrated multi-drive systems. The heart of the AC690+ is a highly advanced 32-bit microprocessor based motor control model. This provides an exceptional dynamic performance platform to which can be added a host of communications and control options, enabling you to tailor the drives to meet your exact requirements. The AC690+ is available in 380-500V 3-phase 0.75 to 1000kW and 220V-240V 0.75 to 55kW.
