Product Description:

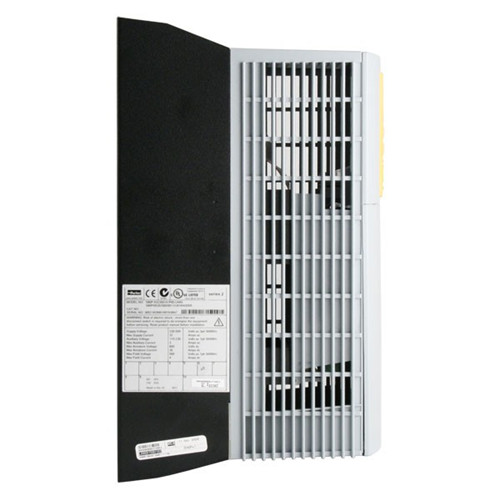

The DC590+ Series DC Digital Drive is designed for use in a suitable enclosure, with associated control equipment. The unit accepts a variety of standard three-phase ac supply voltages depending upon the model, and is suitable for the powering of DC shunt field and permanent magnet motors, providing controlled dc output voltage and current for armature and field.

All units are designed for simple and economical panel mounting using keyhole slots. Plug-in control connectors simplify the fitting and removal of the unit to the panel.

6901 Keypad Module Fitted, encoder feedback or comms options. Simple to set-up in Digital, fully-isolated Four Quadrant form.

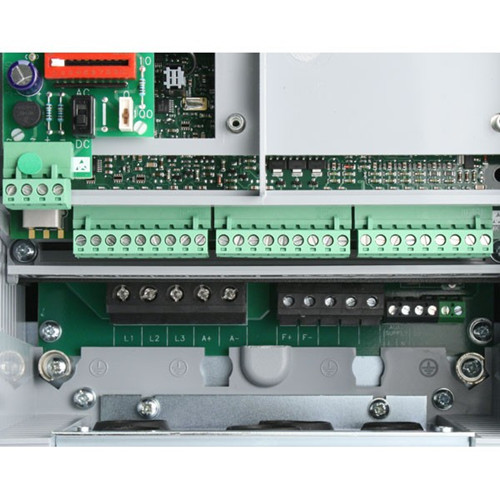

Terminals include:- 5 x Analogue Inputs (4 x Configurable). 3 x Analogue Outputs (2 x Configurable). Tacho input (or internal AVF) Feedback. 9 x Digital inputs - 5 are Configurable including two as encoder inputs for a second or line encoder. 3 x Digital Outputs (all Configurable). + & - 10V for Potentiometers.

Rated at 40C Ambient.

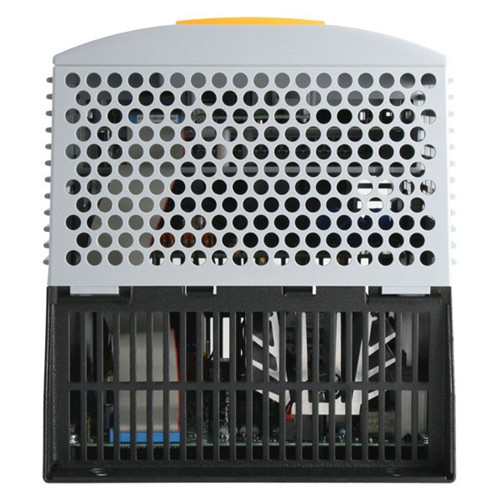

Ventilation space above - 100mm. Ventilation space below - 100mm. Ventilation space at sides - 0mm. Heat Loss at max output - 117W. Panel mount with M6 screw fixings on 360 x 140mm centres. Its previous product code was 590P-0035-220-0010-UK-AN-0-0-0. Replaces:- SSD and Eurotherm Drives 590C-0035 digital, 590A-0035 and 545-0350 analogue products.

Product Dimensions: 200mm Wide x 220mm Deep x 375mm High. Weight is 6.4kg

Packaging Dimensions: 50cm Length, 30cm Wide, 36cm Height Weight is 6.54Kgs

Details

590P-23215010-P00-U4A0 | 590 Series Regen Digital Drive - 3PH, 110-220v - 15A, Frame 1 - Universal 115v-230v - Panel Mounting - No Special Options - English (50/60Hz) - 6901 Keypad Fitted - Analog Tacho - None

The Range: The 590P range is a 4 Quadrant Parker SSD Drive. The 591P range is a 2 Quadrant Parker SSD Drive.

Frame Sizes: Below are the power ratings for the different options and frame sizes. TOF = Top of Frame. 590P/591P 3PH, 4Q, 110-220V Supply, Universal Aux

Frame 1 (15, 35) A [TOF: 590P-23235010-P00-U4V0 / 591P-23235010-P00-U4V0] Frame 2 (40, 70, 110, 165) A [TOF: 590P-23316520-P00-U4V0 / 591P-23316520-P00-U4V0] 3PH, 4Q, 110-220V Supply, 115V Aux

Frame 3 (180, 270) A [TOF: 590P-23327031-P00-U4V0 / 591P-23327031-P00-U4V0] Frame 4 (380, 500, 725, 830) A [TOF: 590P-23383041-P00-U4V0 / 591P-23383041-P00-U4V0] Frame 5 (1580) A [TOF: 590P-23415851-P00-U4V0 / 591P-23415851-P00-U4V0] 3PH, 4Q, 110-220V Supply, 230V Aux

Frame 3 (180, 270) A [TOF: 590P-23327032-P00-U4V0 / 591P-23327032-P00-U4V0] Frame 4 (380, 500, 725, 830) A [TOF: 590P-23383042-P00-U4V0 / 591P-23383042-P00-U4V0] Frame 5 (1580) A [TOF: 590P-23415852-P00-U4V0 / 590P-23415852-P00-U4V0] 3PH, 4Q, 220-500V Supply, Universal Aux

Frame 1 (15, 35) A [TOF: 590P-53235010-P00-U4V0 / 591P-53235010-P00-U4V0] Frame 2 (40, 70, 110, 165) A [TOF: 590P-53316520-P00-U4V0 / 591P-53316520-P00-U4V0] Frame 6 (1250, 1600, 1950) A [TOF: 590P-53419560-P00-U4V0 / 591P-53419560-P00-U4V0] Frame H (1200, 1700, 2200, 2700) A [TOF: 590P-534270H0-P00-U4V0 / 591P-534270H0-P00-U4V0] 3PH, 4Q, 220-500V Supply, 115V Aux

Frame 3 (180, 270) A [TOF: 590P-53327031-P00-U4V0 / 591P-53327031-P00-U4V0] Frame 4 (380, 500, 725, 830) A [TOF: 590P-53383041-P00-U4V0 / 591P-53383041-P00-U4V0] Frame 5 (1580) A [TOF: 590P-53415851-P00-U4V0 / 591P-53415851-P00-U4V0] 3PH, 4Q, 220-500V Supply, 230V Aux

Frame 3 (180, 270) A [TOF: 590P-53327032-P00-U4V0 / 591P-53327032-P00-U4V0] Frame 4 (380, 500, 725, 830) A [TOF: 590P-53383042-P00-U4V0 / 591P-53383042-P00-U4V0] Frame 5 (1580) A [TOF: 590P-53415852-P00-U4V0 / 591P-53415852-P00-U4V0]

3PH, 4Q, 500-600V Supply, 115V Aux

Frame 4 (380, 500, 725, 830) A [TOF: 590P-63383041-P00-U4V0 / 591P-63383041-P00-U4V0] Frame 5 (1580) A [TOF: 590P-63415851-P00-U4V0 / 591P-63415851-P00-U4V0] 3PH, 4Q, 500-600V Supply, 230V Aux

Frame 4 (380, 500, 725, 830) A [TOF: 590P-63383042-P00-U4V0 / 591P-63383042-P00-U4V0] Frame 5 (1580) A [TOF: 590P-63415852-P00-U4V0 / 591P-63415852-P00-U4V0] 3PH, 4Q, 500-690V Supply, Universal Aux Frame 6 (1250, 1600, 1950) A [TOF: 590P-73419560-P00-U4V0 / 591P-73419560-P00-U4V0] Frame H (1200, 1700, 2200, 2700) A [TOF: 590P-734270H0-P00-U4V0 / 591P-734270H0-P00-U4V0]

Frame Dimensions: Frame 1 (200(W) x 375(H) x 220(D) mm) – approx. 6.4kg Frame 2 (200(W) x 434(H) x 292(D) mm) – approx. 10.5kg Frame 3 (180A) (250(W) x 485(H) x 234(D) mm) – approx. 20kg Frame 3 (270A) (300(W) x 485(H) x 234(D) mm) – approx. 20kg Frame 4 (253(W) x 700(H) x 358(D) mm) – approx. 44kg Frame 5 (506(W) x 700(H) x 358(D) mm) – approx. 90kg Frame 6 (686(W) x 715(H) x 378(D) mm) – approx. 110kg Frame H (850(W) x 956(H) x 417(D) mm) – approx. 270kg

Options: There are a number of language options available for each drive. All drives must now be sold with Keypads. There are also a number of purchasable additional options listed below: Note: the last block of the part number contains 4 digits, the last 3 of which denote the purchasable options. These will be referred to as option X, Y, and Z (XYZ).

Option X 0 - No Keypad 4 - 6901 Keypad [6901-00-G]

Option Y A - Analog Tacho [AH500935U001-2] G - Glass Fiberoptic Encoder [5901/1] P - Plastic Fiberoptic Encoder [5701/1] V - Armature Voltage [Fitted as standard] W - Wire-ended Encoder [AH387775U001-1]

Option Z 0 - None C - ControlNet [6053-CNET-00-G] D - DeviceNet [6055-DNET-00] E - Ethernet [6055-ENET-00] L - Link [6055-LINK-00] M - ModBus+ [6055-MBP-00] N - CanOpen [6055-CAN-00] P - Profibus [6055-PROF-00] R - RS485 / RS422 [6055-EI00-00]

Additional Options A - Airflow Kit [LA466717U001-1]

Features

Regen Type:4Q

Open Loop (V/Hz):No

Standard Comms:RS485 ASCII / BINARY

Common Supply:No

Ingress Protection Code:IP20

Supply Input:3PH, 110 / 220V

Closed-Loop Vector:No

EMC Filter:No

Output:NA

Permanent Magnet AC:No

Servomotor:No

Mounting:Panel Mount

Option Comms 2:No

Drive Type:DC Converter Drives

Sensorless Vector:No

Power / Current:15A

Brand:Parker Hannifin

Active Front End:No

Option Comms 1:No

Manufacturers Series:590P
