WAGO 2002-2431 TOPJOB S 4-conductor double deck terminal block; Through/through terminal block; L/L; with marker carrier; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP; 2,50 mm²; gray

WAGO 3-conductor ground terminal block; 1.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 1,50 mm²; green-yellow 279-687

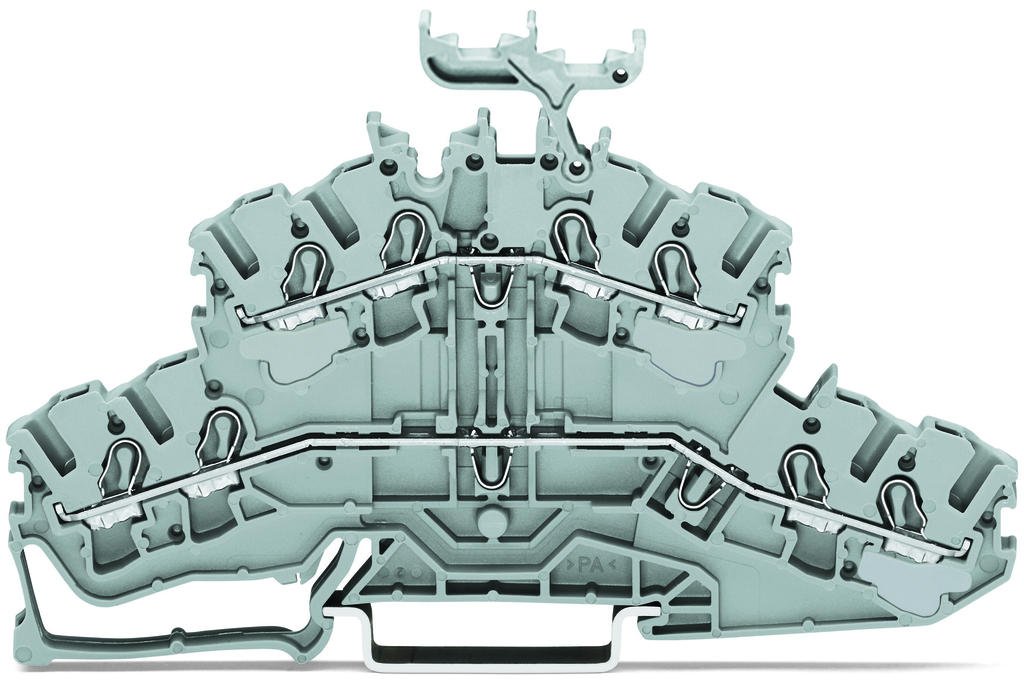

Product Name : WAGO 2002-2431 TOPJOB S 4-conductor double deck terminal block; Through/through terminal block; L/L; with marker carrier; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP; 2,50 mm²; gray

Directions

Electrical data

Ratings per IEC/EN

Ratings perIEC/EN 60947-7-1

Nominal voltage (III/3)800V

Rated surge voltage (III/3)8kV

Rated current24A

Rated current 228A

Ratings per UL

Approvals perUL 1059

Rated voltage UL (Use Group B)600V

Rated current UL (Use Group B)20A

Rated voltage UL (Use Group C)600V

Rated current UL (Use Group C)20A

Ratings per CSA

Approvals perC22.2 No 158

Rated voltage CSA (Use Group B)600V

Rated current CSA (Use Group B)20A

Rated voltage CSA (Use Group C)600V

Rated current CSA (Use Group C)20A
