Electrical data

Ratings per IEC/EN

Ratings per IEC/EN 60947-7-2

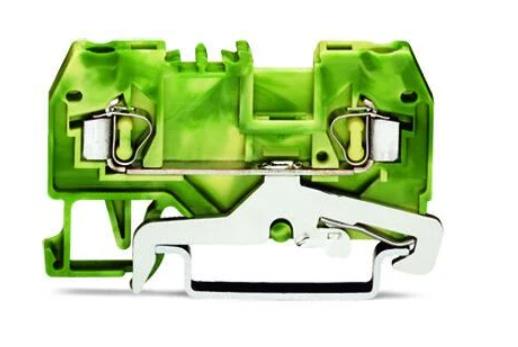

Connection data

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Connection 1

Connection technology CAGE CLAMP®

Actuation type Operating tool

Connectable conductor materials Copper

Aluminum

Connectable conductor materials (note) Terminating Aluminum Conductors

WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste 249-130 is used for termination.

“Alu-Plus” Contact Paste Advantages:

Automatically destroys the oxide film during clamping.

Prevents fresh oxidation at the clamping point.

Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).

Provides long-term protection against corrosion.

Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, aluminum conductors must first be cleaned with a blade and then immediately be inserted into the clamping units filled with “Alu-Plus” Contact Paste.

It is also possible to apply WAGO “Alu-Plus” additionally on the whole surface of the aluminum conductor before termination.

Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::

2.5 mm² = 16 A

4 mm² = 22 A

Solid conductor 0.08 … 2.5 mm² / 28 … 12 AWG

Fine-stranded conductor 0.08 … 2.5 mm² / 28 … 12 AWG

Note (conductor cross-section) 12 AWG: THHN, THWN

Strip length 8 … 9 mm / 0.31 … 0.35 inches

Wiring direction Front-entry wiring
