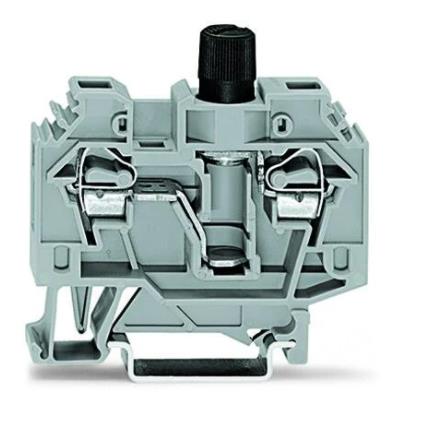

Electrical data

Fuse receptacle screwed

Fuse type Cylindrical fuse; ¼" x 1¼"

Power loss (max.) Pl (max.) (note) When selecting glass cartridge fuses, make sure that the maximum power loss listed below is not exceeded. The power loss is determined according to IEC or EN 60947-7-3/VDE 0611-6 at 23°C. The temperature rise of the terminal block must be checked according to their application and mounting. Higher ambient temperatures represent an additional impact on miniature fuses. Therefore, in such applications, the rated current must be reduced if necessary. More details are available from the manufacturers.

Power loss Pl max. overload and short-circuit protection (individual arrangement) 2.5W

Power loss Pl max. overload and short-circuit protection (group arrangement) 2.5W

Power loss Pl max. short-circuit protection (group arrangement) 4W

Ratings per IEC/EN

Nominal voltage (III/3) 500V

Rated impulse voltage (III/3) 6kV

Rated current 10A

Legend (ratings) (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection data

Total number of connection points 2

Total number of potentials 2

Number of levels 1

Connection 1

Connection technology CAGE CLAMP®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.2 … 6 mm² / 24 … 10 AWG

Fine-stranded conductor 0.2 … 6 mm² / 24 … 10 AWG

Strip length 12 … 13 mm / 0.47 … 0.51 inches

Wiring direction Side-entry wiring
