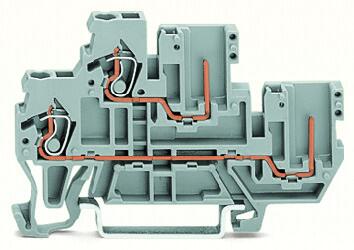

WAGO 870-101 X-COM 1-conductor/1-pin double deck receptacle terminal block; Through/through terminal block; 2.5 mm²; L/L; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 2,50 mm²; gray

WAGO 3-conductor ground terminal block; 1.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 1,50 mm²; green-yellow 279-687

Product Name : WAGO 870-101 X-COM 1-conductor/1-pin double deck receptacle terminal block; Through/through terminal block; 2.5 mm²; L/L; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 2,50 mm²; gray

Directions

Notes

Safety information 1 Max. insulation diameter: 4.4 mm

Safety information 2 2-conductor female plugs cannot be used.

Electrical data

Ratings per IEC/EN

Nominal voltage (III/3) 500V

Rated surge voltage (III/3) 6kV

Rated current 16A

Legend (ratings) (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings per UL

Approvals per UL 1059

Ratings per CSA

Approvals per C22.2 No 158

Connection data

Total number of connection points 2

Total number of potentials 2

Number of levels 2

Connection 1

Connection technology CAGE CLAMP®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 … 2.5 mm² / 28 … 12 AWG

Fine-stranded conductor 0.08 … 4 mm² / 28 … 12 AWG
