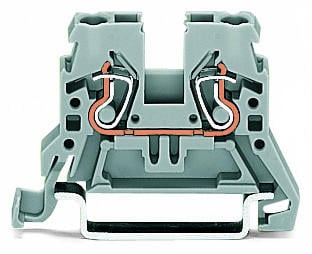

WAGO 870-901 2-conductor through terminal block; 2.5 mm²; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; 2,50 mm²; gray

WAGO 3-conductor ground terminal block; 1.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 1,50 mm²; green-yellow 279-687

Product Name : WAGO 870-901 2-conductor through terminal block; 2.5 mm²; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; 2,50 mm²; gray

Directions

Ratings per IEC/EN

Ratings per IEC/EN 60947-7-1

Nominal voltage (III/3) 500V

Rated surge voltage (III/3) 6kV

Rated current 24A

Legend (ratings) (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection data

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Connection 1

Connection technology CAGE CLAMP®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 … 2.5 mm² / 28 … 12 AWG

Fine-stranded conductor 0.08 … 4 mm² / 28 … 12 AWG

Physical data

Width 5 mm / 0.197 inch

Height 44.5 mm / 1.752 inch

Depth from upper edge of DIN-rail 27.5 mm / 1.083 inch
