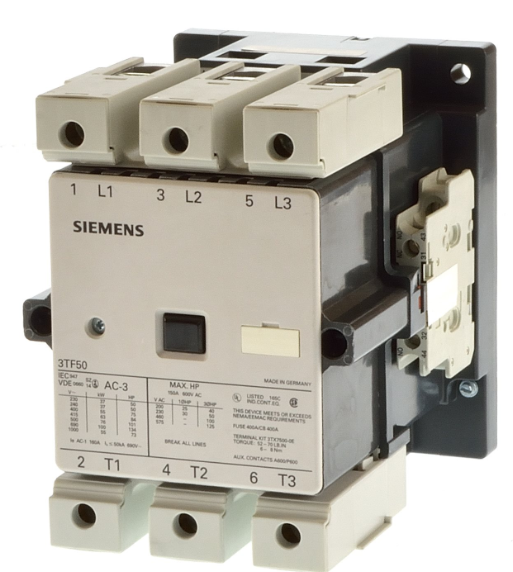

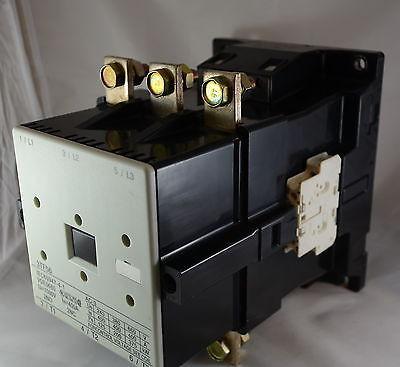

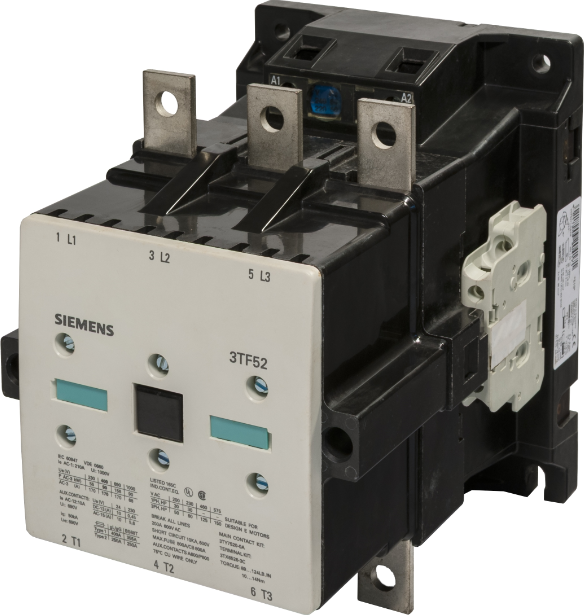

SIEMENS - 3TF5 Motor Starters - Contactors
Siemens has designed the full 3TF5 line to meet or exceed all worldwide standards and conventions. The 3TF5 series also includes a full assortment of accessories assuring you will always have the right product for your application.
3TF5 3-Pole with AC Coil
Frame Size | Amp | Single Phase | Three Phase | Auxiliary | Catalog No. | |||||
Ratings | HP Ratings | HP Ratings | Contacts | |||||||
UL/CSA | AC3 | AC1 | 200V | 230V | 460V | 575V | NO | NC | ||
S6 | 160 | 110 | - | 40 | 50 | 100 | 125 | - | - | 3TF50 |
1 | 1 | 3TF5011-0A | ||||||||
2 | 2 | 3TF5022-0A | ||||||||
S6 | 160 | 140 | - | 50 | 60 | 125 | 150 | - | - | 3TF51 |
1 | 1 | 3TF5111-0A | ||||||||
2 | 2 | 3TF5122-0A | ||||||||
4 | 4 | 3TF5144-0A | ||||||||
S8 | 200 | 170 | - | 50 | 65 | 125 | 150 | - | - | 3TF52 |
1 | 1 | 3TF5211-0A | ||||||||
2 | 2 | 3TF5222-0A | ||||||||
4 | 4 | 3TF5244-0A | ||||||||
S8 | 210 | 205 | - | 60 | 75 | 150 | 200 | - | - | 3TF53 |
1 | 1 | 3TF5311-0A | ||||||||
2 | 2 | 3TF5322-0A | ||||||||
4 | 4 | 3TF5344-0A | ||||||||
S10 | 300 | 250 | - | 75 | 100 | 200 | 250 | - | - | 3TF54 |
1 | 1 | 3TF5411-0A | ||||||||
2 | 2 | 3TF5422-0A | ||||||||
4 | 4 | 3TF5444-0A | ||||||||
S10 | 315 | 300 | - | 100 | 125 | 300 | 400 | - | - | 3TF55 |
1 | 1 | 3TF5511-0A | ||||||||
2 | 2 | 3TF5522-0A | ||||||||
4 | 4 | 3TF5544-0A | ||||||||
S12 | 400 | 400 | - | 125 | 150 | 300 | 400 | - | - | 3TF56 |
1 | 1 | 3TF5611-0A | ||||||||
2 | 2 | 3TF5622-0A | ||||||||
4 | 4 | 3TF5644-0A | ||||||||
S12 | 520 | 475 | - | 150 | 200 | 400 | 500 | - | - | 3TF57 |
1 | 1 | 3TF5711-0A | ||||||||
2 | 2 | 3TF5722-0A | ||||||||
4 | 4 | 3TF5744-0A | ||||||||
