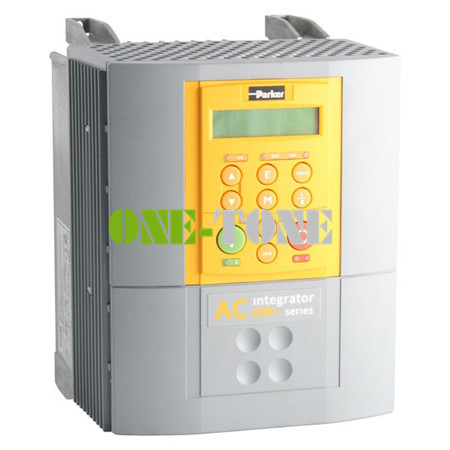

Part No: 690-211700B0-BF0P00-A400 (690PB/0015/230/1/F/0011/UK/0/0/0/0/0)
Phase : Single Phase (230V)
Supply Voltage : 220-240V
Power Rating : 1.5KW
Current Rating : 7.0A
Filter : Fitted
Keypad : Fitted
Brake Switch : Fitted
System Board : Not Fitted
Auxiliary Supply : No Auxiliary Supply
Description:
The AC690+ Series is a single range of AC drives designed to meet the requirements of all variable speed applications from simple single motor speed control through to the most sophisticated integrated multi-drive systems. The heart of the AC690+ is a highly advanced 32-bit microprocessor based motor control model. This provides an exceptional dynamic performance platform to which can be added a host of communications and control options, enabling you to tailor the drives to meet your exact requirements. The AC690+ is available in 380-500V 3-phase 0.75 to 1000kW and 220V-240V 0.75 to 55kW.
Replaces:
605/007/230/1/F/0011/UK/000 Often used to replace 5526/310 PID auxiliary unit and most of the 5528 rack assembly functions.

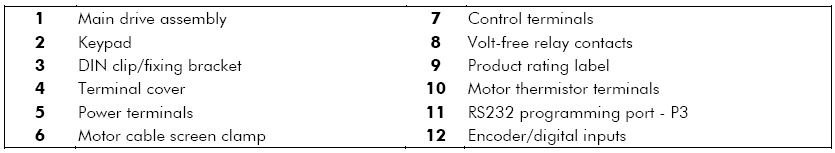

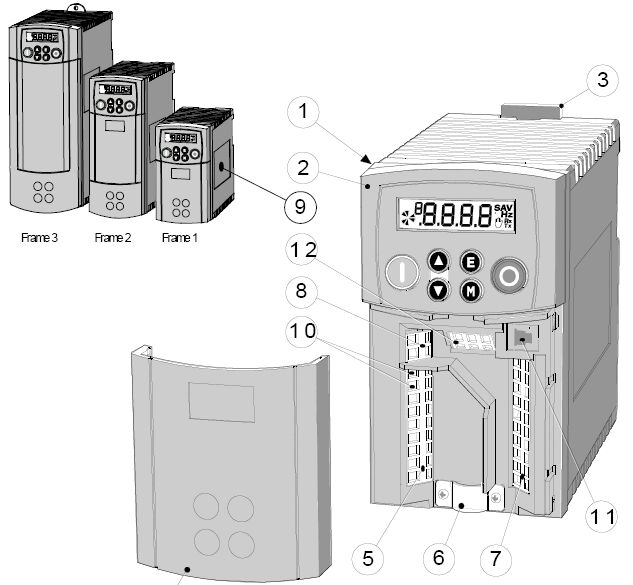

Component Identification

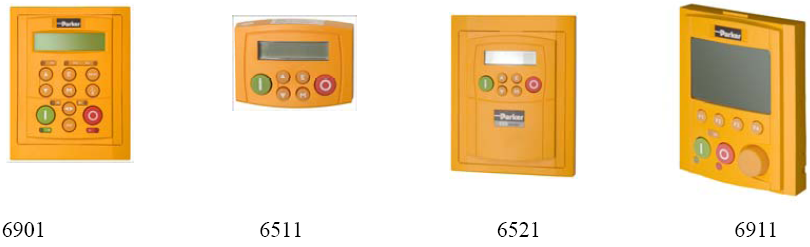

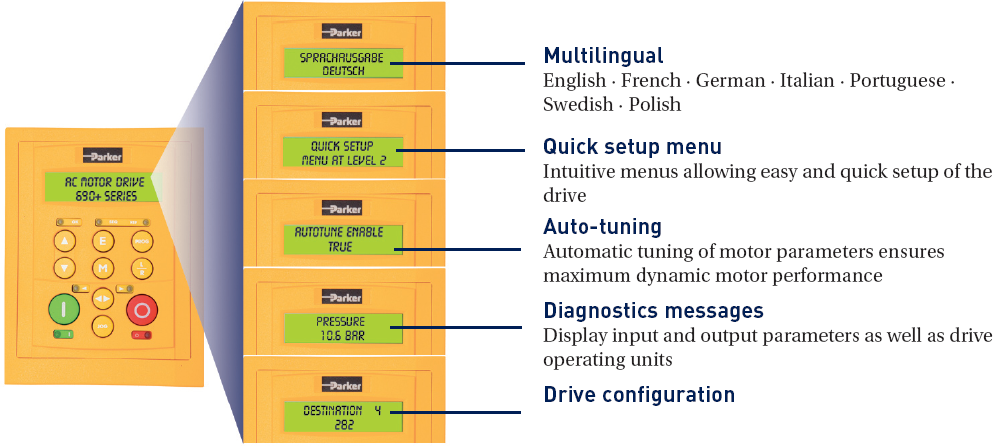

Operator Keypads

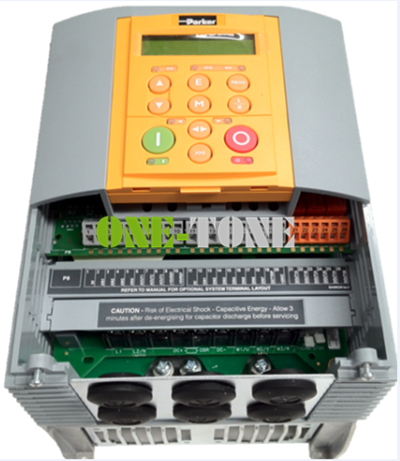

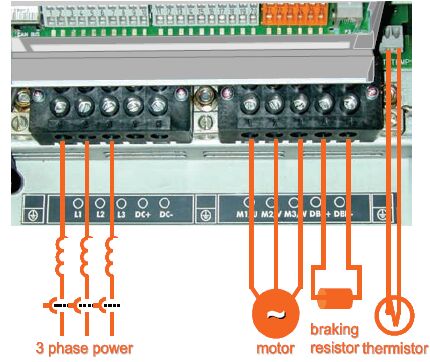

Power Connections

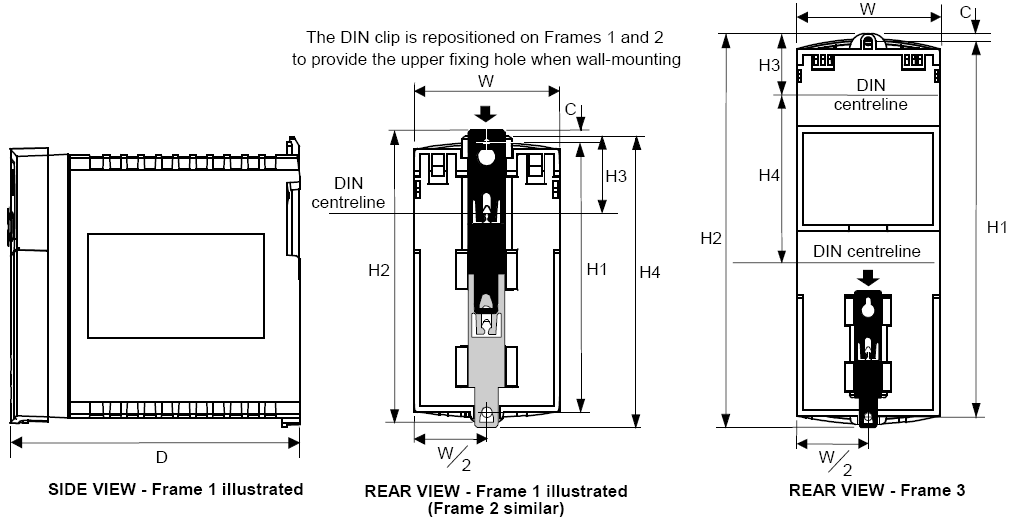

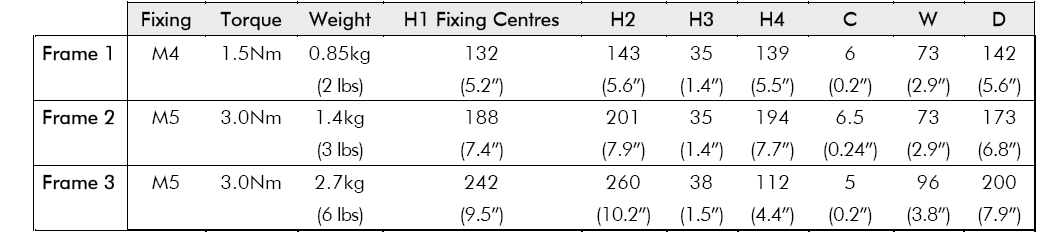

Mechanical Installation

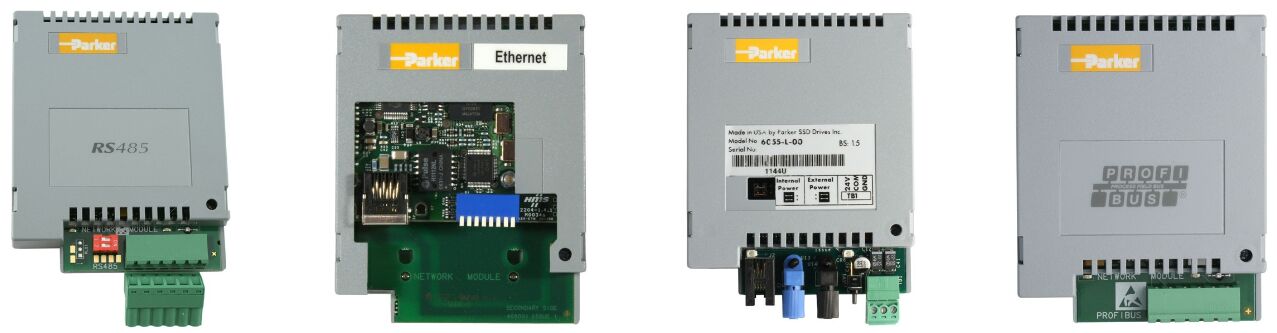

Spare parts and Accessories

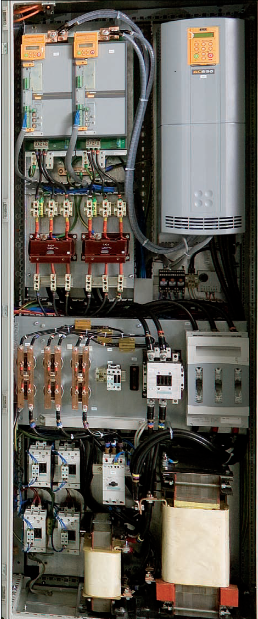

Application
