Part No: AH500075U002-1 (AH470372U002 Or AH500075U002)

Description:

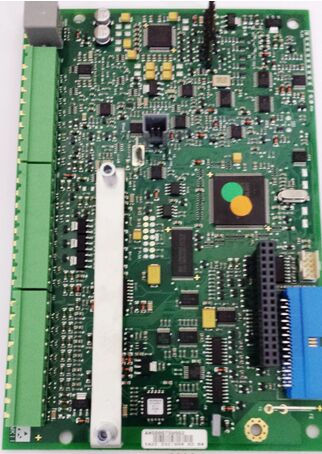

Control Board used in 590P Frame 1-8 Incl. Frame 4 & 5 + External Stacks, & 590PXD/590P.

Includes whole assembly and anti-static packing and box (which changes the part no. to include "-1" at the end)

Can be fitted to all sizes of the 590P, from Frame 1 through to 8 but NOT frame 3. This uses the AH385851U002 (for 4Q) and AH385851U003 (For 2Q).

Manufacturers part number - AH500075U002-1 (Replaces the old - AH470372U002

Cannot buy as a Spare AH500075U002 )

The older AH470372U002 was fitted to drives up to version 7.2

Now the AH500075U002 is fitted to the current 590P range and is backwards compatible for the older drives.

Boards marked AH500075U002 or AH470372U002 (so won't include the "-1" at the end, as mensioned above)

to configure the drive upon installation into existing drive:

1. Power-on drive with "Up", "E" and "Prog" keys pressed.

2. Display will show "M to set P Code"

3. Press "M". Product Code is shown.

4. Press "M" then use "Up" and/or "Down" keys to select correct product code.

5. Press "E" to save. Then "E" to exit each menu level.

6. Drive will calibrate.

Manufacturer is Parker Hannifin SSD Drives Division, previously known as SSD Drives, Eurotherm Drives and Shackleton System Drives.
