OBSOLETE ITEM - REPLACEMENTS AVAILABLE. ALL UNITS ARE REFURBISHED ITEMS AND SUBJECT TO TEST BEFORE DISPATCH.

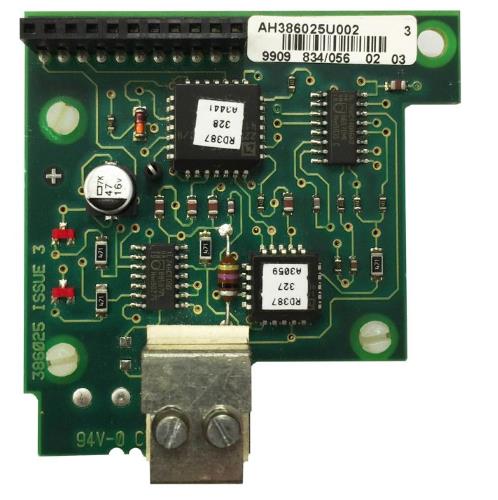

Parker SSD AH386025U002 (LA387997U013, AH386025UOO2, AH386O25UOO2) - 590P & 590 Encoder Feedback Card (Plastic Fibre) (Formerly Eurotherm Drives)   Parker SSD Drives Encoder Feedback board for plastic fibre optic connection from a 5701/1 MicroTach to a 590P or 590C DC Drive. Uses a clamp or "Coffin" to hold the fiber optic cable in place.

We can also offer Refurbished fully Tested Service Boards, if you require these options. Please ask for AH386025U002-R

The Encoder Feedback Card now has a metal coffin connection that replaces the old type with red or black T&B (Thomas and Betts) connector that is no longer available.

Also fits to the older 590 series DC drive series with grey stacks and grey doors with the dimpled flaps at the top and bottom. It could have been used with any of the following control doors:-

Analogue:- 590A, 591A, 594A, 595A, 596A & 597A. LINK:- 590L, 591L, 594L, 595L, 596L & 597L. Digital:- 590C, 591C, 594C, 595C, 596C & 597C.

When factory fitted to a DC 590P or 591P, the part number changes as follows:- Current Part Number: 59XP-XXXXXXXX-XXX-XXPX Legacy Part Number: 59XP / XXXX / XXX / XXXX / XX / ENP / X / X / X

Manufacturers part number is AH386025U002. Orderd from Parker using their "LA" Assembly number; LA387997U013. Could also be recognised as AH386025UOO2.

Manufactured by Parker Hannifin's SSD Drives Division in Littlehampton (United Kingdom). Formerly known as SSD Drives, Eurotherm Drives & Shackleton System Drives.

Features

Brand: Parker SSD Drives

Option Type: Feedback Options
