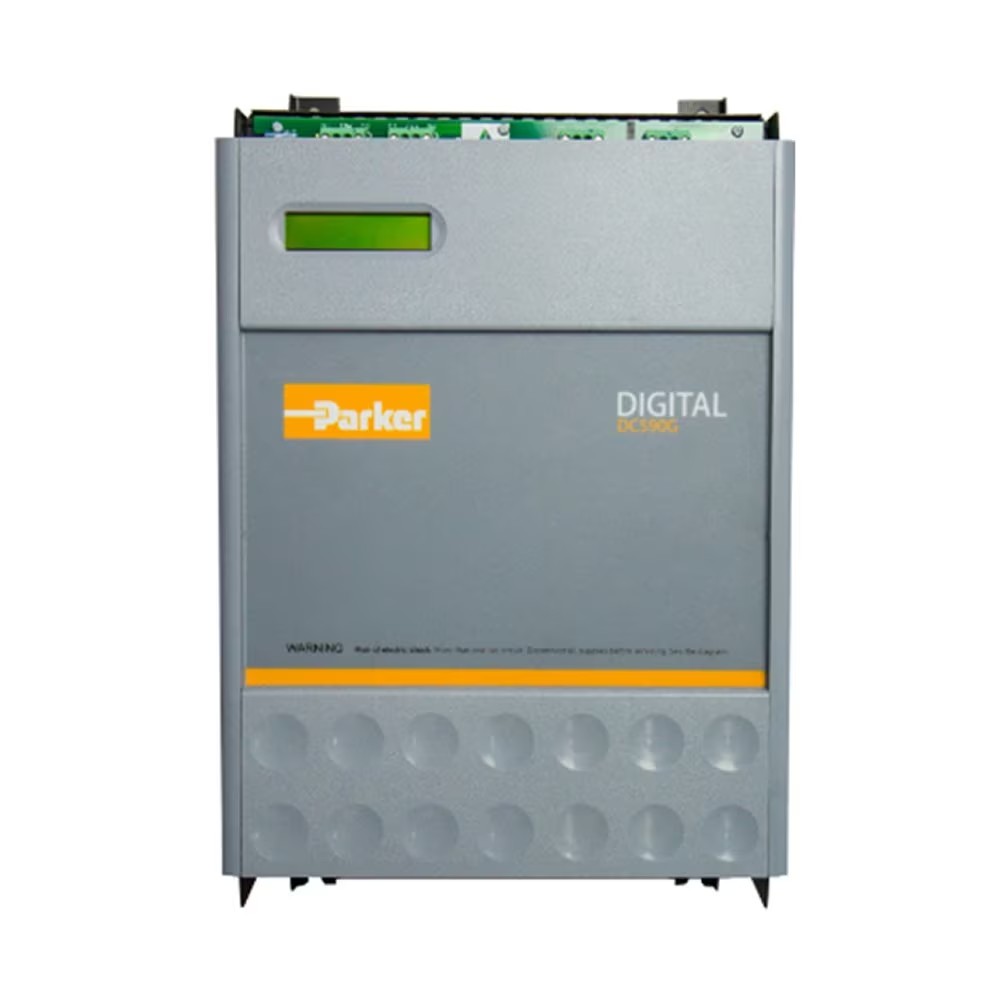

598G/599G DC Drive External Stack Controller

Continuous Output Current Rating: up to 1440A

External Stack Controller-598G/599G could build up to 1440A External DC Drive in oneframe size. The equipment described is intended for an industrial (non-consumer) userfor the control of an external thyristor controlled bridge. The design assumes that a 2-phase field semi-controlled Rectifier Bridge and a fully controlled 3-phase Six PulseConverter exists, which is complete with Thyristor Suppression, Current FeedbackTemperature Monitoring and suitable fusing.

The External Stack Controller Module provides:Thyristor Firing Signals and Pulse TransformersField Power Thyristor Firing Signals and Pulse TransformersACCT Feedback Rectification and Scaling

Field CT Feedback Rectification and Scaling

·Armature Voltage Feedback Interface

·Field Voltage Feedback Interface

Mains Present Monitoring

Heatsink Over-temperature Input

All Standard 590C I/O Terminations
