Product Description:

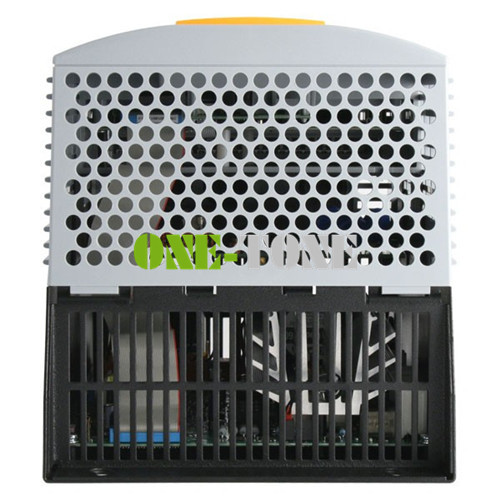

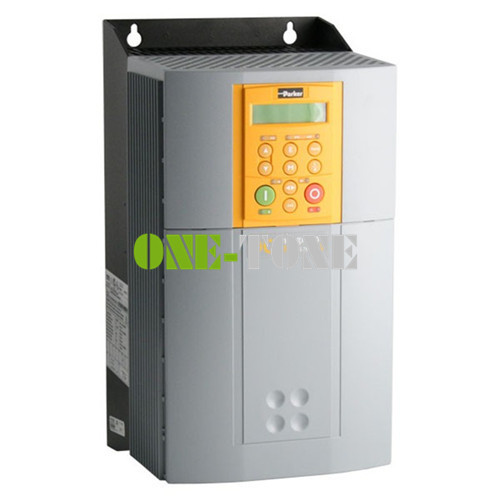

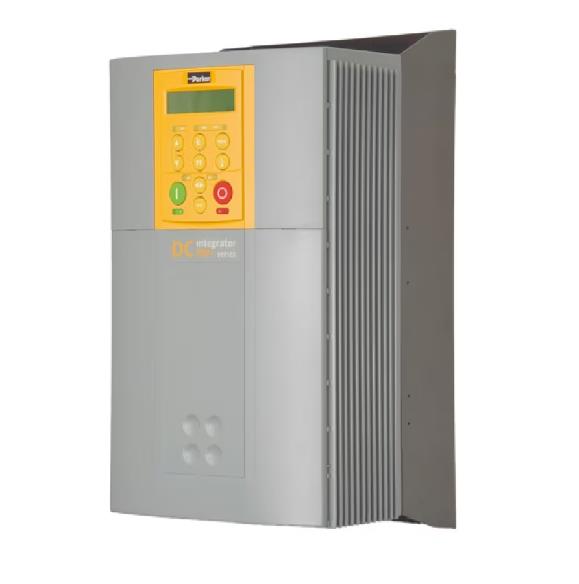

The DC590+ Series DC Digital Drive is designed for use in a suitable enclosure, with associated control equipment. The unit accepts a variety of standard three-phase ac supply voltages depending upon the model, and is suitable for the powering of DC shunt field and permanent magnet motors,
Frame 1
Spare Parts & Optional Equipment
| Item | Part Number |
| EMC Installation Guidelines for Modules and Systems A Parker SSD Drives application manual detailing EMC requirements | HA388879 |
| 590 Digital Closed Loop Centre Winder A Parker SSD Drives application manual detailing the use of the block diagram to implement closed loop centre winders | HA388202 |
| ConfigEd Lite Parker SSD Drives’ Windows-based block programming softwar | Order by name |
| External AC Supply (RFI) Filter For Drives without internal filters, on cable runs in excess of 25 metres | Refer to Appendix E: “External AC Supply (RFI) Filters” for Part Numbers |
| icrotach Option Board Two board types for connecting to a plastic or glass fiber Microtach encode • Glass • Plastic | AH386025U001 |
| Encoder Option Board A board to interface to a wire-ended encoder | AH387775U001 (universal) |
| Tacho Calibration Option Board A switchable calibration board for interfacing to AC/DC analog tachogenerators | AH385870U001 |
| Comms Option Board (P1) Board Two board types for supporting EI BYSYNCH or PROFIBUS communication protocols for connection to other equipment. • EI BYSYNCH (RS422, RS485) • PROFIBUS | 6055/EI00/00 6055/PROF/00 6055/LINK/00 |
| 590 Digital Section Control A Parker SSD Drives application manual detailing the use of the block diagram to implement open and closed loop control of driven web section rolls | HA388664 |
