Encoder Feedback Card - Product Range: 690P Sizes C-K
6054-HTTL-00 Commodity Code: 85049099

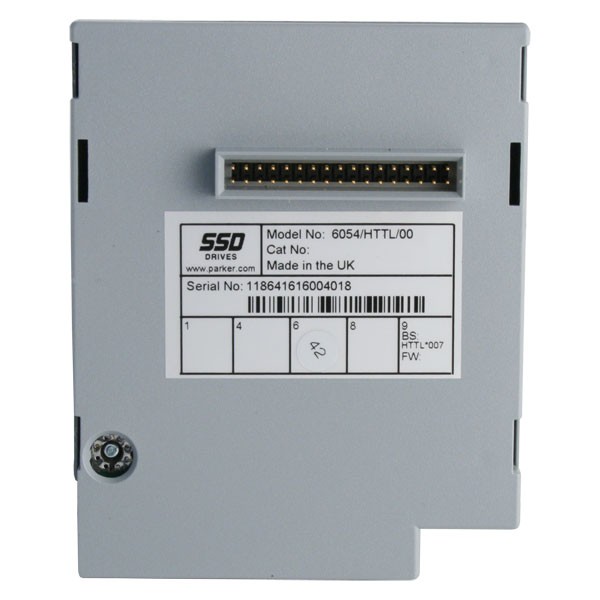

Legacy Part No: 6054/HTTL/00
Brand: Parker SSD

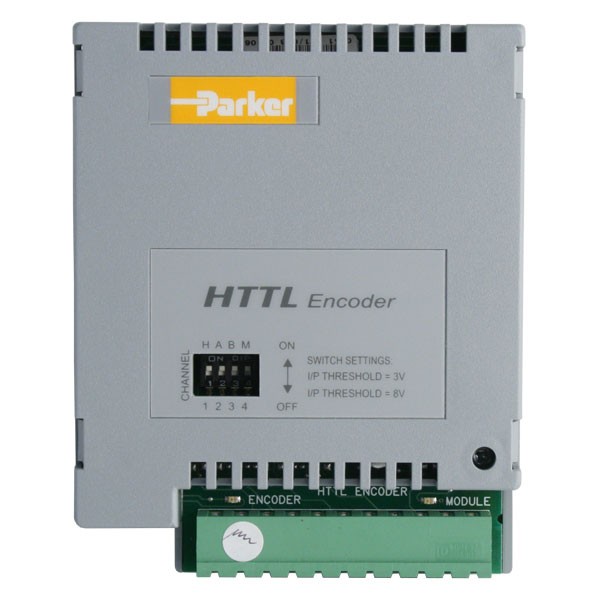

HTTL Encoder Feedback Board in Tech-Box form for SSD 690P sizes C to K closed loop AC Flux Vector drives at HTL level.

Input frequency:  Up to 250kHz in quadrature, as single ended or differential.
Power Supply:  10V to 20V to 250mA DC for the encoder (Voltage is adjustable).

Suitable for use with Size C to K 690P drives only.
Not suitable for use with 690P series Inverters in frame size B.

When factory fitted to a AC 690P (size C and above), the part number is changed as follows:-
Current Part Number: 690-XXXXXXXX-XXXXXX-XX3X
Legacy Part Number: 690PX / XXXX / XXX / XXXX / XX / HTTL / X / X / X / X / X / X
