PARKER History

Parker Hannifin has bought SSD Drives (formerly Eurotherm Drives), from the private equity firm Compass Partners International, for an undisclosed sum. SSD, which makes AC, DC and servo drives, and Parvex motors, has become part of Parker`s Automation group.

Parker SSD products bring the right mix of features and functionality, developed from over three decades of experience. In the industrial automation arena, Parker SSD products provide coordinated system solutions for printing, converting and web handling, wire, plastics, paper, textiles, mining, metals, HVAC, ski lifts, and test stands. For renewable energy solutions, Parker SSD Drives offers a broad line of grid tie inverters, used in solar, wind, and wave power applications, as well as utility scale battery energy storage systems. For the mobile market, Parker SSD supplies motor, drive, generator, and charging systems used in electric and hybrid vehicles, and a unique hybrid hydraulic/electric platform for utility trucks.

Backed by the global reach of Parker, SSD Drives provides expert sales, application, and service support worldwide.

Product Description:

No Keypad, encoder feedback or comms options. Simple to set-up in Digital, fully-isolated Four Quadrant form. 115V Auxillary supply fitted.

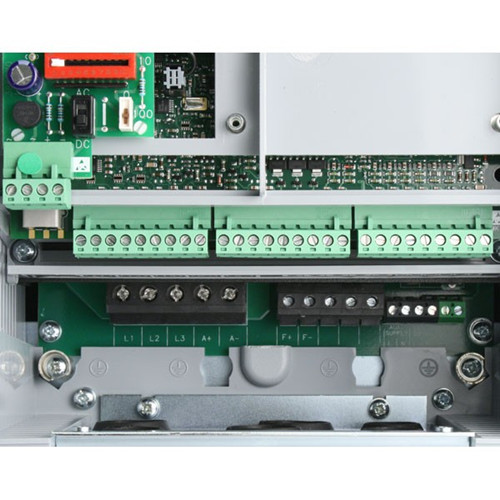

Terminals include:-

5 x Analogue Inputs (4 x Configurable).

3 x Analogue Outputs (2 x Configurable).

Tacho input (or internal AVF) Feedback.

9 x Digital inputs - 5 are Configurable including two as encoder inputs for a second or line encoder.                                            3 x Digital Outputs (all Configurable).

+ & - 10V for Potentiometers.

Rated at 40C Ambient.

Ventilation space above - 200mm. Ventilation space below - 210mm. Ventilation space at sides - 0mm. Heat Loss at max output - 1230W. Panel mount with M8 screw fixings on 680 x 150mm centres.

Its previous product code was 590P-0380-500-0011-UK-AN-0-115-0.

Replaces:- SSD and Eurotherm Drives 590C-0360 digital, 590A-0360 and 547-360 analogue products. Requires external back-up high speed fuses.

Simple to set-up in Digital, fully-isolated Four Quadrant form.

Product Dimensions: 253mm Wide x 358mm Deep x 700mm High. Weight is 32kg

Packaging Dimensions: 100cm Length, 40cm Wide, 50cm Height Weight is 50kg

Details

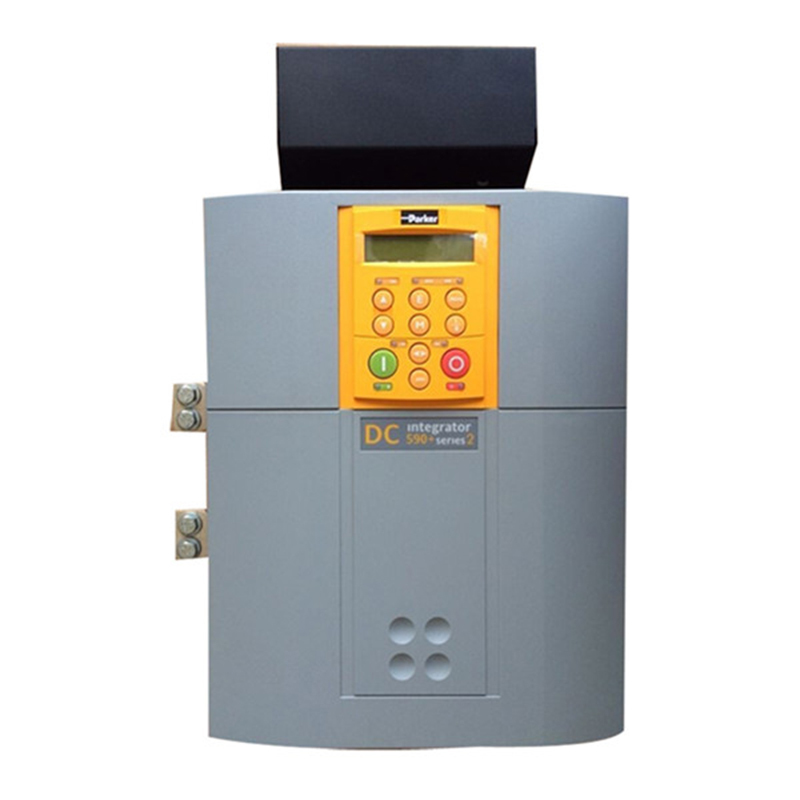

590P-53338041-P00-U0A0 | 590 Series Regen Digital Drive - 3PH, 220-500v - 380A, Frame 4 - 115v - Panel Mounting - No Special Options - English (50/60Hz) - No Keypad - Analog Tacho - None

The Range: The 590P range is a 4 Quadrant Parker SSD Drive. The 591P range is a 2 Quadrant Parker SSD Drive.

Frame Sizes: Below are the power ratings for the different options and frame sizes. TOF = Top of Frame. 590P/591P 3PH, 4Q, 110-220V Supply, Universal Aux

Frame 1 (15, 35) A [TOF: 590P-23235010-P00-U4V0 / 591P-23235010-P00-U4V0] Frame 2 (40, 70, 110, 165) A [TOF: 590P-23316520-P00-U4V0 / 591P-23316520-P00-U4V0] 3PH, 4Q, 110-220V Supply, 115V Aux

Frame 3 (180, 270) A [TOF: 590P-23327031-P00-U4V0 / 591P-23327031-P00-U4V0] Frame 4 (380, 500, 725, 830) A [TOF: 590P-23383041-P00-U4V0 / 591P-23383041-P00-U4V0] Frame 5 (1580) A [TOF: 590P-23415851-P00-U4V0 / 591P-23415851-P00-U4V0] 3PH, 4Q, 110-220V Supply, 230V Aux

Frame 3 (180, 270) A [TOF: 590P-23327032-P00-U4V0 / 591P-23327032-P00-U4V0] Frame 4 (380, 500, 725, 830) A [TOF: 590P-23383042-P00-U4V0 / 591P-23383042-P00-U4V0] Frame 5 (1580) A [TOF: 590P-23415852-P00-U4V0 / 590P-23415852-P00-U4V0] 3PH, 4Q, 220-500V Supply, Universal Aux

Frame 1 (15, 35) A [TOF: 590P-53235010-P00-U4V0 / 591P-53235010-P00-U4V0] Frame 2 (40, 70, 110, 165) A [TOF: 590P-53316520-P00-U4V0 / 591P-53316520-P00-U4V0] Frame 6 (1250, 1600, 1950) A [TOF: 590P-53419560-P00-U4V0 / 591P-53419560-P00-U4V0] Frame H (1200, 1700, 2200, 2700) A [TOF: 590P-534270H0-P00-U4V0 / 591P-534270H0-P00-U4V0] 3PH, 4Q, 220-500V Supply, 115V Aux

Frame 3 (180, 270) A [TOF: 590P-53327031-P00-U4V0 / 591P-53327031-P00-U4V0] Frame 4 (380, 500, 725, 830) A [TOF: 590P-53383041-P00-U4V0 / 591P-53383041-P00-U4V0] Frame 5 (1580) A [TOF: 590P-53415851-P00-U4V0 / 591P-53415851-P00-U4V0] 3PH, 4Q, 220-500V Supply, 230V Aux

Frame 3 (180, 270) A [TOF: 590P-53327032-P00-U4V0 / 591P-53327032-P00-U4V0] Frame 4 (380, 500, 725, 830) A [TOF: 590P-53383042-P00-U4V0 / 591P-53383042-P00-U4V0] Frame 5 (1580) A [TOF: 590P-53415852-P00-U4V0 / 591P-53415852-P00-U4V0]

3PH, 4Q, 500-600V Supply, 115V Aux

Frame 4 (380, 500, 725, 830) A [TOF: 590P-63383041-P00-U4V0 / 591P-63383041-P00-U4V0] Frame 5 (1580) A [TOF: 590P-63415851-P00-U4V0 / 591P-63415851-P00-U4V0] 3PH, 4Q, 500-600V Supply, 230V Aux

Frame 4 (380, 500, 725, 830) A [TOF: 590P-63383042-P00-U4V0 / 591P-63383042-P00-U4V0] Frame 5 (1580) A [TOF: 590P-63415852-P00-U4V0 / 591P-63415852-P00-U4V0] 3PH, 4Q, 500-690V Supply, Universal Aux Frame 6 (1250, 1600, 1950) A [TOF: 590P-73419560-P00-U4V0 / 591P-73419560-P00-U4V0] Frame H (1200, 1700, 2200, 2700) A [TOF: 590P-734270H0-P00-U4V0 / 591P-734270H0-P00-U4V0]

Frame Dimensions: Frame 1 (200(W) x 375(H) x 220(D) mm) – approx. 6.4kg Frame 2 (200(W) x 434(H) x 292(D) mm) – approx. 10.5kg Frame 3 (180A) (250(W) x 485(H) x 234(D) mm) – approx. 20kg Frame 3 (270A) (300(W) x 485(H) x 234(D) mm) – approx. 20kg Frame 4 (253(W) x 700(H) x 358(D) mm) – approx. 44kg Frame 5 (506(W) x 700(H) x 358(D) mm) – approx. 90kg Frame 6 (686(W) x 715(H) x 378(D) mm) – approx. 110kg Frame H (850(W) x 956(H) x 417(D) mm) – approx. 270kg

Options: There are a number of language options available for each drive. All drives must now be sold with Keypads. There are also a number of purchasable additional options listed below: Note: the last block of the part number contains 4 digits, the last 3 of which denote the purchasable options. These will be referred to as option X, Y, and Z (XYZ).

Option X 0 - No Keypad 4 - 6901 Keypad [6901-00-G]

Option Y A - Analog Tacho [AH500935U001-2] G - Glass Fiberoptic Encoder [5901/1] P - Plastic Fiberoptic Encoder [5701/1] V - Armature Voltage [Fitted as standard] W - Wire-ended Encoder [AH387775U001-1]

Option Z 0 - None C - ControlNet [6053-CNET-00-G] D - DeviceNet [6055-DNET-00] E - Ethernet [6055-ENET-00] L - Link [6055-LINK-00] M - ModBus+ [6055-MBP-00] N - CanOpen [6055-CAN-00] P - Profibus [6055-PROF-00] R - RS485 / RS422 [6055-EI00-00]

Additional Options A - Airflow Kit [LA466717U001-1]

Features

EMC Filter:No

Open Loop (V/Hz):No

Option Comms 1:No

Closed-Loop Vector:No

Manufacturers Series:590P

Option Comms 2:No

Power / Current:380A

Active Front End:No

Permanent Magnet AC:No

Ingress Protection Code:IP20

Sensorless Vector:No

Standard Comms:RS485 ASCII / BINARY

Mounting:Panel Mount

Drive Type:DC Converter Drives

Supply Input:3PH, 220 / 500V

Regen Type:4Q

Output:NA

Servomotor:No

Common Supply:No

Brand:Parker Hannifin
