PARKER History
Parker Hannifin has bought SSD Drives (formerly Eurotherm Drives), from the private equity firm Compass Partners International, for an undisclosed sum. SSD, which makes AC, DC and servo drives, and Parvex motors, has become part of Parker`s Automation group.
Parker SSD products bring the right mix of features and functionality, developed from over three decades of experience. In the industrial automation arena, Parker SSD products provide coordinated system solutions for printing, converting and web handling, wire, plastics, paper, textiles, mining, metals, HVAC, ski lifts, and test stands. For renewable energy solutions, Parker SSD Drives offers a broad line of grid tie inverters, used in solar, wind, and wave power applications, as well as utility scale battery energy storage systems. For the mobile market, Parker SSD supplies motor, drive, generator, and charging systems used in electric and hybrid vehicles, and a unique hybrid hydraulic/electric platform for utility trucks.
Backed by the global reach of Parker, SSD Drives provides expert sales, application, and service support worldwide.
Product Description:

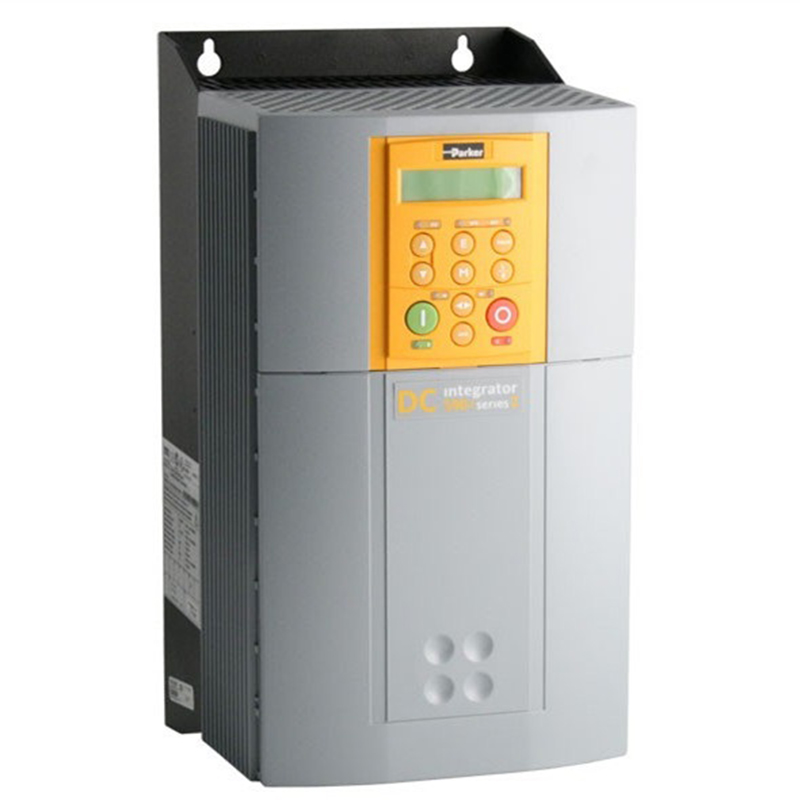

Parker SSD Drives 590P Series 35A Four Quadrant DC Thyristor Drive for 400V Supply with universal 110V or 230V Control supply. Converts a three phase AC supply to DC for speed and torque control of a DC motor.
Typical Motor output, up to 15kW (20HP) at 460V DC for fully regenerative DC motor speed and torque control.
Keypad and analogue Tachogenerator feedback board included.
Simple to set-up in Digital, fully-isolated Four Quadrant form.
Dimensions: Frame Size 1, 200mm Wide x 220mm Deep x 375mm High.

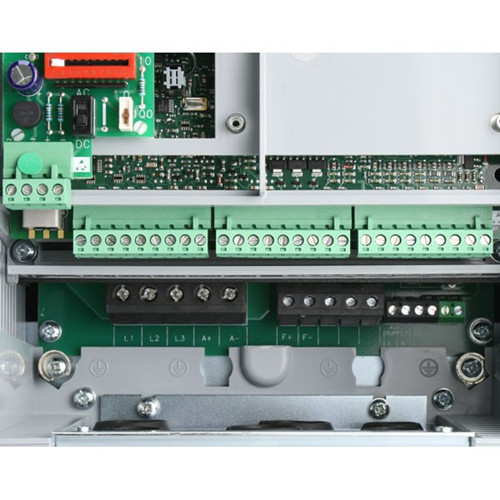

Terminals include:-
5 x Analogue Inputs (4 x Configurable).
3 x Analogue Outputs (2 x Configurable).
Tacho input (or internal AVF) Feedback.
10 x Digital inputs - 5 are Configurable including two as encoder inputs for a second or line encoder.
3 x Digital Outputs (all Configurable).
+ & - 10V for Potentiometers.
Input Current: 28.7A for Armature + up to 4A for Field.
Input Voltage: 220V to 500V +-10% at 50/60Hz (for use on 220V/230V/240V/380V/415V/440V/460V/480V three phase main supplies).
Input fuse: 40A to suit input bridge at 720A²s
Use a choke in the supply at 50uH minimum.
Ambient Temperature: Rated at 40C.

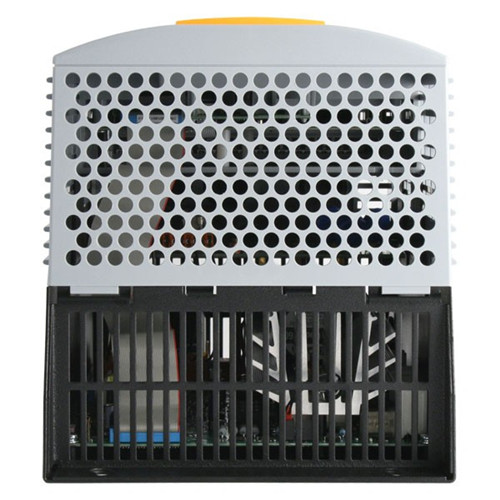

Ventilation space: 100mm above, 100mm below, 0mm at sides.
Heat Loss: 117W at maximum output.
Mounting: Panel mount with M6 screw fixings on 360 x 140mm centres.
