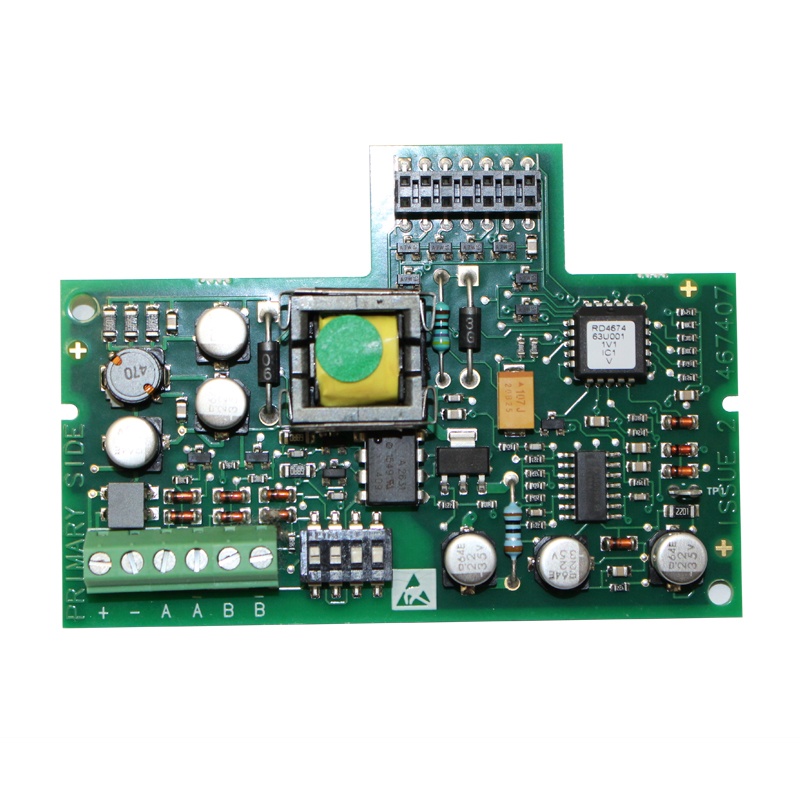

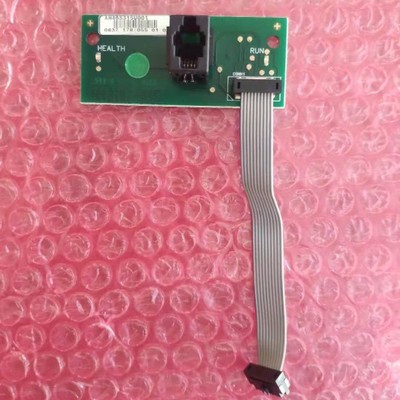

Encoder Feedback Board and fitting kit for SSD 690PB closed loop AC Flux Vector drives at HTL (HTTL) level.

Input Frequency:   up to 250kHz in quadrature as single ended or differential.

Power Supply:  10V to 20V to 250mA DC for the encoder (Voltage is adjustable).

Suitable for use with Size B 690P drives only.

Not suitable for use with 690P series Inverters in frame size C to K.

See linked products below for equivalent suitable for use with 690P in sizes C to K.

When factory fitted, the Inverter part number is changed as follows:-

New Part Number:  690-xxxxxxBx-xxxxxx-xx3x

Legacy Part Number:  690PB-xxxx-xxx-x-x-xxxx-xx-HTTL-x-x-x-x

SSD part number:  LA467461 (LA467461-1) and includes the AH467407U001 card (LA 467461 - AH 467407U001).

SPARE PARTS
590PXD/0011/UK/0
(AH500075U002)
590PD/0010/UK/0
590P control door (control board)/door assembly  Old model AH470372U002
AH470372U001           590P main control board
AH470280U001           591P/15A 2Q power board
AH470280U002           590P/15A 4Q power board
AH470280U003           591P/35A 2Q power board
AH470280U004           590P/35A 4Q power board
AH470330U001           591P/40A-165A 2Q power board
AH470330U002           590P/40A-165A 4Q power board

590P/0015/500/0011/UK/AN/0/230/0   15A 500V  Reversible
590P/0035/500/0011/UK/AN/0/230/0   35A 500V  Reversible
590P/0040/500/0011/UK/AN/0/230/0   40A 500V  Reversible
590P/0070/500/0011/UK/AN/0/230/0   70A 500V  Reversible
590P/0110/500/0011/UK/AN/0/230/0   110A 500V  Reversible
590P/0165/500/0011/UK/AN/0/230/0   165A 500V  Reversible
590P/0180/500/0011/UK/AN/0/230/0   180A 500V  Reversible
590P/0270/500/0011/UK/AN/0/230/0   270A 500V  Reversible
590P/0380/500/0041/UK/AN/0/230/0   380A 500V  Reversible
590P/0500/500/0041/UK/AN/0/230/0   500A 500V  Reversible
590P/0725/500/0041/UK/AN/0/230/0   725A 500V  Reversible
590P/0830/500/0041/UK/AN/0/230/0   830A 500V  Reversible
590P/1580/500/0041/UK/AN/0/230/0   1580A 500V  Reversible
590P/2200/500/0011/UK/AN/0/230/0   2200A 500V  Reversible
590P/2700/500/0011/UK/AN/0/230/0   2700A 500V  Reversible
NEW TYPE
590P-53215010-P00-UA0      15A 500V  Irreversible
590P-53235010-P00-U4A0     35A 500V  Irreversible
590P-53240020-P00-U4A0     40A 500V  Irreversible
590P-53270020-P00-U4A0     70A 500V  Irreversible
590P-53311020-P00-U4A0     110A 500V  Irreversible
590P-53316520-P00-U4A0     165A 500V  Irreversible
590P-53318032-P00-U4A0     180A 500V  Irreversible
590P-53327032-P00-U4A0     270A 500V  Irreversible
