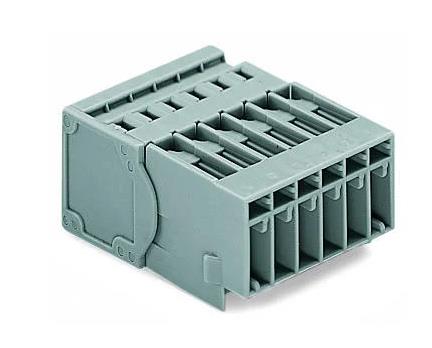

Electrical data

Ratings per IEC/EN

Nominal voltage (III/3) 500V

Rated impulse voltage (III/3) 6kV

Rated current 32A

Legend (ratings) (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection data

Total number of connection points 2

Total number of potentials 2

Connection 1

Connection technology CAGE CLAMP®

Actuation type Operating tool

Connectable conductor materials Copper

Nominal cross-section 4 mm²

Solid conductor 0.08 … 4 mm² / 28 … 12 AWG

More

Physical data

Pin spacing 5 mm / 0.197 inch

Width 13.6 mm / 0.535 inch

Height 18.3 mm / 0.72 inch

Depth 40.2 mm / 1.583 inch

Mechanical data

Variable coding Yes

Direct ground contact to DIN-rail/drilled hole/housing No

Mounting type Flying leads

Plug-in connection

Contact type (pluggable connector) Male connector/plug

Connector (connection type) for conductor

Material data

Note (material data) Information on material data can be found here

Color gray

Insulation material Polyamide (PA66)

Flammability class per UL94 V0

Fire load 0.138MJ
