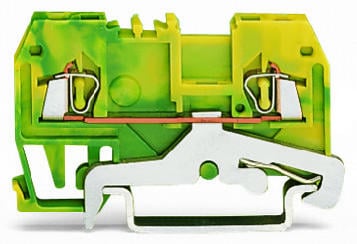

WAGO 2-conductor ground terminal block; 1.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 1,50 mm²; green-yellow 279-907

WAGO Jumper; insulated; yellow-green 283-422

Product Name : WAGO 2-conductor ground terminal block; 1.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 1,50 mm²; green-yellow 279-907

Directions

Details

Electrical data

Ratings per IEC/EN

Ratings per IEC/EN 60947-7-2

Connection data

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Connection 1

Connection technology CAGE CLAMP®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 … 1.5 mm² / 28 … 16 AWG

Fine-stranded conductor 0.08 … 1.5 mm² / 28 … 16 AWG

Physical data

Width 4 mm / 0.157 inch

Height 54 mm / 2.126 inch

Depth from upper edge of DIN-rail 27 mm / 1.063 inch

Mechanical data

Design horizontal type

Mounting type DIN-35 rail

Marking level Center marking

Material data

Color green-yellow

Insulation material Polyamide (PA66)

Flammability class per UL94 V0

Fire load 0.074MJ

Weight 7.9g

Commercial data

PU (SPU) 100 Stück

Packaging type box

Country of origin DE

GTIN 4045454084479

Customs tariff number 85369010000
