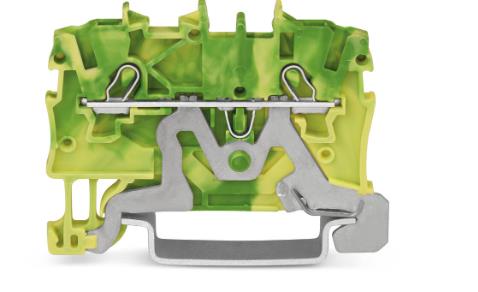

Electrical data

Ratings per IEC/EN

Ratings per IEC/EN 60947-7-2

Ex information

Reference hazardous areas See Downloads – Documentation – Additional Information: Technical Section; Technical explanations

Connection data

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Number of jumper slots 2

Connection 1

Connection technology Push-in CAGE CLAMP®

Actuation type Operating tool

Connectable conductor materials Copper

Nominal cross-section 1 mm²

Solid conductor 0.14 … 1.5 mm² / 24 … 16 AWG

Solid conductor; push-in termination 0.5 … 1.5 mm² / 20 … 16 AWG

Fine-stranded conductor 0.14 … 1.5 mm² / 24 … 16 AWG

Fine-stranded conductor; with insulated ferrule 0.14 … 0.75 mm² / 24 … 18 AWG

Fine-stranded conductor; with ferrule; push-in termination 0.5 … 0.75 mm² / 20 … 18 AWG

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

Strip length 9 … 11 mm / 0.35 … 0.43 inches

Wiring direction Front-entry wiring
