WAGO 2000-1301 S 3-conductor through terminal block; 1 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; 1,00 mm²; gray

WAGO 3-conductor ground terminal block; 1.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 1,50 mm²; green-yellow 279-687

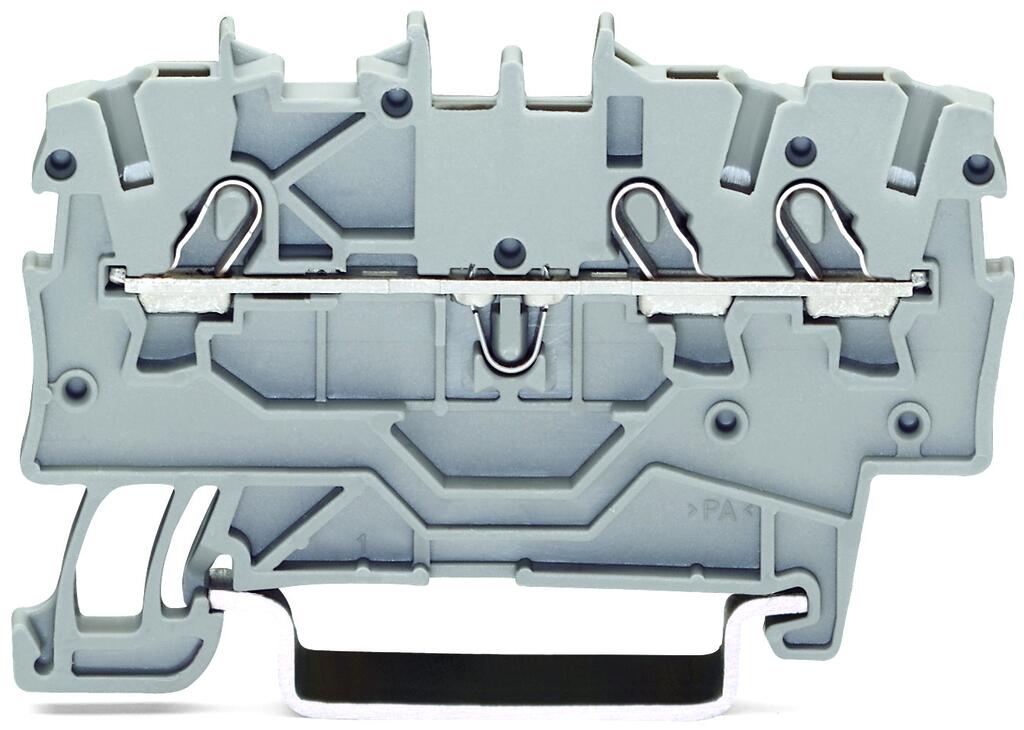

Product Name : WAGO 2000-1301 S 3-conductor through terminal block; 1 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; 1,00 mm²; gray

Directions

Ratings per IEC/EN

Ratings perIEC/EN 60947-7-1

Nominal voltage (III/3)800V

Rated surge voltage (III/3)8kV

Rated current13.5A

Rated current 217.5A

Ratings per UL

Approvals perUL 1059

Rated voltage UL (Use Group B)600V

Rated current UL (Use Group B)15A

Rated voltage UL (Use Group C)600V

Rated current UL (Use Group C)15A

Ratings per CSA

Approvals perC22.2 No 158

Rated voltage CSA (Use Group B)600V

Rated current CSA (Use Group B)10A

Rated voltage CSA (Use Group C)600V

Rated current CSA (Use Group C)10A

Ex information

Ratings perATEX: PTB 11 ATEX 1041 U / IECEx: PTB 11.0093U (Ex eb IIC Gb)

Rated voltage EN (Ex e II)550V

Rated current (Ex e II)13A

Rated current (Ex e II) with jumper12A

Ratings (note)See installation notes in section “Knowledge” and

Downloads – Documentation – Additional Information: Technical explanations

Connection data

Total number of connection points3

Total number of potentials1

Number of levels1

Number of jumper slots2
