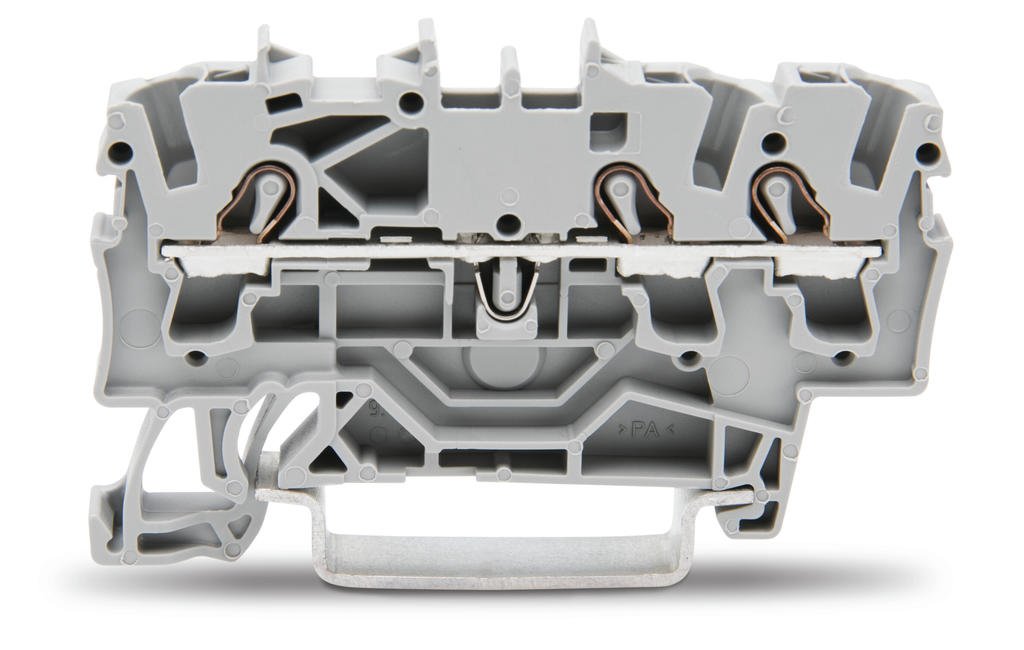

WAGO 2002-1301 3-conductor through terminal block; 2.5 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; 2.50 mm²; gray

WAGO 3-conductor ground terminal block; 1.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 1,50 mm²; green-yellow 279-687

Product Name : WAGO 2002-1301 3-conductor through terminal block; 2.5 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; 2.50 mm²; gray

Directions

Ratings per IEC/EN

Ratings per IEC/EN 60947-7-1

Nominal voltage (III/3) 800V

Rated surge voltage (III/3) 8kV

Rated current 24A

Rated current 2 32A

Ratings per UL

Approvals per UL 1059

Rated voltage UL (Use Group B) 600V

Rated current UL (Use Group B) 20A

Rated voltage UL (Use Group C) 600V

Rated current UL (Use Group C) 20A

Ratings per CSA

Approvals per C22.2 No 158

Rated voltage CSA (Use Group B) 600V

Rated current CSA (Use Group B) 20A

Rated voltage CSA (Use Group C) 600V

Rated current CSA (Use Group C) 20A

Ex information

Ratings per ATEX: PTB 03 ATEX 1162 U / IECEx: PTB 03.0004U (Ex eb IIC Gb)

Rated voltage EN (Ex e II) 550V

Rated current (Ex e II) 22A

Rated current (Ex e II) with jumper 20A

Ratings (note) See installation notes in section “Knowledge” and

Downloads – Documentation – Additional Information: Technical explanations

Connection data

Total number of connection points 3

Total number of potentials 1

Number of levels 1

Number of jumper slots 2

Connection 1

Actuation type Push-in

Operating tool

Connectable conductor materials Copper

Nominal cross-section 2.5 mm²

Solid conductor 0.25 … 4 mm² / 22 … 12 AWG
