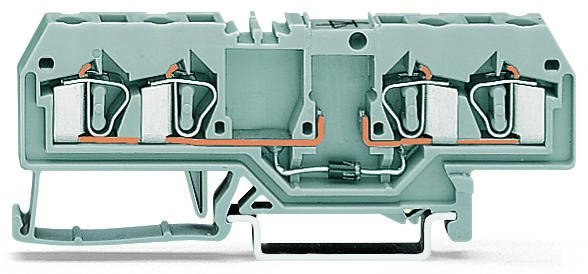

Electrical data

Fuse receptacle pivoting

Electrical data

Nominal voltage 250V

Reverse voltage 1,000V

Ratings per IEC/EN

Ratings per IEC/EN 60947-7-1

Rated current 0.5A

Connection data

Total number of connection points 4

Total number of potentials 1

Number of levels 1

Connection 1

Connection technology CAGE CLAMP®

Actuation type Operating tool

Connectable conductor materials Copper

Aluminum

Note on connectable conductor materials Terminating Aluminum Conductors

WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste is used for termination.

“Alu-Plus” Contact Paste Advantages:

Automatically destroys the oxide film during clamping.

Prevents fresh oxidation at the clamping point.

Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).

Provides long-term protection against corrosion.

Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, aluminum conductors must first be cleaned with a blade and then immediately be inserted into the clamping units filled with “Alu-Plus” Contact Paste.

For spring clamp connections with PUSH WIRE® connection technology, WAGO recommends that the aluminum conductor first be cleaned and then immediately inserted into the clamping unit filled with “Alu-Plus” contact paste.

It is also possible to apply WAGO “Alu-Plus” additionally on the whole surface of the aluminum conductor before termination.

Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::

2.5 mm² = 16 A

4 mm² = 22 A

Solid conductor 0.08 … 4 mm² / 28 … 12 AWGPower loss Pl (max.) 2.5W

Power loss Pl (note) Overload and short circuit protection (Individual arrangement)

Power loss Pl 2 (max.) 1.6W

More

Ratings per IEC/EN

Ratings per IEC/EN 60947-7-3

Ratings (note) Electrical ratings are given by the fuse.

Nominal voltage (III/3) 800V

Rated surge voltage (III/3) 8kV

Rated current 10A

More

Connection data

Total number of connection points 2

Total number of potentials 2

Number of levels 1

Connection 1

Connection technology CAGE CLAMP®

Actuation type Operating tool

Connectable conductor materials Copper

Aluminum

Note on connectable conductor materials Terminating Aluminum Conductors

WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste is used for termination.

“Alu-Plus” Contact Paste Advantages:

Automatically destroys the oxide film during clamping.

Prevents fresh oxidation at the clamping point.

Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).

Provides long-term protection against corrosion.

Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, aluminum conductors must first be cleaned with a blade and then immediately be inserted into the clamping units filled with “Alu-Plus” Contact Paste.

For spring clamp connections with PUSH WIRE® connection technology, WAGO recommends that the aluminum conductor first be cleaned and then immediately inserted into the clamping unit filled with “Alu-Plus” contact paste.

It is also possible to apply WAGO “Alu-Plus” additionally on the whole surface of the aluminum conductor before termination.

Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::

2.5 mm² = 16 A

4 mm² = 22 A

Solid conductor 0.08 … 4 mm² / 28 … 12 AWG

More

Physical data

Width 8 mm / 0.315 inch

Height 60 mm / 2.362 inch

Depth from upper edge of DIN-rail 60 mm / 2.362 inch

Mechanical data

Design angled

Mounting type DIN-35 rail

Marking level Center marking

Art der Sicherung Cylindrical fuse 5 x 20 mm

Material data

Color gray

Insulation material Polyamide (PA66)

Flammability class per UL94 V0

Fire load 0.327MJ

Weight 17.3g
