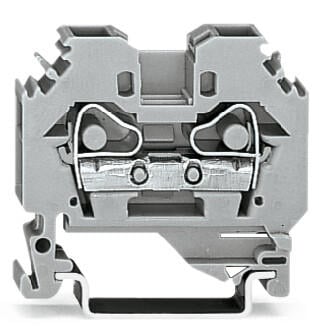

WAGO 282-101 2-conductor through terminal block; 6 mm²; lateral marker slots; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 6,00 mm²; gray

WAGO 812-104 Busbar terminal block; for (10 x 3) mm busbars; 12-pole; without push-buttons; 4 mm²; 4,00 mm²; blue

Product Name : WAGO 282-101 2-conductor through terminal block; 6 mm²; lateral marker slots; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 6,00 mm²; gray

Directions

Physical data

Width 8 mm / 0.315 inch

Height 46.5 mm / 1.831 inch

Depth from upper edge of DIN-rail 37 mm / 1.457 inch

Mechanical data

Design horizontal type

Mounting type DIN-35 rail

Marking level Side marking

Material data

Color gray

Insulation material Polyamide (PA66)

Fire load 0.185 MJ

Weight 11.4 g
