Home  >   Products  >  WAGO  >   WAGO 282-698/281-434 2-conductor fuse terminal block; for automotive blade-style fuses; with test option; with blown fuse indication by LED; 24 V; for DIN-rail 35 x 15 and 35 x 7.5; 6 mm²; CAGE CLAMP; 6,00 mm²; gray

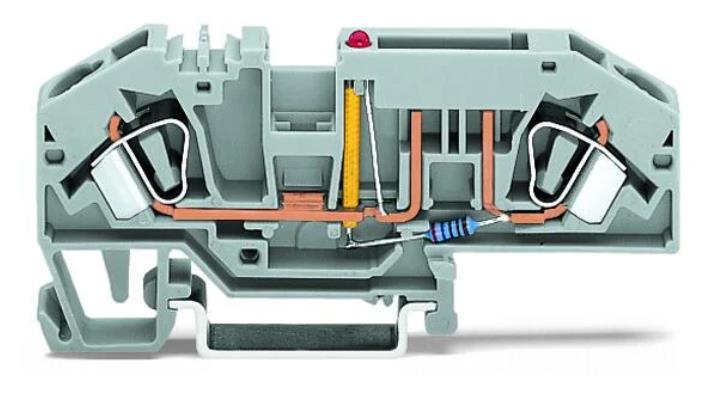

WAGO 282-698/281-434 2-conductor fuse terminal block; for automotive blade-style fuses; with test option; with blown fuse indication by LED; 24 V; for DIN-rail 35 x 15 and 35 x 7.5; 6 mm²; CAGE CLAMP; 6,00 mm²; gray

WAGO 3-conductor ground terminal block; 1.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 1,50 mm²; green-yellow 279-687
Product Name : WAGO 282-698/281-434 2-conductor fuse terminal block; for automotive blade-style fuses; with test option; with blown fuse indication by LED; 24 V; for DIN-rail 35 x 15 and 35 x 7.5; 6 mm²; CAGE CLAMP; 6,00 mm²; gray
Directions

Ratings per IEC/EN

Ratings (note) Electrical ratings are given by the fuse and blown fuse indication.

Nominal voltage (III/3) 400V

Rated impulse voltage (III/3) 6kV

Rated current 25A

Note (rated current) LED power consumption: 4.8 mA

Ratings (note) 2 Blade-style fuses: Observe touch-proof protection for 42 V and higher voltages!

Rated current 2 30A

Operation status indicator 24 V

Legend (ratings) (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection data

Total number of connection points 2

Total number of potentials 2

Number of levels 1

Connection 1

Connection technology CAGE CLAMP®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.2 … 6 mm² / 24 … 10 AWG

Fine-stranded conductor 0.2 … 6 mm² / 24 … 10 AWG

Strip length 12 … 13 mm / 0.47 … 0.51 inches

Wiring direction Front-entry wiring
