WAGO 284-901, 2-conductor through terminal block; 10 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 10,00 mm²; gray

WAGO 812-104 Busbar terminal block; for (10 x 3) mm busbars; 12-pole; without push-buttons; 4 mm²; 4,00 mm²; blue

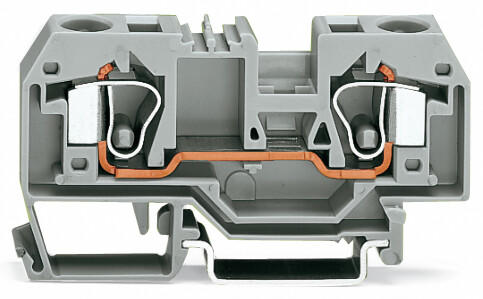

Product Name : WAGO 284-901, 2-conductor through terminal block; 10 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 10,00 mm²; gray

Directions

Electrical data
IEC Approvals
Ratings per	IEC/EN 60947-7-1
Rated voltage (III / 3)	800 V
Rated surge voltage (III/3)	8 kV
Rated current	57 A
Legend (ratings)	(III / 3) ≙ Overvoltage category III / Pollution degree 3
Connection data
Connection technology	CAGE CLAMP®
Actuation type	Operating tool
Connectable conductor materials	Copper
Solid conductor	0.2 … 10 mm² / 24 … 8 AWG
Fine-stranded conductor	0.2 … 10 mm² / 24 … 8 AWG
Strip length	12 … 13 mm / 0.47 … 0.51 inch
Total number of connection points	2
Total number of potentials	1
Number of levels	1
Wiring type	Front-entry wiring
More
Physical data
Width	10 mm / 0.394 inch
Height	78 mm / 3.071 inch
Depth from upper edge of DIN-rail	35 mm / 1.378 inch
Mechanical data
Design	horizontal type
Mounting type	DIN-35 rail
Marking level	Center marking
Material data
Color	gray
Insulation material	Polyamide (PA66)
Fire load	0.348 MJ
Weight	23.1 g
