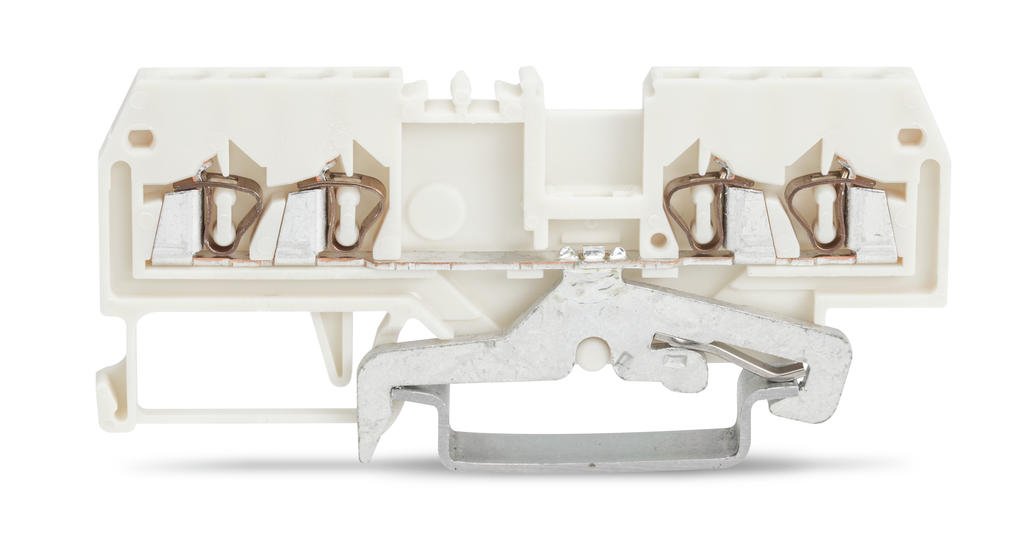

Details
Electrical data
Ratings per IEC/EN
Ratings per IEC/EN 60947-7-2
Connection data
Total number of connection points 4
Total number of potentials 1
Number of levels 1
Connection 1
Connection technology CAGE CLAMP®
Actuation type Operating tool
Connectable conductor materials Copper
Solid conductor 0.08 … 1.5 mm² / 28 … 16 AWG
Fine-stranded conductor 0.08 … 1.5 mm² / 28 … 16 AWG
More
Physical data
Width 4 mm / 0.157 inch
Height 73 mm / 2.874 inch
Depth from upper edge of DIN-rail 27 mm / 1.063 inch
Mechanical data
Design horizontal type
Mounting type DIN-35 rail
Marking level Center marking
Material data
Color white
Insulation material Polyamide (PA66)
Flammability class per UL94 V0
Fire load 0.208MJ
Weight 13.4g
Commercial data
PU (SPU) 100 Stück
Packaging type box
Country of origin DE
GTIN 4045454084462
Customs tariff number 85369010000
