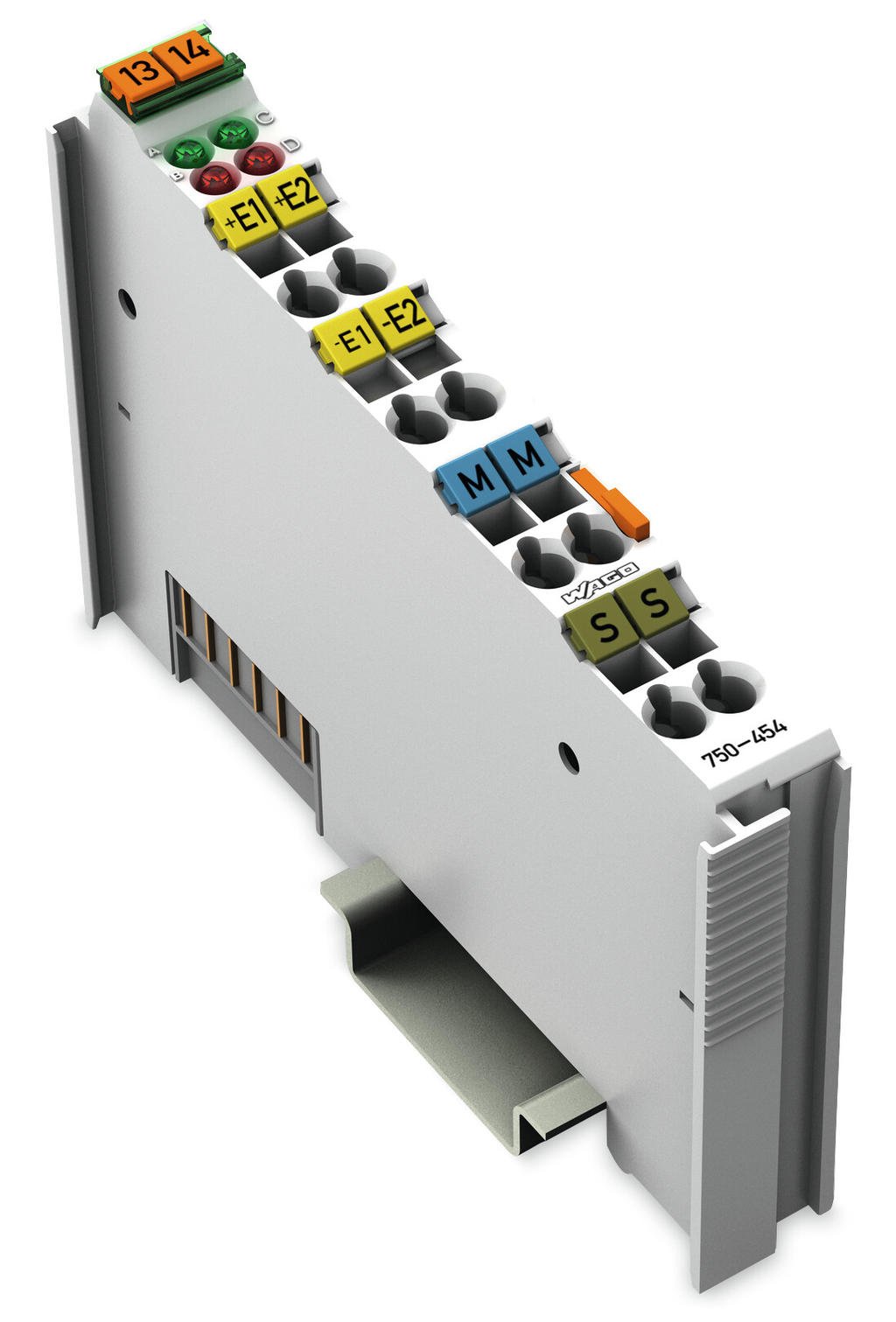

Technical data

Number of analog inputs 2

Number of Channels 2

Signal type Current

Signal type (current) DC 4 … 20 mA

Sensor connection 2 x (2-wire)

Input voltage (max.) 35 VSignal characteristic DifferentialResolution [bit] 12 BitInput resistance (max.) 220 ΩData width 2 x 16-bit data; 2 x 8-bit control/status (optional)Conversion time (typ. ≤) 2 msMeasurement error, reference temperature 25 °CMeasurement error, deviation max (upper-range value) ≤± 0.2 %Temperature error max. (upper-range value) ≤± 0.01 %/KSupply voltage (system) 5 VDC; via data contactsPower consumption (5 V system supply) 70 mAIsolation 500 V system/field

Connection data

Connection technology: inputs / outputs 8 x CAGE CLAMP®

Connection type (1) Inputs/Outputs

Solid conductor 0.08 … 2.5 mm² / 28 … 14 AWG

Fine-stranded conductor 0.08 … 2.5 mm² / 28 … 14 AWG

Strip length 8 … 9 mm / 0.31 … 0.35 inch

Physical data

Width 12 mm / 0.472 inch

Height 100 mm / 3.937 inch

Depth 69.8 mm / 2.748 inch

Depth from upper edge of DIN-rail 62.6 mm / 2.465 inch

Mechanical data

Mounting type DIN-35 rail

Material data

Color light gray

Housing material Polycarbonate; polyamide 6.6

Fire load 0.945 MJ

Weight 49.8 g

Conformity marking CE
