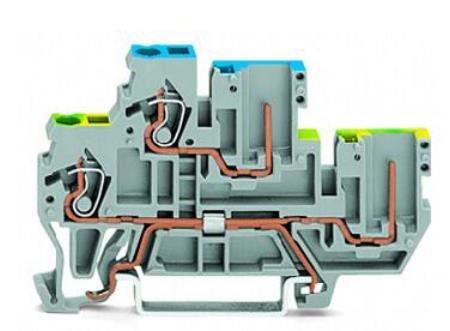

Product Name : WAGO 870-127 1-conductor-1-pin double deck receptacle terminal block; Ground conductor through terminal block; 2.5 mm²; gray

Directions

Notes

Safety information 1 Max. insulation diameter: 4.4 mm

Safety information 2 2-conductor female plugs cannot be used.

Electrical data

Ratings per IEC/EN

Nominal voltage (III/3) 500V

Rated impulse voltage (III/3) 6kV

Rated current 16A

Legend (ratings) (III / 3) ≙ Overvoltage category III / Pollution degree 3

Power loss

Power loss, per pole (potential) 0.341W

Rated current IN for specified power loss 16A

Resistance value for specified, current-dependent power loss 0.001Ω

Connection data

Total number of connection points 2

Total number of potentials 2

Number of levels 2

Connection 1

Connection technology CAGE CLAMP®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 … 2.5 mm² / 28 … 12 AWG

Fine-stranded conductor 0.08 … 4 mm² / 28 … 12 AWG

Fine-stranded conductor; with insulated ferrule 0.08 … 1.5 mm² / 28 … 14 AWG

Strip length 6 … 7 mm / 0.24 … 0.28 inches

Wiring direction Front-entry wiring
