WAGO Item no. 2002-1211/1000-410 Component terminal block; 2-conductor; with diode 1N4007; anode, left side; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; 2,50 mm²; gray

WAGO 3-conductor ground terminal block; 1.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 1,50 mm²; green-yellow 279-687

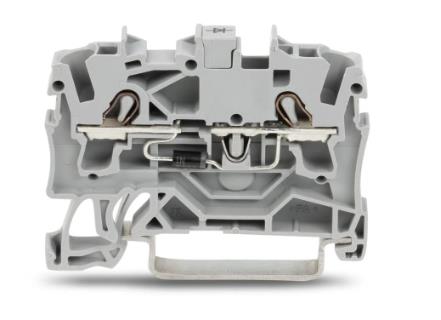

Product Name : WAGO Item no. 2002-1211/1000-410 Component terminal block; 2-conductor; with diode 1N4007; anode, left side; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; 2,50 mm²; gray

Directions

Electrical data

Nominal voltage 250V

Reverse voltage 1,000V

Ratings per IEC/EN

Ratings per IEC/EN 60947-7-1

Rated current 0.5A

Connection data

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Number of jumper slots 1

Connection 1

Connection technology Push-in CAGE CLAMP®

Actuation type Operating tool

Connectable conductor materials Copper

Nominal cross-section 2.5 mm²

Solid conductor 0.25 … 4 mm² / 22 … 12 AWG

Solid conductor; push-in termination 0.75 … 4 mm² / 18 … 12 AWG

Fine-stranded conductor 0.25 … 4 mm² / 22 … 12 AWG

Fine-stranded conductor; with insulated ferrule 0.25 … 2.5 mm² / 22 … 14 AWG

Fine-stranded conductor; with ferrule; push-in termination 1 … 2.5 mm² / 18 … 14 AWG

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

Strip length 10 … 12 mm / 0.39 … 0.47 inches

Wiring direction Front-entry wiring
