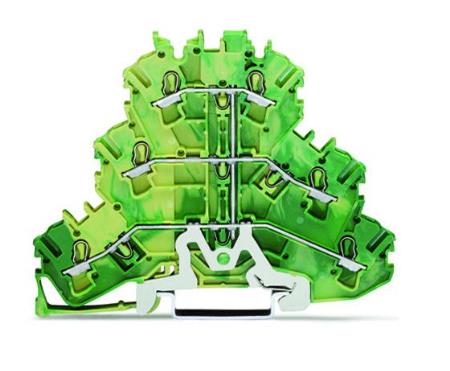

WAGO Item no. 2002-3207 Triple-deck terminal block; 6-conductor ground terminal block; 2.5 mm²; PE; suitable for Ex e II applications; without marker carrier; internal commoning; for DIN-rail 35 x 15 and 35 x 7.5; 2,50 mm²; green-yellow

WAGO 3-conductor ground terminal block; 1.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 1,50 mm²; green-yellow 279-687

Product Name : WAGO Item no. 2002-3207 Triple-deck terminal block; 6-conductor ground terminal block; 2.5 mm²; PE; suitable for Ex e II applications; without marker carrier; internal commoning; for DIN-rail 35 x 15 and 35 x 7.5; 2,50 mm²; green-yellow

Directions

Electrical data

Ratings per IEC/EN

Ratings per IEC/EN 60947-7-2

Ex information

Reference hazardous areas See Downloads – Documentation – Additional Information: Technical Section; Technical explanations

Ratings per ATEX: PTB 03 ATEX 1162 U / IECEx: PTB 03.0004U (Ex eb IIC Gb)

Connection data

Total number of connection points 6

Total number of potentials 1

Number of levels 3

Number of jumper slots 5

Connection 1

Connection technology Push-in CAGE CLAMP®

Actuation type Operating tool

Connectable conductor materials Copper

Nominal cross-section 2.5 mm²

Solid conductor 0.25 … 4 mm² / 22 … 12 AWG

Solid conductor; push-in termination 0.75 … 4 mm² / 18 … 12 AWG

Fine-stranded conductor 0.25 … 4 mm² / 22 … 12 AWG

Fine-stranded conductor; with insulated ferrule 0.25 … 2.5 mm² / 22 … 14 AWG

Fine-stranded conductor; with ferrule; push-in termination 1 … 2.5 mm² / 18 … 14 AWG

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

Strip length 10 … 12 mm / 0.39 … 0.47 inches

Wiring direction Front-entry wiring
