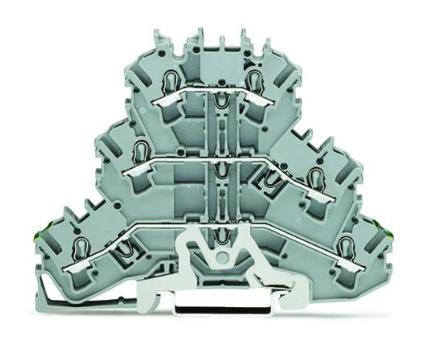

WAGO Item no. 2002-3227 Triple-deck terminal block; Ground conductor/through/through terminal block; 2.5 mm²; PE/L/L; suitable for Ex e II applications; without marker carrier; for DIN-rail 35 x 15 and 35 x 7.5; 2,50 mm²; gray

WAGO 3-conductor ground terminal block; 1.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 1,50 mm²; green-yellow 279-687

Product Name : WAGO Item no. 2002-3227 Triple-deck terminal block; Ground conductor/through/through terminal block; 2.5 mm²; PE/L/L; suitable for Ex e II applications; without marker carrier; for DIN-rail 35 x 15 and 35 x 7.5; 2,50 mm²; gray

Directions

Electrical data

Ratings per IEC/EN

Ratings per IEC/EN 60947-7-1

Nominal voltage (III/3) 500V

Rated impulse voltage (III/3) 6kV

Rated current 24A

Rated current 2 28A

Legend (ratings) (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings per UL

Approvals per UL 1059

Rated voltage UL (Use Group B) 300V

Rated current UL (Use Group B) 20A

Rated voltage UL (Use Group C) 300V

Rated current UL (Use Group C) 20A

Rated voltage UL (Use Group D) 600V

Rated current UL (Use Group D) 5A

Ratings per CSA

Approvals per CSA 22.2 No 158

Rated voltage CSA (Use Group B) 600V

Rated current CSA (Use Group B) 20A

Rated voltage CSA (Use Group C) 600V

Rated current CSA (Use Group C) 20A

Ex information

Reference hazardous areas See Downloads – Documentation – Additional Information: Technical Section; Technical explanations

Ratings per ATEX: PTB 03 ATEX 1162 U / IECEx: PTB 03.0004U (Ex eb IIC Gb)

Rated voltage EN (Ex e II) 440V

Rated current (Ex e II) 19A

Rated current (Ex e II) with jumper 17A

Power loss

Power loss, per pole (potential) 0.96W

Rated current IN for specified power loss 24A

Resistance value for specified, current-dependent power loss 0.001Ω
