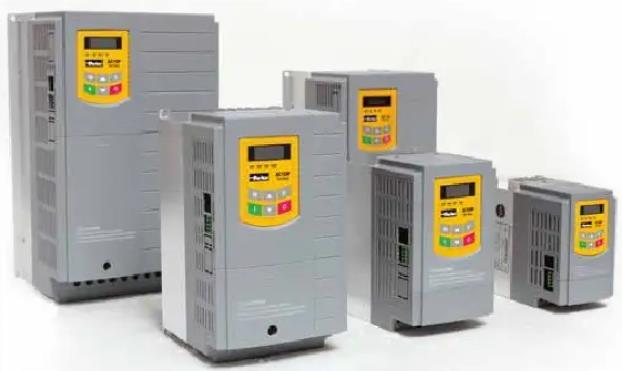

The AC10P variable speed micro drive is a simple, reliable and economical solution to every-day motor control applications requiring speed or torque control within the power range of 0.2kW to 180kW. Having compact dimensions and features normally only associated with higher specification AC drives, including, sensorless vector mode, close loop vector control mode,output frequency up to 590 Hz, It is available in 230V and 400V versions with 150% overload for 60 seconds and in 12 frame sizes. Serial communication Modbus build in as Standard,Profibus DP & EtherCAT Optional, CanOpen, the AC10P provides an optimised solution for OEM machine builders who are looking for a compact, cost-effective, energy saving variable speed ac drive without compromising on performance.

Applications:
AC10P variable speed drives provide a no-fuss approach to general purpose industrial motor control applications across a wide range of industries, giving users the benefits of the inherent energy-saving properties of using a variable speed drive, as well as the improved reliability and extended service life benefits associated with smoother starting and stopping of regularly cycling loads. Typical applications for AC10P drives would include :
• Conveyor
• Centrifuge
• Fans
• Mixers
• Packaging Machines
• Textile Machines
• Strapping Machines
• Labelling Machines
• Industrial Washing Machines
• Machine Tool Spindles
• Roller Doors

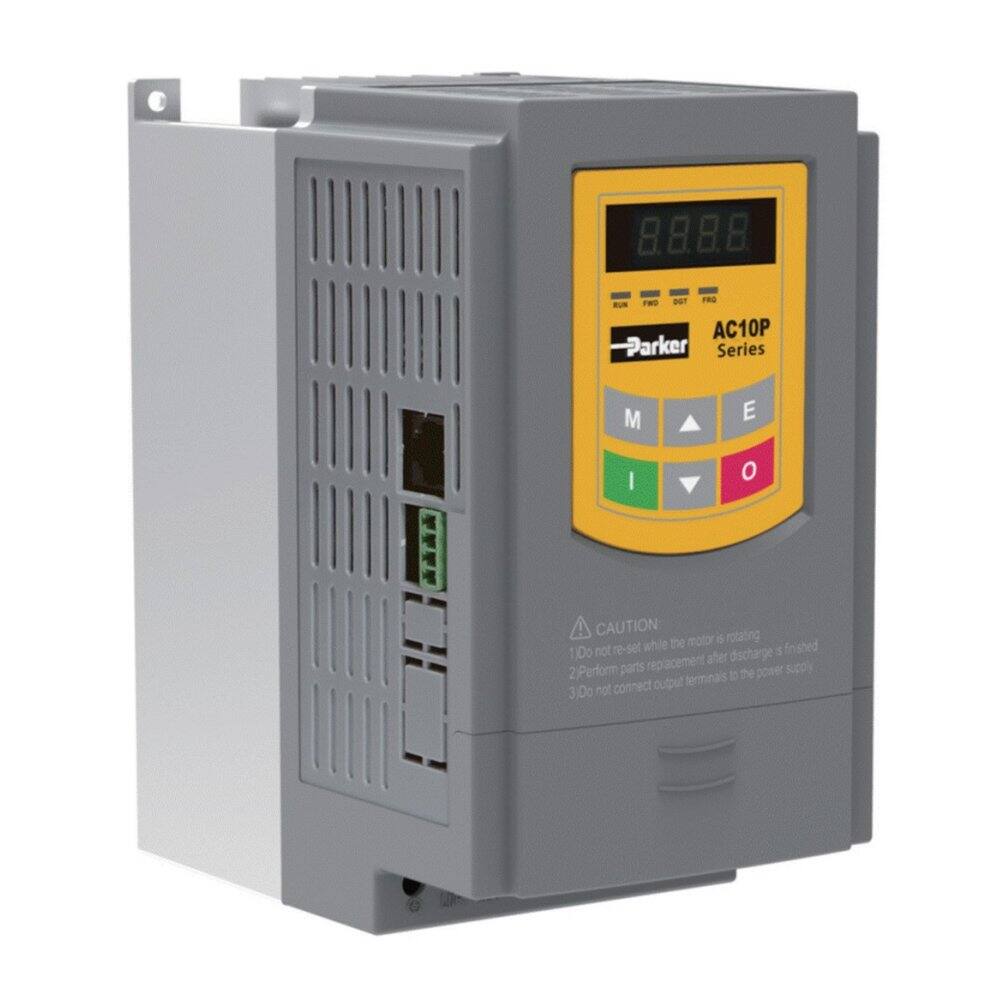

PRODUCT TYPE AC Variable Speed Drive
PRODUCT SERIES AC10P
OUTPUT POWER 3 kW
INPUT VOLTAGE 3*230VAC
MODES OF CONTROL V/Hz
Sensorless Vector
close loop vector
COMMUNICATION INTERFACE RS232 / RS485
Modbus
Profibus DP
Canopen
Ethercat
SPECIFICATIONS MET CE (EMC & LVD)
Overvoltage Category III
OPERATING TEMPERATURE 0-40C (derate up to 50C max) °C
32-104F (derate up to 122F max) °F
OPERATING ALTITUDE Up to 1000m ASL (derate > 1000m)
OVERLOAD RATING 150% for 60s

AC10P OVERVIEW
