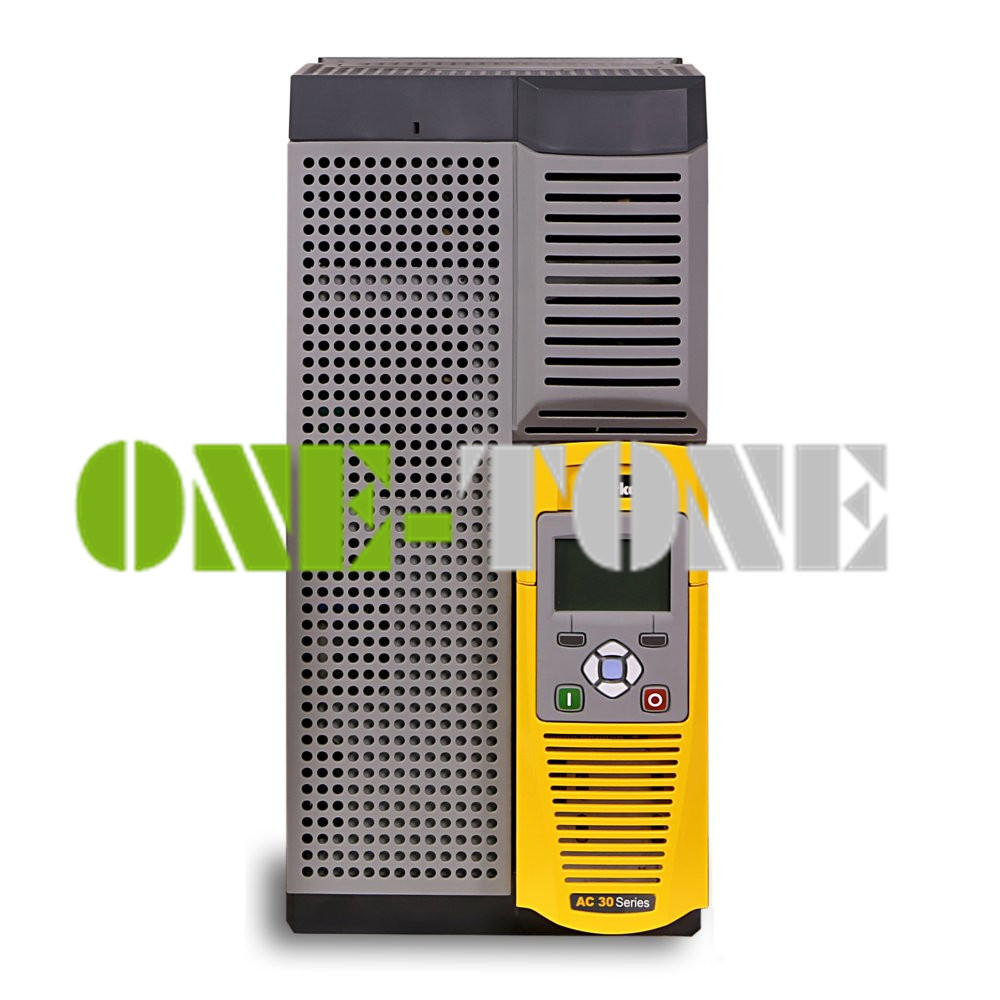

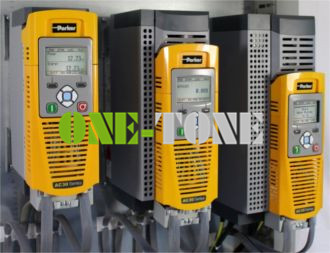

Features

Sensorless Vector: Yes

Regen Type: No Regen

Power / Current: 45kW

Common Supply: Yes

Drive Type: AC Inverter Drives

P-Mag Control: Yes

Standard Comms: Modbus TCP/IP

EMC Filter: Yes

Active Front End: Yes

Supply Input: 3PH, 380 / 480V

Option Comms 1: No

Sensorless Vector Control: Yes

Permanent Magnet AC: Yes

Mounting: Panel Mount

Brand: Parker Hannifin

Closed-Loop Vector Control: Yes

Manufacturers Series: AC30

Closed-Loop Vector: Yes

Servomotor: No

V/Hz Control: Yes

Output: NA

Power: 45kW

Open Loop (V/Hz): Yes

Option Comms 2: No

Ingress Protection Code: IP20

DETAILS

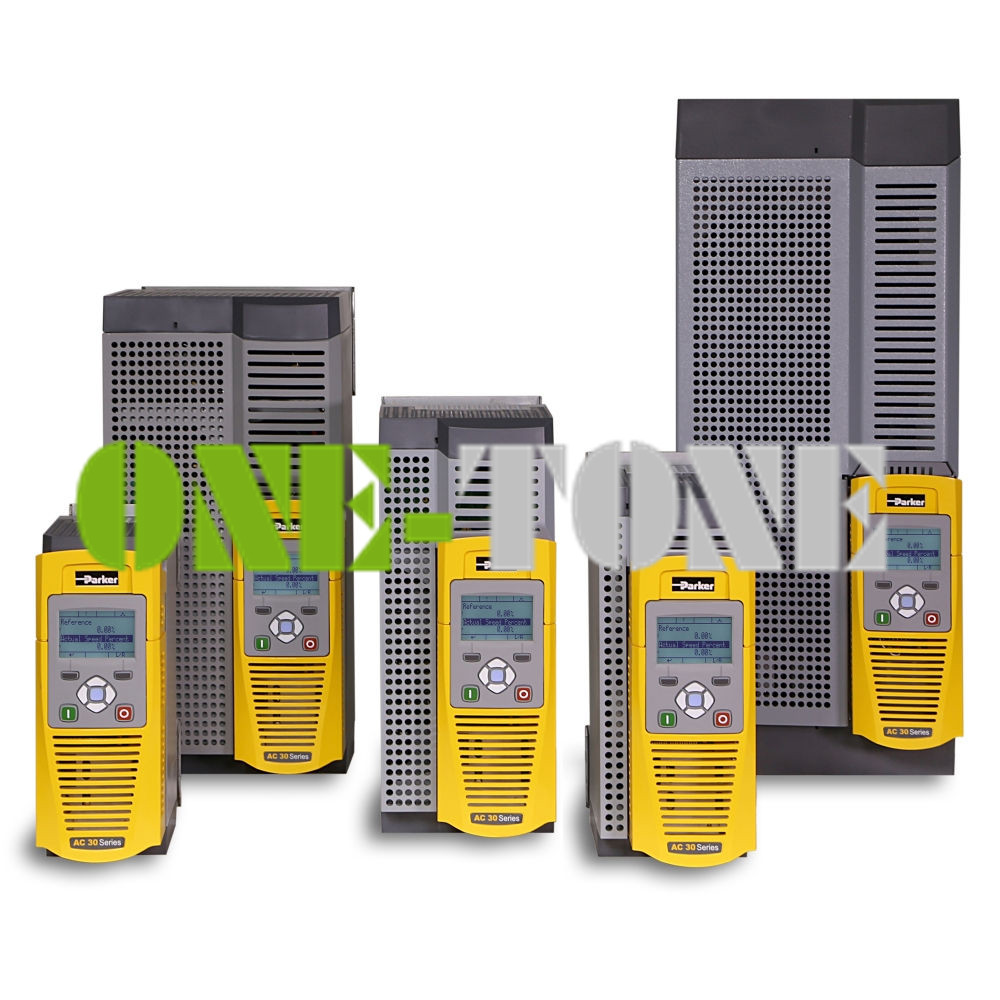

3PH, DC 510V / 650V Frame D (1.1, 1.5, 2.2, 3, 4, 5.5) kW [TOF: 74V-4D0012-BE-2S-0000] Frame E (7.5, 11) kW [TOF: 74V-4E0023-BE-2S-0000] Frame F (15, 18) kW [TOF: 74V-4F0038-BE-2S-0000] Frame G (22, 30, 37) kW [TOF: 74V-4G0073-BE-2S-0000] Frame H (45, 55, 75) kW [TOF: 74V-4H0145-BE-2S-0000] Frame J (90, 110, 132) kW [TOF: 74V-4J0260-BE-2S-0000] Frame K (160, 200, 250) kW [TOF: 74V-4K0440-BE-2S-0000]

Frame Dimensions: Frame D (100(W) x 286(H) x 255(D) mm) – approx. 4.5kg Frame E (125(W) x 333(H) x 255(D) mm) – approx. 6.8kg Frame F (150(W) x 383(H) x 255(D) mm) – approx. 10kg Frame G (220(W) x 480(H) x 287(D) mm) – approx. 22.3kg Frame H (260(W) x 670(H) x 316(D) mm) – approx. 42.8kg Frame J (330(W) x 800(H) x 374(D) mm) – approx. 89kg Frame k (400(W) x 1310(H) x 457(D) mm) – approx. 125kg

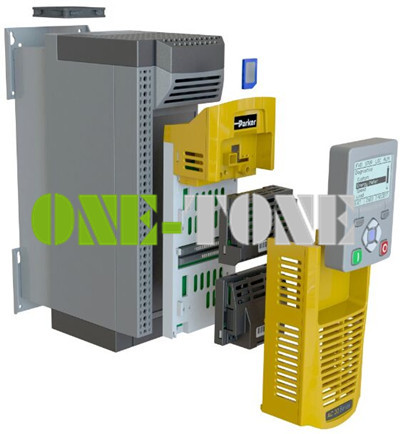

Options: There are a number of external options available for the drive for the drive: Blank Plate [7001-01-00] Keypad [7001-00-00] Control Module (Versatile) [30V-2S-0000] Control Module (Advanced Inverter) [30P-2S-0000] Control Module (Advanced Inverter) [30D-2S-0000]

control wiring connections

Dimensions -- Panel Mounting


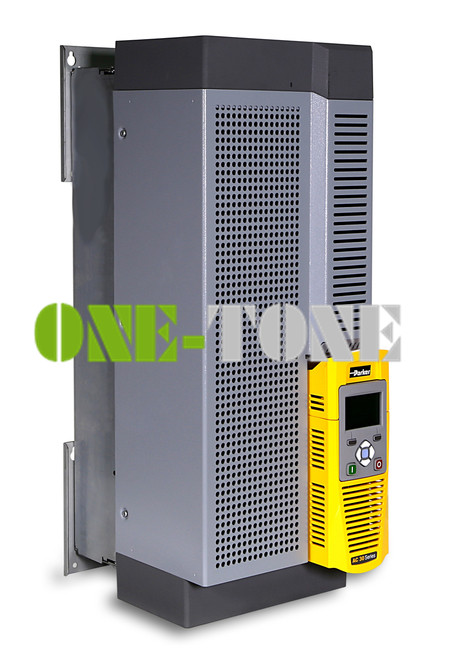

Dimensions -- Through Panel Mounting


Technical Characteristic


Applications
