590P PARKER DC DRIVE Power Board

Parker DC Drive 590 drive controls the dc motor with the use of Control Loops – an inner Current Loop and an outer Speed Loop.

The Parker 590 Integrator series of highly advanced DC drives to meet the demands of the most complex motor control applications. Extensive application software (including winder control as standard) together with Function Block Programming and configurable I/O creates a total drive system in a single module.

The Integrator series is a single family of both AC drives (AC690P) and DC drives (DC590P) that provides the benefits of common programming, set-up and communication across both technologies.

The DC590P Integrator series highly advanced DC drive meets the demands of the most complex motor control applications.

Extensive application software (including winder control as standard) together with Function Block Programming and configurable I/O creates a total drive system in a single module.

590P PARKER DC DRIVE AH470280U004 500V 35A 4Q Power Board

Features:

Current:                               35A

Active Front End:                 No

Power / Current:                  35A

Sensorless Vector:               No

Option Comms 2:                No

Closed-Loop Vector:           No

Mounting: Panel Mount

EMC Filter:                           No

Regen Type:                        4Q

Option Comms 1: No

Brand: Parker Hannifin

Permanent Magnet AC:       No

Supply Input:                       3PH, 220 / 500V

Common Supply: No

Standard Comms:                RS485 ASCII / BINARY

Ingress Protection Code:     IP20

Current Extra:                      4Q (Regen)

Manufacturers Series:         590P

Drive Type:                          DC Converter Drives

Servomotor:                        No

Output:                               NA

Open Loop (V/Hz):              No

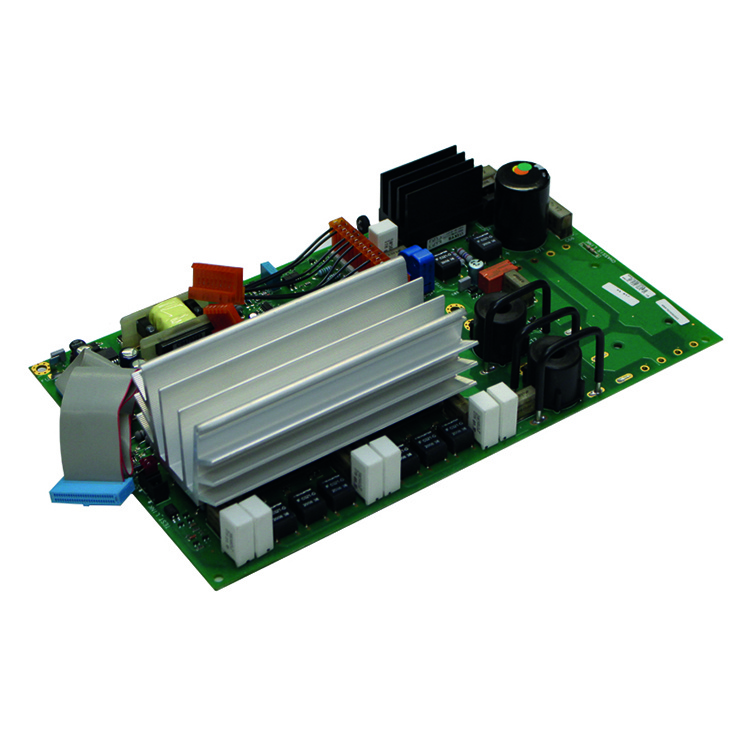

Power Board for Parker SSD DC Thyristor Drive in 35A x Line Voltage 220-500V Rating.

Part number is AH470280U004 (Also known as AH470280T004 or AH470280U004-1 when purchased as a spare)

Manufacturer is Parker SSD Drives (Parker Hannifin Automation Division), previously known as SSD Drives, Eurotherm Drives and Shackleton System Drives.

AH470280T004 AH470280U004 AH470280T003 AH470280U001 AH470280U003 590P 35A 591P 15A power control drive board high quality best price fast delivery
