Part No: 6901-00-G (6901/00/G)
Description:

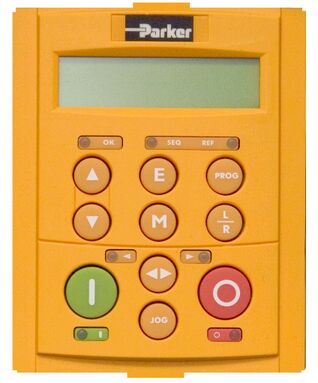

Parker SSD 6901-00-G Keypad/Operator Station & Alpha Numeric Display.
For use with all of the following Parker SSD Drives:-
- AC 690+ (or 690P)
- AC 890SD & 890CD (Factory fitted on 37kW and up but compatible with lower sizes)
- DC 590+ (or 590P)
- DC 591+ (or 591P)
- DC 590+DRV (or 590P-DRV)
- DC 591+DRV (or 591P-DRV)
- Older style "Grey" 590C Drives (When using 590PXD Door)
- AC 605 Drives (Frames A, B & C)
- AC 650 / 650V (Can be fitted to all sizes of 650/650V when 'DISPR'- or 'A2' appears in the part number)
- AC 584SV (Can be used to replace the old 5841 keypad)
It provides Local control of the drive, monitoring and complete access for application programming.
For example, you can start and stop the motor, check on diagnostic information, and change parameters values on the drive. The keypad fits to the front of the drive, however, you can also remote-mount the keypad up to 3 metres away using the 6052 Remote Mounting Kit.
Manufacturer part number is 6901-00-G. Used to be Eurotherm Teal Blue and the part number was 6901-00-B or 6901/00, now manufactured in Parker Grey. Sometimes specified as 6901-00 or LA464948U004.
Provides access to all Macros, Parameters and setup features of the 650V, but DSELite is still required to set-up the Logic, Math, other function blocks and to configure the internal block diagram.
IMPORTANT: We strongly suggest to save the configuration to the 6901 op-station during commissioning. This will allow you to restore your program into a new drive of the same rating (from the memory in the keypad) should you ever have a breakdown. This function can also be performed to clone identical drives.
SAVE TO OP will upload all parameter settings from the drive to the Keypad.
LOAD FROM OP will download all parameter settings from the Keypad to the drive.
The 6901-00-G can be used to replace the 5841 keypad used on the 584SV series AC Drives.
