PERFORMANCE CHARACTERISTICS
BRAND Parker
PRODUCT TYPE DC Drive
DRIVE AXIS TYPE Single Axis Technology
PRODUCT SERIES DC590PR
INPUT VOLTAGE 3*110-220VAC
3*220-500VAC
CONTINUOUS OUTPUT CURRENT RATING 20-165A
OUTPUT POWER 1 - 75 HP
COMPATIBLE MOTOR TYPE DC Brushed Servo
COMPATIBLE FEEDBACK DEVICE Armature Voltage
Tachometer
Encoder
MODES OF CONTROL Regenerative
Non-Regenerative
Stack Controller
COMMUNICATION INTERFACE RS232 / RS485
CANopen
ControlNet
DeviceNet
Profibus
Ethernet TCP/IP
Link Communications
Modbus
OPERATING TEMPERATURE frame 1: 0° - 45 °C frame 2: 0° - 40 °C
32 - 113F (frame 1)
32 - 104F (frame 2) °F
OPERATING ALTITUDE Up to 500m ASL (derate > 500m)
OVERLOAD RATING 150% for 30s
200% for 10s
(depending on drive output current, refer to manual for details)
SPECIFICATIONS MET CE (EMC & LVD)
Overvoltage Category III
Pollution Degree II
UL Listed
cUL Listed

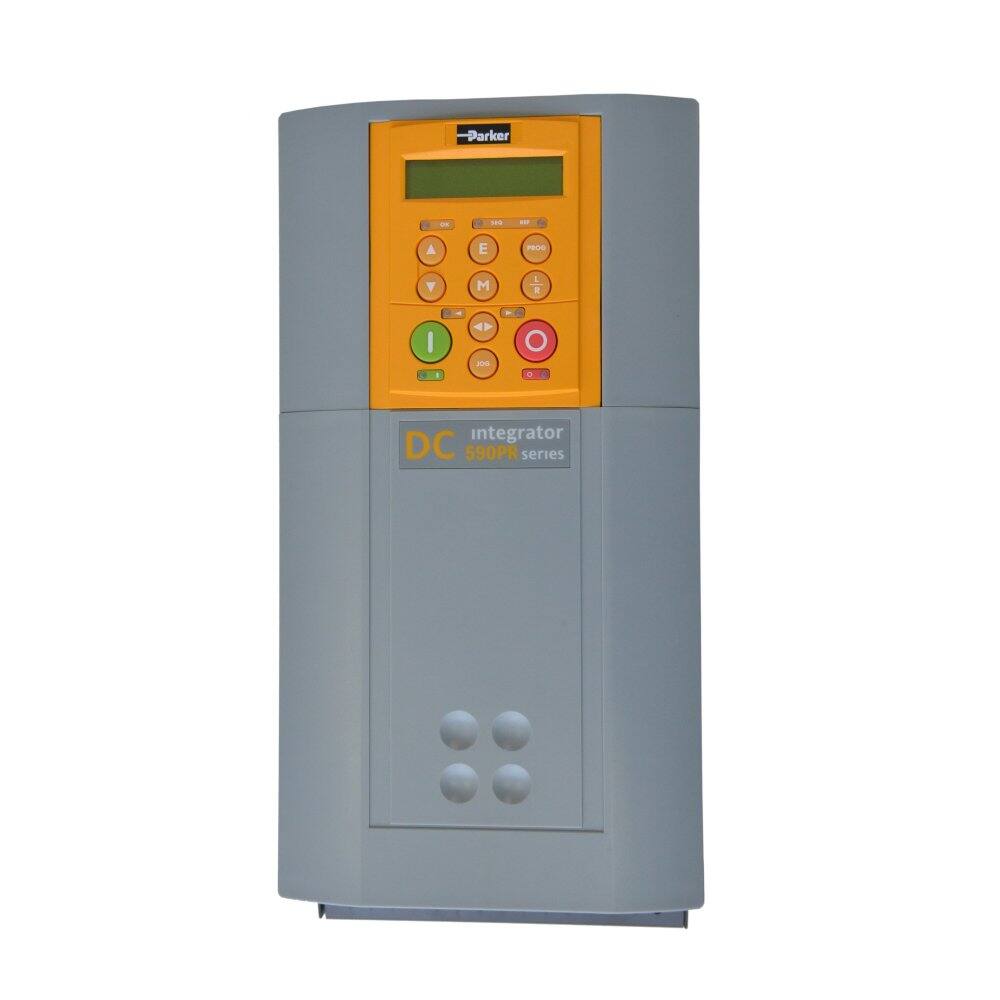

The DC590PR is a newly developed compact DC motor drive. With its state-of-the-art advanced 32-bit control architecture, the DC590PR drive delivers highly functional and flexible control suited to a whole host of industrial applications. It has a range of interface options which are compatible with the most common feedback devices, enabling simple motor control through to the most sophisticated multi-motor system. Armature voltage feedback is standard without the need for any interface option.
• The best flexibility for application development:
The best flexibility for application development, DC590PR inherits from over 40 years of DC motor application knowledge and motor control experience, simplify the operation by typical application block and offers more flexible program blocks.
• Latest technology & algorithm:
New introduced USB interface offers more friendly connection. With its self-tuning algorithm, the DC590PR can be configured Q/4Q and frame size within minutes.
• 590PR higher performance:
High resolution current feedback (0.06%) supplies more stable control performance. The operator interface allows easy monitoring of machine operation and simplifies maintenance.
Standardize with DC590P the same powerful function block programming software DSElite and the same feedback options and communication fieldbus: Profibus-DP, CANopen, Modbus+, Ethernet and DeviceNet.
• Keep I/O same as DC590P • Input voltage is upto 500V • Provide internal field current • Keep external field current connectors
Spares List (Frames 1-2) | ||||||
Common Spares | ||||||
Control Board | Ribbon Cable | |||||
Software Version | Status * | |||||
10.x | AH860023U001 | CURRENT | - | |||
* Do not attempt to upgrade by fitting a later software version Control Board. You may experience hardware compatibility problems. If in doubt, contact Parker. | ||||||
Frame 1-2 | ||||||
Product | Power Board | Terminal Board | Armature Thyristor | Field Bridge | Fan | Fan Assy |
591PR/0020/500/ | AH860021U512 | - | CF385522U016 | LA860077 | - | - |
590PR/0020/500/ | AH860021U514 | - | CF385522U016 | LA860077 | - | - |
591PR/0035/500/ | AH860021U512 | - | CF385522U016 | LA860077 | - | - |
590PR/0035/500/ | AH860021U514 | - | CF385522U016 | LA860077 | - | - |
591PR/0045/500/ | AH860021U512 | - | CF385524U016 | LA860077 | - | - |
590PR/0045/500/ | AH860021U514 | - | CF385524U016 | LA860077 | - | - |
591P/0075/500/ | AH860021U512 | - | CF385524U016 | LA860077 | DL860001 | LA860042 |
590P/0075/500/ | AH860021U514 | - | CF385524U016 | LA860077 | DL860001 | LA860042 |
591P/0110/500/ | AH860021U512 | - | CF385524U016 | LA860077 | DL860002 | LA860041 |
590P/0110/500/ | AH860021U514 | - | CF385524U016 | LA860077 | DL860002 | LA860041 |
591P/0165/500/ | AH860021U512 | - | CF385525U016 | LA860077 | DL860002 | LA860041 |
590P/0165/500/ | AH860021U514 | - | CF485525U016 | LA860077 | DL860002 | LA860041 |
591PR/0020/220/ | AH860021U512 | - | CF385522U016 | LA860077 | - | - |
590PR/0020/220/ | AH860021U514 | - | CF385522U016 | LA860077 | - | - |
591PR/0035/220/ | AH860021U512 | - | CF385522U016 | LA860077 | - | - |
590PR/0035/220/ | AH860021U514 | - | CF385522U016 | LA860077 | - | - |
591PR/0045/220/ | AH860021U512 | - | CF385524U016 | LA860077 | - | - |
590PR/0045/220/ | AH860021U514 | - | CF385524U016 | LA860077 | - | - |
