Product Description:

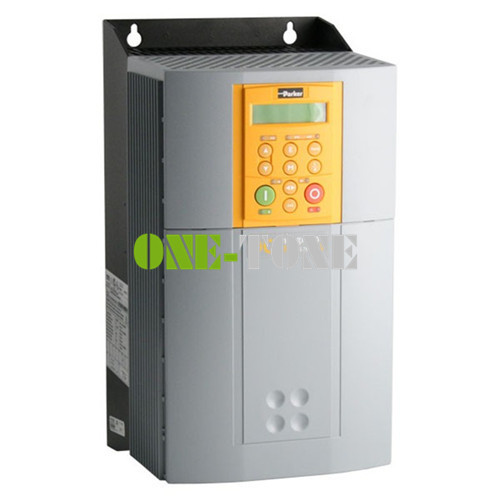

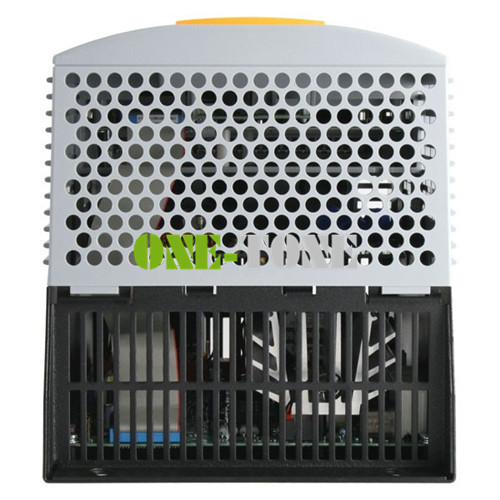

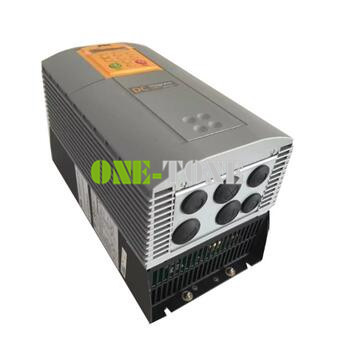

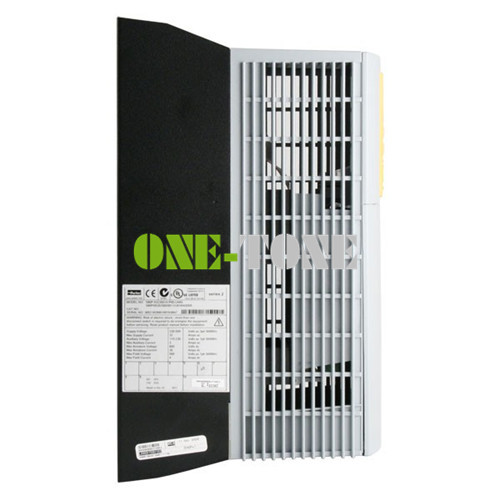

The DC590+ Series DC Digital Drive is designed for use in a suitable enclosure, with associated control equipment. The unit accepts a variety of standard three-phase ac supply voltages depending upon the model, and is suitable for the powering of DC shunt field and permanent magnet motors, providing controlled dc output voltage and current for armature and field.

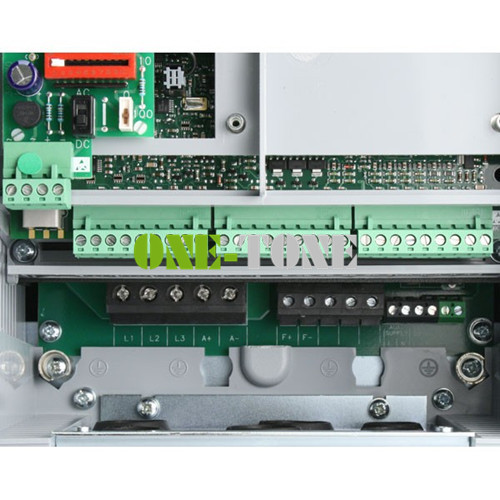

All units are designed for simple and economical panel mounting using keyhole slots. Plug-in control connectors simplify the fitting and removal of the unit to the panel.
Specification:
Model | 590PX/35A |
Input Voltage | 220-500V ±10% |
Frequency | 50/60Hz ±5% |
Max.Supply Current | 32A |
Auxiliary Voltage | 115-230V |
Output Current | 35A |
Max. Auxiliary Current | 3A |
Max.Armature Voltage | 600V |
Max.Field Voltage | 500V |
Max.Field Current | 4A |
Quadrant | FOUR |
Feedback | Tacho/Encoder/Armature feedback |
Dimension | 375*200*220mm |
Frame 1
Spare Parts & Optional Equipment
Item | Part Number |
EMC Installation Guidelines for Modules and Systems A Parker SSD Drives application manual detailing EMC requirements | HA388879 |
590 Digital Closed Loop Centre Winder A Parker SSD Drives application manual detailing the use of the block diagram to implement closed loop centre winders | HA388202 |
ConfigEd Lite Parker SSD Drives’ Windows-based block programming softwar | Order by name |
External AC Supply (RFI) Filter For Drives without internal filters, on cable runs in excess of 25 metres | Refer to Appendix E: “External AC Supply (RFI) Filters” for Part Numbers |
icrotach Option Board Two board types for connecting to a plastic or glass fiber Microtach encode • Glass • Plastic | AH386025U001 |
Encoder Option Board A board to interface to a wire-ended encoder | AH387775U001 (universal) |
Tacho Calibration Option Board A switchable calibration board for interfacing to AC/DC analog tachogenerators | AH385870U001 |
Comms Option Board (P1) Board Two board types for supporting EI BYSYNCH or PROFIBUS communication protocols for connection to other equipment. • EI BYSYNCH (RS422, RS485) • PROFIBUS | 6055/EI00/00 6055/PROF/00 6055/LINK/00 |
590 Digital Section Control A Parker SSD Drives application manual detailing the use of the block diagram to implement open and closed loop control of driven web section rolls | HA388664 |
