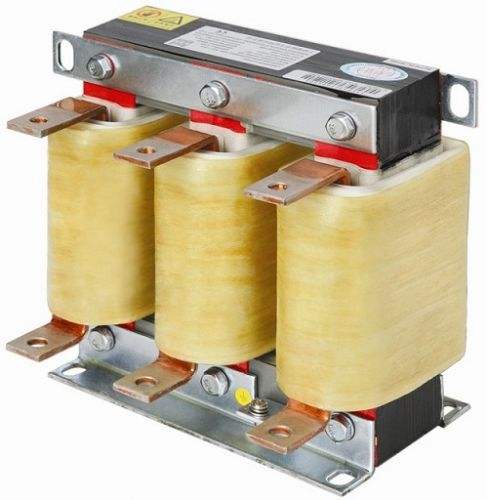

The reactor/choke is specially designed for Parker SSD DC/AC DRIVE.
We can also supply FUSE, TRANSFORMER, INDUCTOR, POWER BOARD, POWER MODULE, SCR, THYRISTOR, DIODE, CABLE, PANEL...
All the spare parts is available! You are welcome to contact us for any inquiry!
Tehnical parameter:
Rated Operating Power:φ3/380V/50Hz or 660V/50Hz;
Rated operating current:3A to 2000A @40℃
Reactive Strength:Core-Winding 3000VAC/50Hz/10mA/10S Free of arcing breakage (tested in factory)
Insulation Resistance:1000VDC, insulation resistance≥100MΩ
Reactor’S noise is less than 65dB(to be measured at the point 1 meter away from the reactor horizontally)
Protection class:IP00
