SIEMENS - 3TF3 Motor Starters - Contactors
Siemens has designed the full 3TF3 line to meet or exceed all worldwide standards and conventions. The 3TF3 series also includes a full assortment of accessories assuring you will always have the right product for your application.
3TF3 3-Pole with AC Coil
Frame Size | Amp | Three phase | Auxiliary | Catalog No. | ||||
Ratings | HP Ratings | Contacts | ||||||
UL/CSA | AC3 | AC1 | 230V | 460V | NO | NC | ||

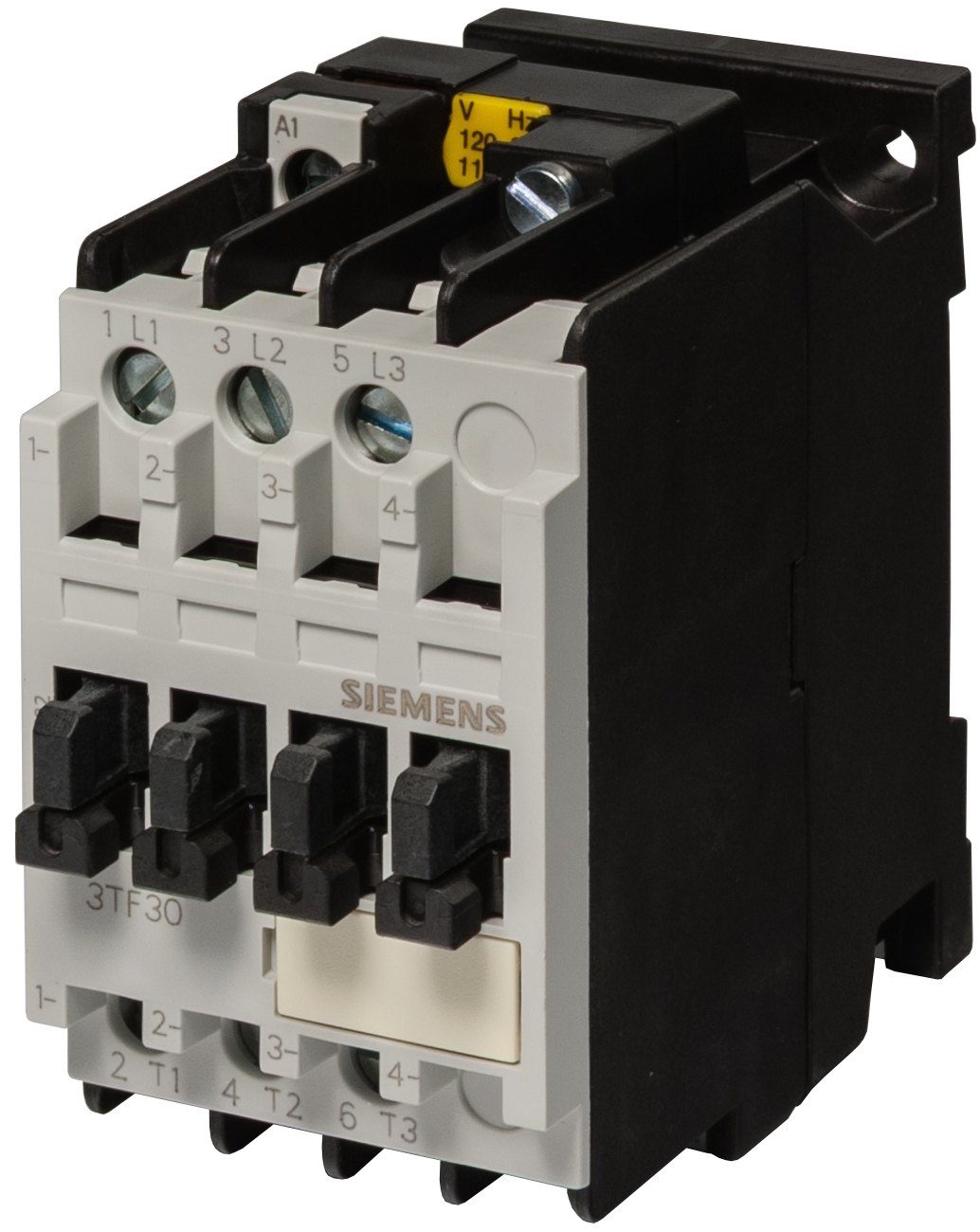

S0 | 18 | 9 | 22 | 3 | 5 | 3TF30 | ||
0 | 0 | 3TF3000-0A | ||||||
1 | 0 | 3TF3010-0A | ||||||
0 | 1 | |||||||
S0 | 20 | 12 | 22 | 3 | 7.5 | 3TF31 | ||
0 | 0 | 3TF3100-0A | ||||||
1 | 0 | |||||||
0 | 1 | 3TF3101-0A | ||||||

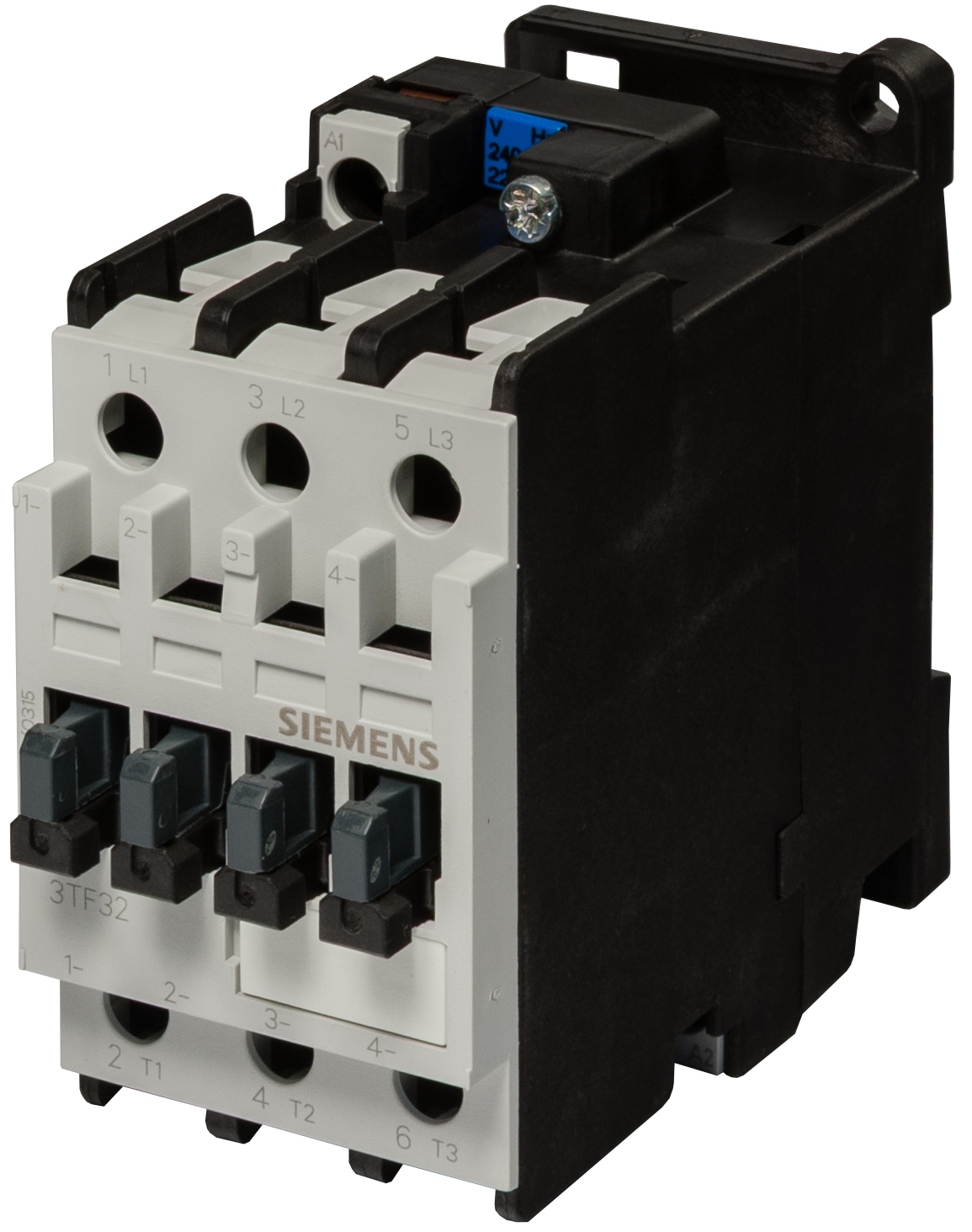

S1 | 35 | 17 | 40 | 5 | 10 | 3TF32 | ||
0 | 0 | 3TF3200-0A | ||||||
1 | 1 | |||||||

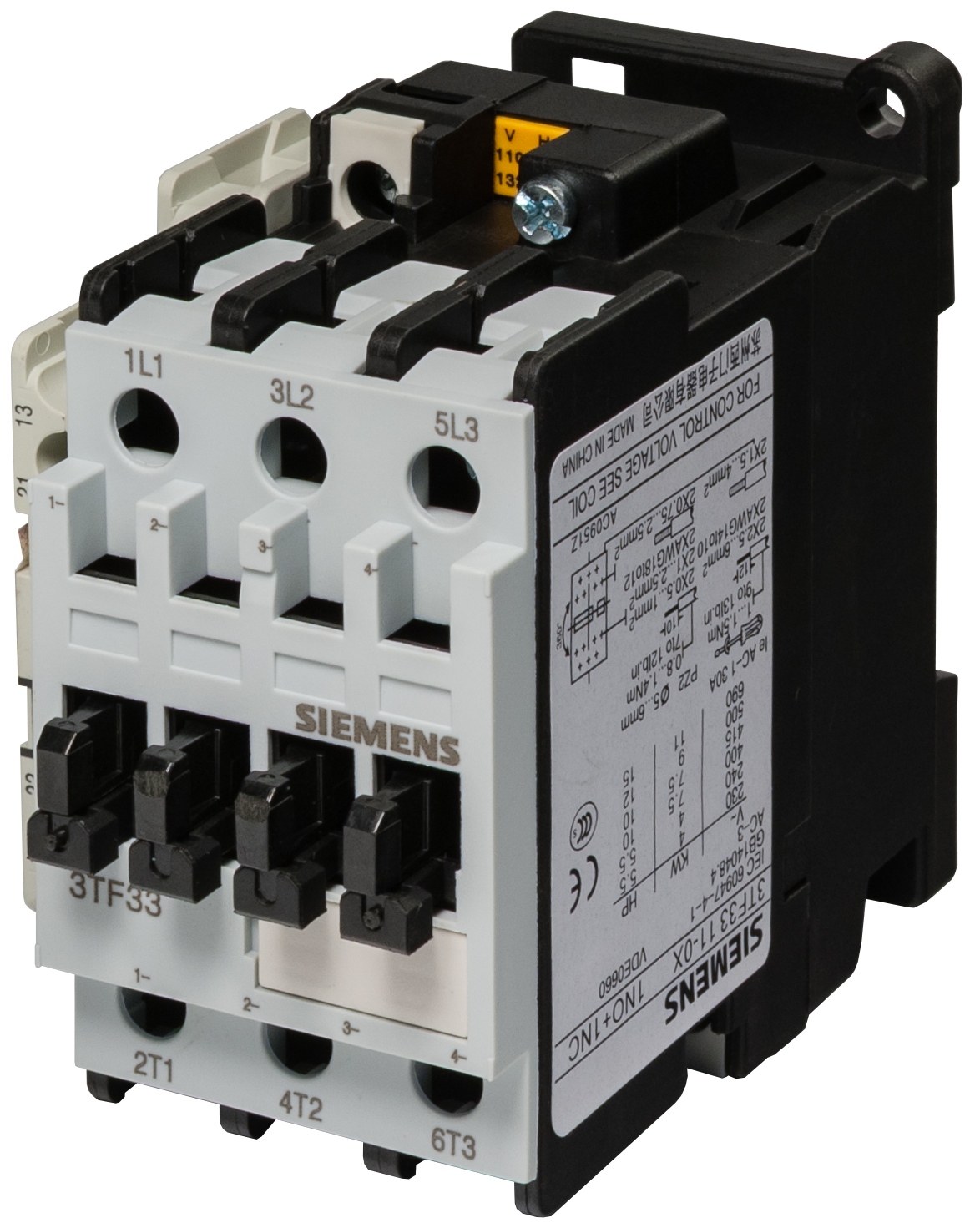

S1 | 35 | 25 | 40 | 7.5 | 15 | 3TF33 | ||
0 | 0 | 3TF3300-0A | ||||||
1 | 1 | 3TF3311-0A | ||||||
S2 | 45 | 32 | 50 | 10 | 25 | 3TF34 | ||
0 | 0 | 3TF3400-0A | ||||||
1 | 1 | 3TF3411-0A | ||||||
2 | 2 | 3TF3470-0A | ||||||
S2 | 50 | 40 | 60 | 15 | 25 | 3TF35 | ||
0 | 0 | 3TF3500-0A | ||||||
1 | 1 | 3TF3511-0A | ||||||
2 | 2 | 3TF3570-0A | ||||||
3TF3 3-Pole with DC Coil
Frame Size | Amp | Three phase | Auxiliary | Catalog No. | ||||
Ratings | HP Ratings | Contacts | ||||||
UL/CSA | AC3 | AC1 | 230V | 460V | NO | NC | ||
S0 | 18 | 9 | 22 | 3 | 5 | 3TF30 | ||
0 | 0 | 3TF3000-0B | ||||||
1 | 0 | 3TF3010-0B | ||||||
0 | 1 | 3TF3001-0B | ||||||
S0 | 20 | 12 | 22 | 3 | 7.5 | 3TF31 | ||
0 | 0 | 3TF3100-0B | ||||||
1 | 0 | 3TF3110-0B | ||||||
0 | 1 | 3TF3101-0B | ||||||
S1 | 35 | 17 | 40 | 5 | 10 | 3TF32 | ||
0 | 0 | 3TF3200-0B | ||||||
1 | 1 | 3TF3211-0B | ||||||
S1 | 35 | 25 | 40 | 7.5 | 15 | 3TF33 | ||
0 | 0 | 3TF3300-0B | ||||||
1 | 1 | 3TF3311-0B | ||||||
S2 | 45 | 32 | 50 | 10 | 25 | 3TF34 | ||
0 | 0 | 3TF3400-0B | ||||||
1 | 1 | 3TF3411-0B | ||||||
2 | 2 | 3TF3470-0B | ||||||
S2 | 50 | 40 | 60 | 15 | 25 | 3TF35 | ||
0 | 0 | 3TF3500-0B | ||||||
1 | 1 | 3TF3511-0B | ||||||
2 | 2 | 3TF3570-0B | ||||||
