SIEMENS - 3TF8 Motor Starters - Contactors
The type 3TF8 reversing contactor containsboth the forward and reverse contactors and interlocks in one compact housing simplifying thecomponent arrangement. Mechanincally interlocked,it reduces panel space by 50% over conventionalreversing contactors
Frame Size | Amp | Single Phase | Three Phase | Auxiliary | Catalog No. | ||||
Ratings | HP Ratings | HP Ratings | Contacts | ||||||
UL/CSA | AC3 | 230V | 460V | 500V | 600V | NO | NC | ||
S00 | 7 | 7 | 4 | 5 | 5 | 5 | - | - | 3TF81 |
1 | 0 | 3TF8131-0A | |||||||

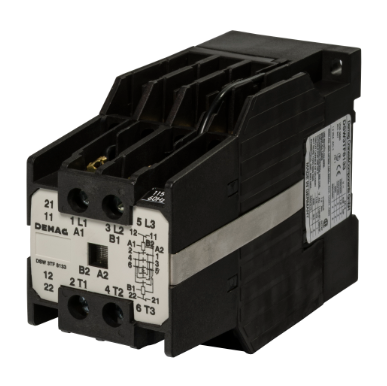

0 | 1 | 3TF8133-0A | |||||||
S0 | 9 | 9 | 2 | 3 | 3 | 3 | - | - | 3TF82 |

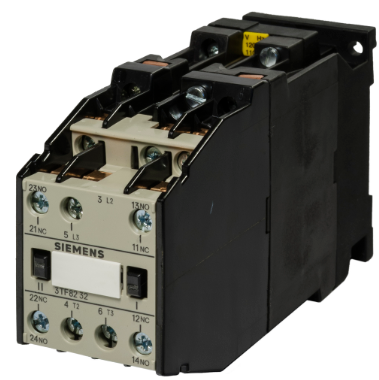

1 | 1 | 3TF8232-0A | |||||||
S0 | 12 | 18 | 3 | 5 | 5 | 5 | - | - | 3TF83 |
1 | 1 | 3TF8332-0A | |||||||
S2 | 32 | 45 | 10 | 20 | 20 | 20 | - | - | 3TF86 |
1 | 0 | 3TF8631-0A | |||||||

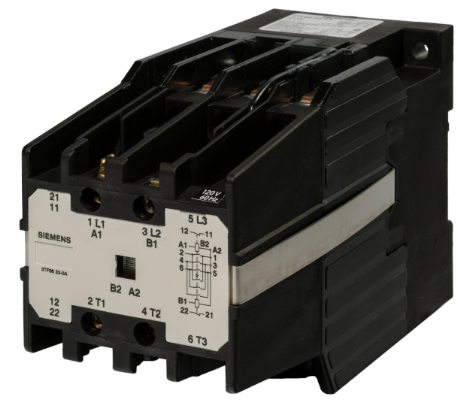

0 | 1 | 3TF8633-0A | |||||||
