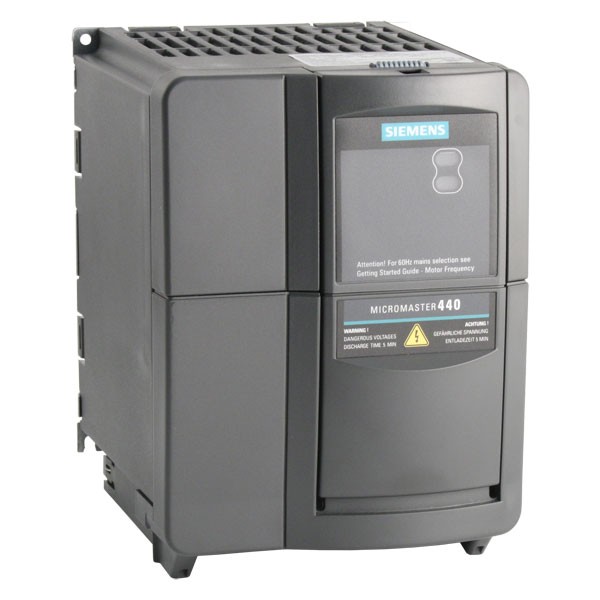

SIEMENS SIEMENS MICROMASTER 440 inverter is appropriate for a variety of variable-speed drive functions. Its elasticity provides for a wide spectrum of applications. These also comprise cranes and hoisting gear, high-bay warehouses, production machines for food, beverages and tobacco, packaging machines etc.; i.e. applications which require the frequency inverter to have a higher functionality and dynamic response than usual.
The inverter is specially characterized by its customer-oriented performance and ease-of-use. Its large mains voltage range enables it to be used all over the world.
Main characteristics
•Easy, guided start-up
• Modular construction allows maximum configuration flexibility
• Six programmable isolated digital inputs
• Two scaleable analog inputs (0 V to 10 V, 0 mA to 20 mA) can also be used as a 7th/8th digital input
• Two programmable analog outputs (0 mA to 20 mA)
• Three programmable relay outputs (30 V DC/5 A, resistive load; 250 V AC/2 A, inductive load)
• Low-noise motor operation thanks to high pulse frequencies, adjustable (observe derating if necessary)
• Protection for motor and inverter
Technical SPECIFICATION | SIEMENS MICROMASTER 440 | ||
Mains voltage and power ranges | CT (constant torque) | VT (variable torque) | |
200 V to 240 V 1 AC ±10 % | 0.12 kW to 3 kW | ||
200 V to 240 V 3 AC ±10 % | 0.12 kW to 45 kW | 5.5 kW to 55 kW | |
380 V to 480 V 3 AC ±10 % | 0.37 kW to 200 kW | 7.5 kW to 250 kW | |
500 V to 600 V 3 AC ±10 % | 0.75 kW to 75 kW | 1.5 kW to 90 kW | |
Input frequency | 47 Hz to 63 Hz | ||
Output frequency | in V/f mode | for inverter 0.12 kW to 75 kW | 0 Hz to 650 Hz (Due to legal restrictions a limitation to 550 Hz is under preparation) |
in vector mode | for inverter 90 kW to 200 kW | 0 Hz to 267 Hz | |
for inverter 90 kW to 200 kW | 0 Hz to 200 Hz | ||
Power factor | ≥ 0.95 | ||
Inverter efficiency | 0.12 kW to 75 kW: 96 % to 97 %; 90 kW to 200 kW: 97 % to 98 % (Further information is available on the Internet | ||
Overload capability | for inverter 0.12 kW to 75 kW | Overload current 1.5 x rated output current (i.e. 150 % overload capability) for 60 s, cycle time 300 s, and 2 x rated output current (i.e. 200 % overload capability) for 3 s, cycle time 300 s | |
CT mode | |||
for inverter 90 kW to 200 kW | Overload current 1.36 x rated output current (i.e. 136 % overload capability) for 57 s, cycle time 300 s, and 1.6 x rated output current (i.e. 160 % overload capability) for 3 s, cycle time 300 s | ||
Overload capability | for inverter 5.5 kW to 90 kW | Overload current 1.4 x rated output current (i.e. 140 % overload capability) for 3 s, and 1.1 x rated output current (i.e. 110 % overload capability) for 60 s, cycle time 300 s | |
VT mode | |||
for inverter 110 kW to 250 kW | Overload current 1.5 x rated output current (i.e. 150 % overload capability) for 1 s, and 1.1 x rated output current (i.e. 110 % overload capability) for 59 s, cycle time 300 s | ||
PRODUCTS DETAILS
MLFB NUMBER | PRODUCT DETAILS |
6SE64402AB112AA1 | SIEMENS MICROMASTER 440 WITH BUILT-IN CLASS A FILTER 1AC 200-240 V +10/-10% 47-63 HZ CONSTANT TORQUE POWER 0.12 KW OVERLOAD 150% 60 S, 200% 3 S SQUARED TORQUE POWER 0.12 KW 173 X 73 X 149 (H X W X D) |
6SE64402AB125AA1 | SIEMENS MICROMASTER 440 WITH BUILT-IN CLASS A FILTER 1AC 200-240V +10/-10% 47-63 HZ CONSTANT TORQUE POWER 0.25 KW OVERLOAD 150% 60 S, 200% 3 S SQUARED TORQUE POWER 0.25 KW 173 X 73 X 149 (H X W X D) |
6SE64402AB137AA1 | SIEMENS MICROMASTER 440 WITH BUILT-IN CLASS A FILTER 1AC 200-240 V +10/-10% 47-63 HZ CONSTANT TORQUE POWER 0.37 KW OVERLOAD 150% 60 S, 200% 3 S SQUARED TORQUE POWER 0.37 KW 173 X 73 X 149 (H X W X D) |
6SE64402AB155AA1 | SIEMENS MICROMASTER 440 WITH BUILT-IN CLASS A FILTER 1AC 200-240 V +10/-10% 47-63 HZ CONSTANT TORQUE POWER 0.55 KW OVERLOAD 150% 60 S, 200% 3 S SQUARED TORQUE POWER 0.55 KW 173 X 73 X 149 (H X W X D) |
6SE64402AB175AA1 | SIEMENS MICROMASTER 440 WITH BUILT-IN CLASS A FILTER 1AC 200-240 V +10/-10% 47-63 HZ CONSTANT TORQUE POWER 0.75 KW OVERLOAD 150% 60 S, 200% 3 S SQUARED TORQUE POWER 0.75 KW 173 X 73 X 149 (H X W X D) |
6SE64402AB211BA1 | SIEMENS MICROMASTER 440 WITH BUILT-IN CLASS A FILTER 1AC 200-240 V +10/-10% 47-63 HZ CONSTANT TORQUE POWER 1.1 KW OVERLOAD 150% 60 S, 200% 3 S SQUARED TORQUE POWER 1.1 KW 202 X 149 X 172 (H X W X D) |
6SE64402AB215BA1 | SIEMENS MICROMASTER 440 WITH BUILT-IN CLASS A FILTER 1AC 200-240 V +10/-10% 47-63 HZ CONSTANT TORQUE POWER 1.5 KW OVERLOAD 150% 60 S, 200% 3 S SQUARED TORQUE POWER 1.5 KW 202 X 149 X 172 (H X W X D) |
6SE64402AB222BA1 | SIEMENS MICROMASTER 440 WITH BUILT-IN CLASS A FILTER 1AC 200-240 V +10/-10% 47-63 HZ CONSTANT TORQUE POWER 2.2 KW OVERLOAD 150% 60 S, 200% 3 S SQUARED TORQUE POWER 2.2 KW 202 X 149 X 172 (H X W X D) |
6SE64402AB230CA1 | SIEMENS MICROMASTER 440 WITH BUILT-IN CLASS A FILTER 1AC 200-240V +10/-10% 47-63 HZ CONSTANT TORQUE POWER 3 KW OVERLOAD 150% 60 S, 200% 3 S SQUARED TORQUE POWER 3 KW 245 X 185 X 195 (H X W X D) |
6SE64402AC230CA1 | SIEMENS MICROMASTER 440 WITH BUILT-IN CLASS A FILTER 3AC 200-240 V +10/-10% 47-63 HZ CONSTANT TORQUE POWER 3 KW OVERLOAD 150% 60 S, 200% 3 S SQUARED TORQUE POWER 4 KW 245 X 185 X 195 (H X W X D) |
6SE64402AC240CA1 | SIEMENS MICROMASTER 440 WITH BUILT-IN CLASS A FILTER 3AC 200-240 V +10/-10% 47-63 HZ CONSTANT TORQUE POWER 4 KW OVERLOAD 150% 60 S, 200% 3 S SQUARED TORQUE POWER 5.5 KW 245 X 185 X 195 (H X W X D) |
6SE64402AC255CA1 | SIEMENS MICROMASTER 440 WITH BUILT-IN CLASS A FILTER 3AC 200-240 V +10/-10% 47-63 HZ CONSTANT TORQUE POWER 5.5 KW OVERLOAD 150% 60 S, 200% 3 S SQUARED TORQUE POWER 7.5 KW 245 X 185 X 195 (H X W X D) |
6SE64402AD222BA1 | SIEMENS MICROMASTER 440 WITH BUILT-IN CLASS A FILTER 3AC 380-480 V +10/-10% 47-63 HZ CONSTANT TORQUE POWER 2.2 KW OVERLOAD 150% 60 S, 200% 3 S SQUARED TORQUE POWER 2.2 KW 202 X 149 X 172 (H X W X D) |
6SE64402AD230BA1 | SIEMENS MICROMASTER 440 WITH BUILT-IN CLASS A FILTER 3AC 380-480 V +10/-10% 47-63 HZ CONSTANT TORQUE POWER 3 KW OVERLOAD 150% 60 S, 200% 3 S SQUARED TORQUE POWER 3 KW 202 X 149 X 172 (H X W X D) |
6SE64402AD240BA1 | SIEMENS MICROMASTER 440 WITH BUILT-IN CLASS A FILTER 3AC 380-480 V +10/-10% 47-63 HZ CONSTANT TORQUE POWER 4 KW OVERLOAD 150% 60 S, 200% 3 S SQUARED TORQUE POWER 4 KW 202 X 149 X 172 (H X W X D) |
6SE64402AD255CA1 | SIEMENS MICROMASTER 440 WITH BUILT-IN CLASS A FILTER 3AC 380-480 V +10/-10% 47-63 HZ CONSTANT TORQUE POWER 5.5 KW OVERLOAD 150% 60 S, 200% 3 S SQUARED TORQUE POWER 7.5 KW 245 X 185 X 195 (H X W X D) |
6SE64402AD275CA1 | SIEMENS MICROMASTER 440 WITH BUILT-IN CLASS A FILTER 3AC 380-480 V +10/-10% 47-63 HZ CONSTANT TORQUE POWER 7.5 KW OVERLOAD 150% 60 S, 200% 3 S SQUARED TORQUE POWER 11 KW 245 X 185 X 195 (H X W X D) |
6SE64402AD311CA1 | SIEMENS MICROMASTER 440 WITH BUILT-IN CLASS A FILTER 3AC 380-480 V +10/-10% 47-63 HZ CONSTANT TORQUE POWER 11 KW OVERLOAD 150% 60 S, 200% 3 S SQUARED TORQUE POWER 15 KW 245 X 185 X 195 (H X W X D) |
6SE64402AD315DA1 | SIEMENS MICROMASTER 440 WITH BUILT-IN CLASS A FILTER 3AC 380-480 V +10/-10% 47-63 HZ CONSTANT TORQUE POWER 15 KW OVERLOAD 150% 60 S, 200% 3 S SQUARED TORQUE POWER 18.5 KW 520 X 275 X 245 (H X W X D) |
6SE64402AD318DA1 | SIEMENS MICROMASTER 440 WITH BUILT-IN CLASS A FILTER 3AC 380-480 V +10/-10% 47-63 HZ CONSTANT TORQUE POWER 18.5 KW OVERLOAD 150% 60 S, 200% 3 S SQUARED TORQUE POWER 22 KW 520 X 275 X 245 (H X W X D) |
6SE64402AD322DA1 | SIEMENS MICROMASTER 440 WITH BUILT-IN CLASS A FILTER 3AC 380-480 V +10/-10% 47-63 HZ CONSTANT TORQUE POWER 22 KW OVERLOAD 150% 60 S, 200% 3 S SQUARED TORQUE POWER 30 KW 520 X 275 X 245 (H X W X D) |
6SE64402AD330EA1 | SIEMENS MICROMASTER 440 WITH BUILT-IN CLASS A FILTER 3AC 380-480 V +10/-10% 47-63 HZ CONSTANT TORQUE POWER 30 KW OVERLOAD 150% 60 S, 200% 3 S SQUARED TORQUE POWER 37 KW 650 X 275 X 245 (H X W X D) |
6SE64402AD337EA1 | SIEMENS MICROMASTER 440 WITH BUILT-IN CLASS A FILTER 3AC 380-480 V +10/-10% 47-63 HZ CONSTANT TORQUE POWER 37 KW OVERLOAD 150% 60 S, 200% 3 S SQUARED TORQUE POWER 45 KW 650 X 275 X 245 (H X W X D) |
6SE64402AD345FA1 | SIEMENS MICROMASTER 440 WITH BUILT-IN CLASS A FILTER 3AC 380-480 V +10/-10% 47-63 HZ CONSTANT TORQUE POWER 45 KW OVERLOAD 150% 60 S, 200% 3 S SQUARED TORQUE POWER 55 KW 1150 X 350 X 320 (H X W X D) |
