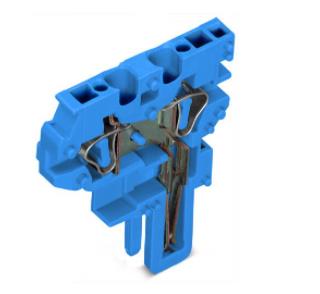

WAGO 769-505/000-006 X-COM Center module for 2-conductor female connector; CAGE CLAMP; 4 mm²; Pin spacing 5 mm; 1-pole; coding finger; 4,00 mm²; blue

WAGO 3-conductor ground terminal block; 1.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 1,50 mm²; green-yellow 279-687

Product Name : WAGO 769-505/000-006 X-COM Center module for 2-conductor female connector; CAGE CLAMP; 4 mm²; Pin spacing 5 mm; 1-pole; coding finger; 4,00 mm²; blue

Directions

Electrical data

Ratings per IEC/EN

Ratings per IEC/EN 61984

Nominal voltage (III/3) 500V

Rated impulse voltage (III/3) 6kV

Rated current 32A

Legend (ratings) (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection data

Total number of connection points 2

Total number of potentials 1

Connection 1

Connection technology CAGE CLAMP®

Actuation type Operating tool

Connectable conductor materials Copper

Nominal cross-section 4 mm² / 12 AWG

Solid conductor 0.08 … 4 mm² / 28 … 12 AWG

Fine-stranded conductor 0.08 … 4 mm² / 28 … 12 AWG

Strip length 8 … 9 mm / 0.31 … 0.35 inch

Pole number 1

Wiring direction Front-entry wiring
