Home > Products > WAGO > WAGO 2000-2201 Double-deck terminal block; Through/through terminal block; L/L; without marker carrier; for DIN-rail 35 x 15 and 35 x 7.5; 1,00 mm²; gray

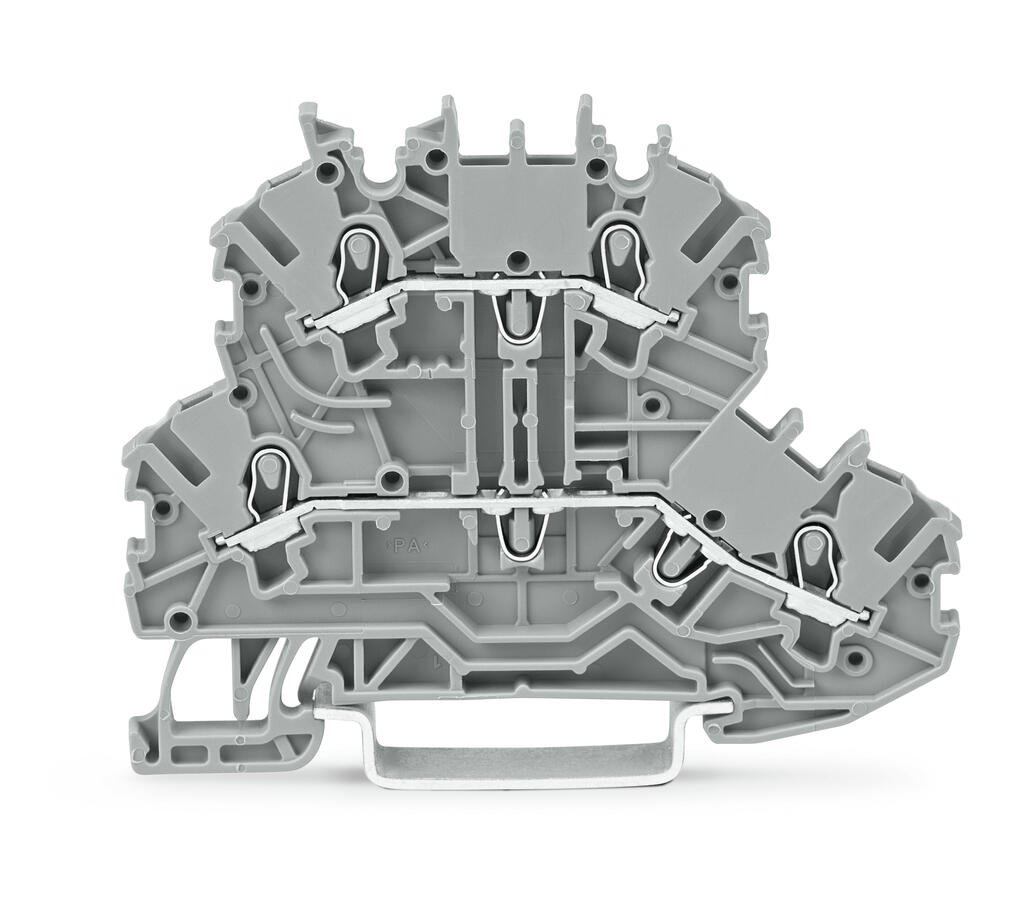

WAGO 2000-2201 Double-deck terminal block; Through/through terminal block; L/L; without marker carrier; for DIN-rail 35 x 15 and 35 x 7.5; 1,00 mm²; gray

WAGO 3-conductor ground terminal block; 1.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 1,50 mm²; green-yellow 279-687

Product Name : WAGO 2000-2201 Double-deck terminal block; Through/through terminal block; L/L; without marker carrier; for DIN-rail 35 x 15 and 35 x 7.5; 1,00 mm²; gray

Directions

Ratings per UL

Approvals perUL 1059

Rated voltage UL (Use Group B)300V

Rated current UL (Use Group B)15A

Rated voltage UL (Use Group C)300V

Rated current UL (Use Group C)15A

Ratings per CSA

Approvals perC22.2 No 158

Rated voltage CSA (Use Group B)600V

Rated current CSA (Use Group B)10A

Rated voltage CSA (Use Group C)600V

Rated current CSA (Use Group C)10A

Ex information

Ratings perATEX: PTB 11 ATEX 1041 U / IECEx: PTB 11.0093U (Ex eb IIC Gb)

Rated voltage EN (Ex e II)350V

Rated current (Ex e II)13A

Rated current (Ex e II) with jumper12A

Ratings (note)See Downloads – Documentation – Additional Information: Technical explanations

Connection data

Total number of connection points4

Total number of potentials2

Number of levels2

Number of jumper slots4

Connection 1

Connection technologyPush-in CAGE CLAMP®

Number of connection points2

Actuation typePush-in

Operating tool

Connectable conductor materialsCopper

Nominal cross-section1 mm²
