SIEMENS - 3TF6 Motor Starters - Contactors
The type 3TF68 and 3TF69 vacuum contactors are excellent for AC4 applications and they include contact wear indicators as standard
3TF6 3-Pole with AC Coil
Frame Size | Amp | Single Phase | Three Phase | Auxiliary | Catalog No. | |||||
Ratings | HP Ratings | HP Ratings | Contacts | |||||||
UL/CSA | AC3 | AC1 | 200V | 230V | 460V | 575V | NO | NC | ||
14 | - | 630 | - | 200 | 250 | 500 | 600 | - | - | 3TF6833 |
3 | 3 | 3TF6833-1D | ||||||||
3 | 3 | 3TF6833-8D | ||||||||
3 | 3 | 3TF6833-1Q | ||||||||
3 | 3 | 3TF6833-8Q | ||||||||

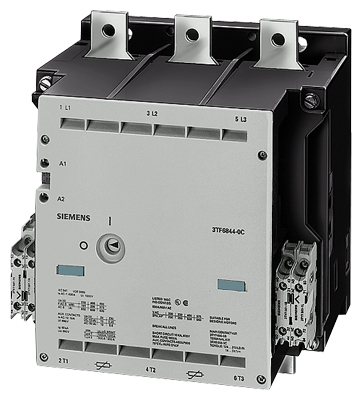

14 | 650 | 30 | - | 200 | 250 | 500 | 650 | - | - | 3TF6844 |
4 | 4 | 3TF6844-0C | ||||||||
4 | 4 | 3TF6844-8C | ||||||||
14 | - | 820 | - | 290 | 350 | 700 | 860 | - | - | 3TF6933 |
3 | 3 | 3TF6933-1D | ||||||||
3 | 3 | 3TF6933-8D | ||||||||
3 | 3 | 3TF6933-1Q | ||||||||
3 | 3 | 3TF6933-8Q | ||||||||

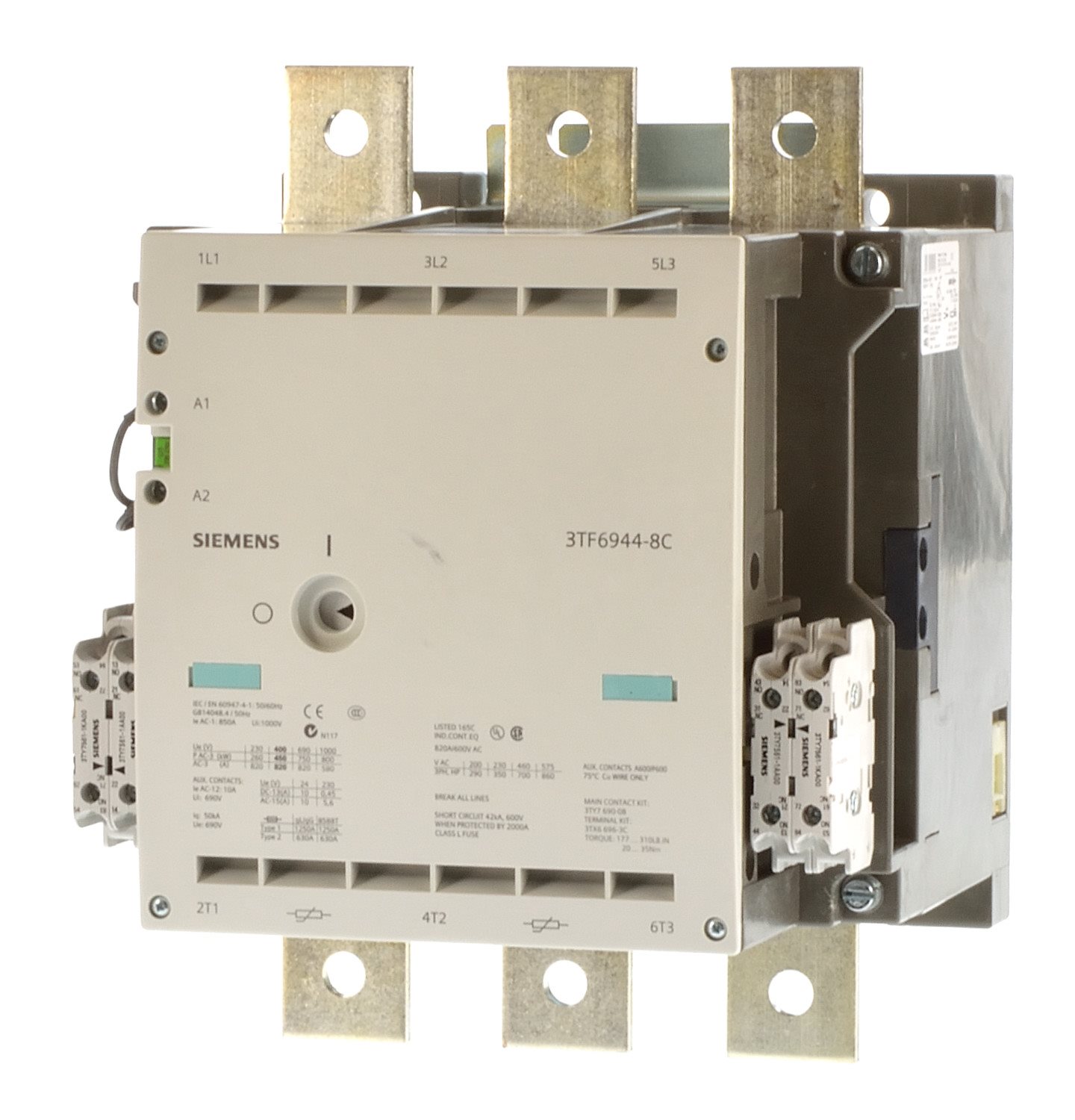

14 | 820 | 820 | - | - | - | - | - | - | - | 3TF6944 |
4 | 4 | 3TF6944-0C | ||||||||
4 | 4 | 3TF6944-8C | ||||||||
