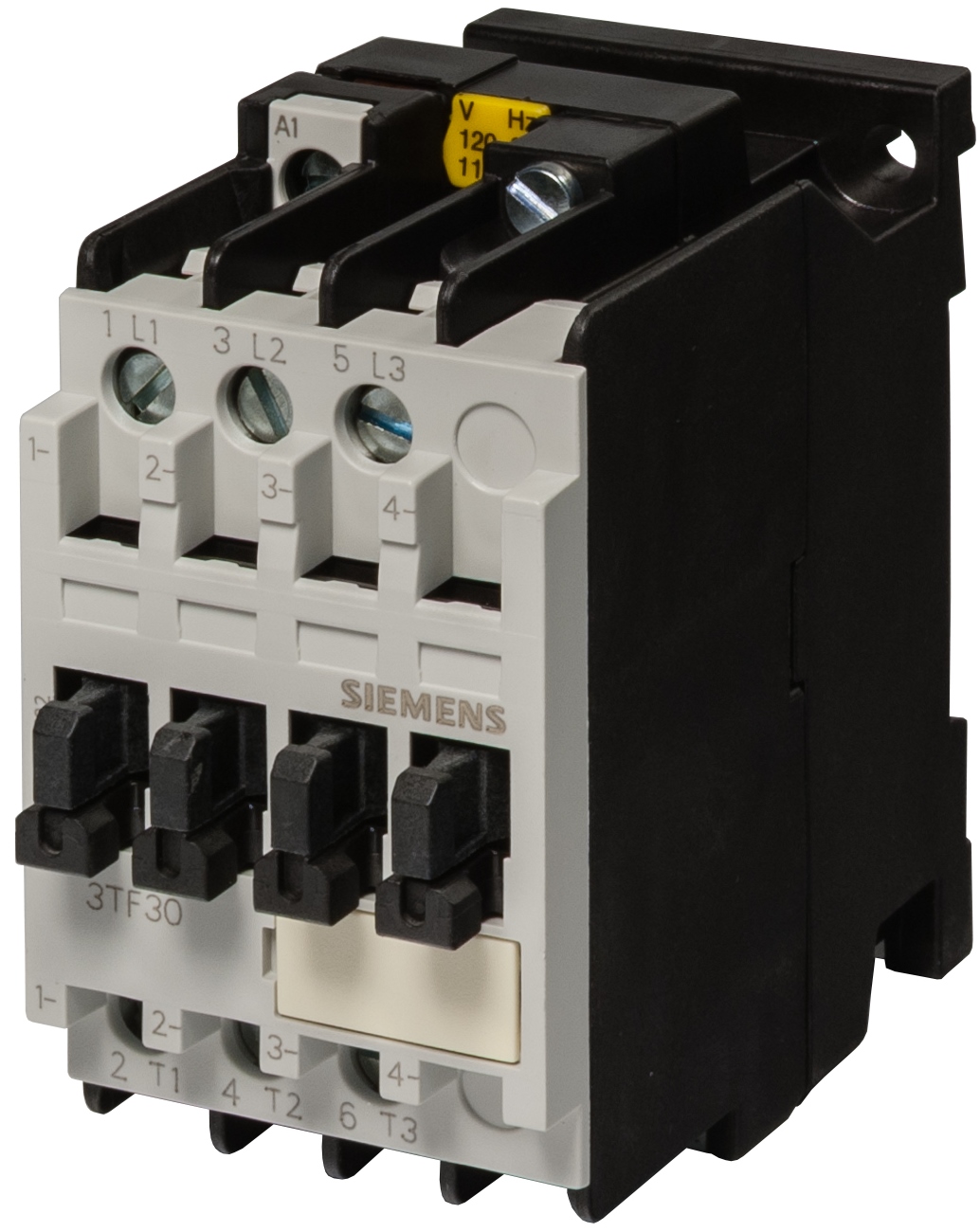

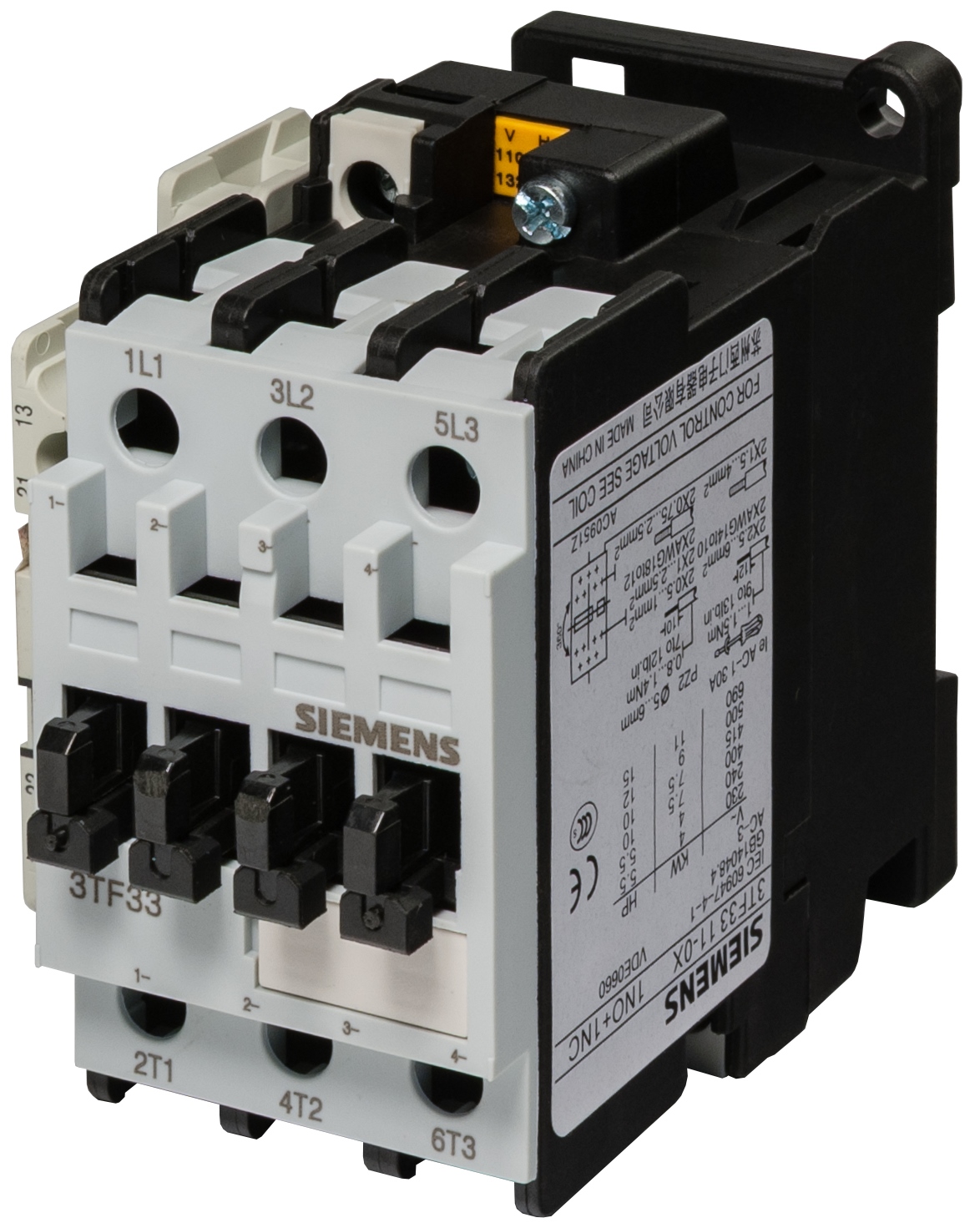

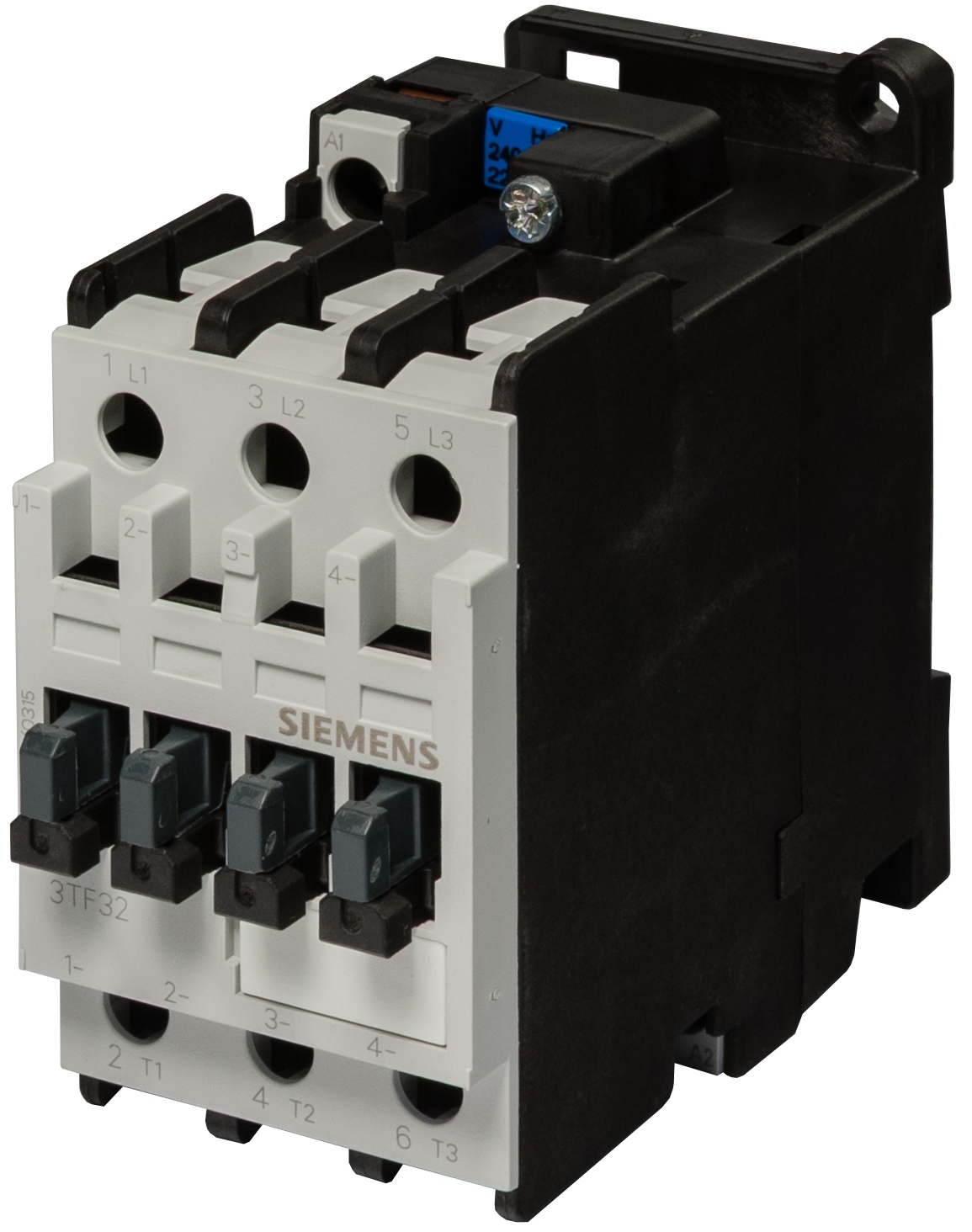

SIEMENS - 3TF4 Motor Starters - Contactors
Siemens has designed the full 3TF4 line to meet or exceed all worldwide standards and conventions. The 3TF4 series also includes a full assortment of accessories assuring you will always have the right product for your application.
3TF4 3-Pole with AC Coil
Frame Size | Amp | Single Phase | Three Phase | Auxiliary | Catalog No. | |||||
Ratings | HP Ratings | HP Ratings | Contacts | |||||||
UL/CSA | AC3 | AC1 | 115V | 230V | 230V | 460V | NO | NC | ||
S0 | 20 | 9 | - | 0.5 | 1.5 | 3 | 5 | - | - | 3TF40 |
0 | 1 | 3TF4001-0A | ||||||||
1 | 0 | 3TF4010-0A | ||||||||
1 | 1 | 3TF4011-0A | ||||||||
2 | 2 | 3TF4022-0A | ||||||||
S0 | 20 | 12 | - | 1 | 2 | 5 | 10 | - | - | 3TF41 |
1 | 0 | 3TF4110-0A | ||||||||
0 | 1 | 3TF4101-0A | ||||||||
1 | 1 | 3TF4111-0A | ||||||||
2 | 2 | 3TF4122-0A | ||||||||
S1 | 30 | 16 | - | 1 | 3 | 5 | 10 | - | - | 3TF42 |
1 | 0 | 3TF4210-0A | ||||||||
1 | 1 | 3TF4211-0A | ||||||||
2 | 0 | 3TF4220-0A | ||||||||
2 | 2 | 3TF4222-0A | ||||||||
S1 | 30 | 22 | - | 2 | 3 | 7.5 | 15 | - | - | 3TF43 |
1 | 0 | 3TF4310-0A | ||||||||
1 | 1 | 3TF4311-0A | ||||||||
2 | 0 | 3TF4320-0A | ||||||||
2 | 2 | 3TF4322-0A | ||||||||
S2 | 55 | 32 | - | 3 | 5 | 10 | 25 | - | - | 3TF44 |
1 | 1 | 3TF4411-0A | ||||||||
2 | 2 | 3TF4422-0A | ||||||||
S2 | 55 | 38 | - | 3 | 7.5 | 15 | 25 | - | - | 3TF45 |
1 | 1 | 3TF4511-0A | ||||||||
2 | 2 | 3TF4522-0A | ||||||||
S3 | 80 | 45 | - | 5 | 10 | 20 | 40 | - | - | 3TF46 |
1 | 1 | 3TF4611-0A | ||||||||
2 | 2 | 3TF4622-0A | ||||||||
4 | 4 | 3TF4644-0A | ||||||||
S3 | 80 | 63 | - | 5 | 10 | 25 | 50 | - | - | 3TF47 |
1 | 1 | 3TF4711-0A | ||||||||
2 | 2 | 3TF4722-0A | ||||||||
4 | 4 | 3TF4744-0A | ||||||||
S4 | 100 | 75 | - | 7.5 | 15 | 30 | 60 | - | - | 3TF48 |
1 | 1 | 3TF4811-0A | ||||||||
2 | 2 | 3TF4822-0A | ||||||||
4 | 4 | 3TF4844-0A | ||||||||
S4 | 105 | 85 | - | - | - | 40 | 75 | - | - | 3TF49 |
1 | 1 | 3TF4911-0A | ||||||||
2 | 2 | 3TF4922-0A | ||||||||
4 | 4 | 3TF4944-0A | ||||||||
3TF4 3-Pole with DC Coil
Frame Size | Amp | Single Phase | Three Phase | Auxiliary | Catalog No. | |||||
Ratings | HP Ratings | HP Ratings | Contacts | |||||||
UL/CSA | AC3 | AC1 | 115V | 230V | 230V | 460V | NO | NC | ||
S0 | 20 | 9 | - | 0.5 | 1.5 | 3 | 5 | - | - | 3TF40 |
0 | 1 | 3TF4001-0B | ||||||||
1 | 0 | 3TF4010-0B | ||||||||
1 | 1 | 3TF4011-0B | ||||||||
2 | 2 | 3TF4022-0B | ||||||||
S0 | 20 | 12 | - | 1 | 2 | 5 | 10 | - | - | 3TF41 |
1 | 0 | 3TF4110-0B | ||||||||
0 | 1 | 3TF4101-0B | ||||||||
1 | 1 | 3TF4111-0B | ||||||||
2 | 2 | 3TF4122-0B | ||||||||
S1 | 30 | 16 | - | 1 | 3 | 5 | 10 | - | - | 3TF42 |
1 | 0 | 3TF4210-0B | ||||||||
1 | 1 | 3TF4211-0B | ||||||||
2 | 0 | 3TF4220-0B | ||||||||
2 | 2 | 3TF4222-0B | ||||||||
S1 | 30 | 22 | - | 2 | 3 | 7.5 | 15 | - | - | 3TF43 |
1 | 0 | 3TF4310-0B | ||||||||
1 | 1 | 3TF4311-0B | ||||||||
2 | 0 | 3TF4320-0B | ||||||||
2 | 2 | 3TF4322-0B | ||||||||
S2 | 55 | 32 | - | 3 | 5 | 10 | 25 | - | - | 3TF44 |
1 | 1 | 3TF4411-0B | ||||||||
2 | 2 | 3TF4422-0B | ||||||||
S2 | 55 | 38 | - | 3 | 7.5 | 15 | 25 | - | - | 3TF45 |
1 | 1 | 3TF4511-0B | ||||||||
2 | 2 | 3TF4522-0B | ||||||||
S3 | 80 | 45 | - | 5 | 10 | 20 | 40 | - | - | 3TF46 |
2 | 2 | 3TF4622-0B | ||||||||
4 | 4 | 3TF4644-0B | ||||||||
S3 | 80 | 63 | - | 5 | 10 | 25 | 50 | - | - | 3TF47 |
2 | 2 | 3TF4722-0B | ||||||||
4 | 4 | 3TF4744-0B | ||||||||
